Summary of Contents for Sentera Controls FIMX8
- Page 1 FIMX8 AIR FILTER MONITOR Mounting and operating instructions...
-
Page 2: Table Of Contents
PRODUCT DESCRIPTION ARTICLE CODES INTENDED AREA OF USE TECHNICAL DATA STANDARDS OPERATIONAL DIAGRAM MOUNTING INSTRUCTIONS IN STEPS VERIFICATION OF INSTALLATION OPERATING INSTRUCTIONS TRANSPORT AND STORAGE WARRANTY AND RESTRICTIONS MAINTENANCE MIW-FIMX8-EN-000 - 06 / 09 / 2023 2 - 90 www.sentera.eu... -
Page 3: Safety And Precautions
In case there are any questions that are not answered, please contact your technical support or consult a professional. MIW-FIMX8-EN-000 - 06 / 09 / 2023 3 - 90 www.sentera.eu... -
Page 4: Product Description

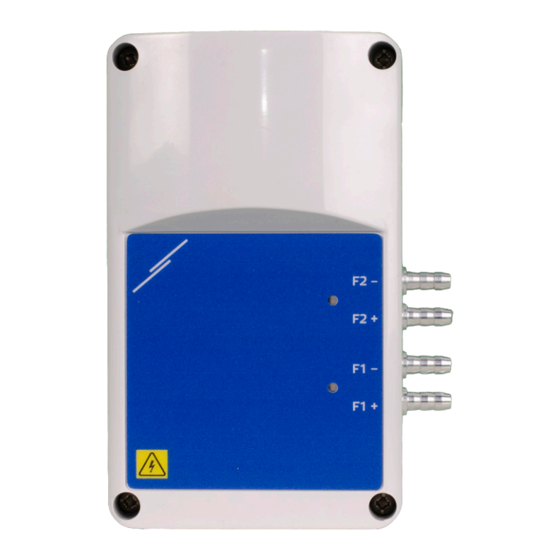

AIR FILTER MONITOR PRODUCT DESCRIPTION FIMX8 are filter monitors for observation of air filters in HVAC systems. Their purpose is to provide information on filter status and notify on the level of clogging. They can be equipped with one or two differential pressure sensors to measure the pressure drop on both sides of the filter. -
Page 5: Operational Diagram
Attach the enclosure to the surface with suitable fasteners, taking into account the mounting dimensions in Fig. 1 and the correct mounting position shown in Fig. 2 below. MIW-FIMX8-EN-000 - 06 / 09 / 2023 5 - 90 www.sentera.eu back to the table of contents... - Page 6 Application: Measuring differential pressure [Pa] or volume flow [m³/h] using PSET-PVC SenteraWeb Insert the power cord in the power socket. Activate the power supply. MIW-FIMX8-EN-000 - 06 / 09 / 2023 6 - 90 www.sentera.eu back to the table of contents...
-
Page 7: Verification Of Installation
Connect the internet gateway to the internet via Wi-fi or via a LAN cable. If you want to connect the FIMX8 to your internet router via cable, you can do so via the Ethernet connection, using a standard network cable - Fig. 4. -
Page 8: Operating Instructions
Disconnect the nozzles and make sure they are not clogged. Write “1” in holding register 20 to calibrate sensor 1. If your product version has two sensors, to calibrate the second one write ‘1’ in Holding register 30. MIW-FIMX8-EN-000 - 06 / 09 / 2023 8 - 90 www.sentera.eu... -
Page 9: Transport And Storage
In case of heavy pollution, clean with a non-aggressive product. In these circumstances the unit should be disconnected from the supply. Pay attention that no fluids enter the unit. Only reconnect it to the supply when it is completely dry. MIW-FIMX8-EN-000 - 06 / 09 / 2023 9 - 90 www.sentera.eu...
