Summary of Contents for Laney DRUMHUB DH40

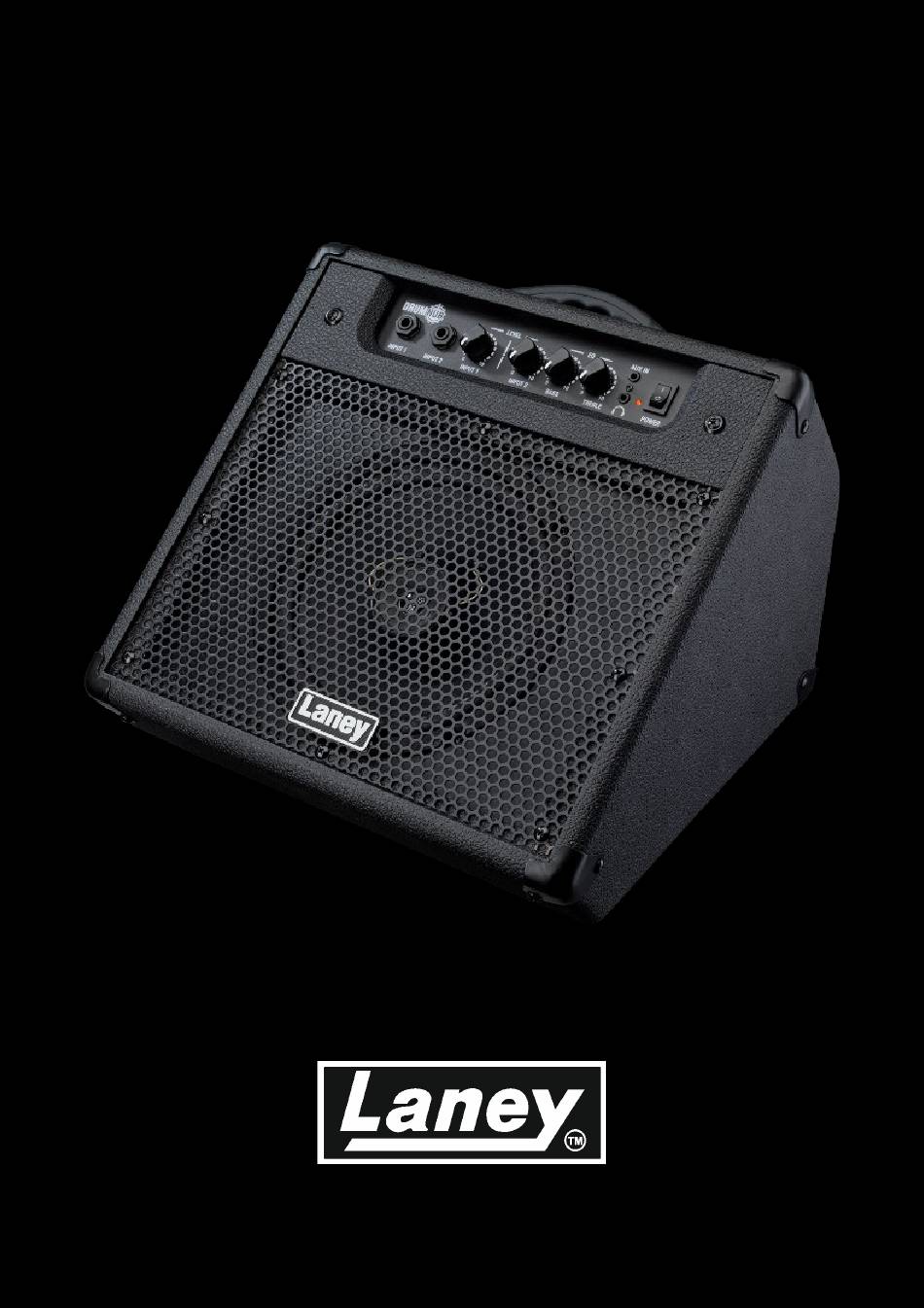

- Page 1 DH40 USER MANUAL...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................2 CONTROLS ................................. 3 DH40 FRONT PANEL ............................ 3 DH40 REAR PANEL ............................4 CONNECTIONS ..............................5 SPECIFICATIONS ............................... 6 DIMENSIONS ..............................7 SAFETY AND WARNINGS ..........................8... -
Page 3: Introduction
INTRODUCTION The DRUMHUB DH40 is designed to deliver a wide variety of electronic percussion sounds at home, in the classroom or wherever you choose to use it. Its small footprint, hard hitting output and multiple inputs make it perfect for use in the bedroom or rehearsal. -
Page 4: Controls
CONTROLS DH40 FRONT PANEL • INPUT 1 JACK o Connect an external electronic drum/sound module. Uses 6.3mm jack • INPUT 2 JACK o Connect an external electronic drum/sound module. Uses 6.3mm jack • INPUT 1 LEVEL o Adjust the volume of the device connected to input 1 •... -
Page 5: Dh40 Rear Panel
DH40 REAR PANEL • POWER IN o Included power supply runs universally at 100-240V~. Warning: Only connect the provided 15V 42W power supply to the DC inlet. -
Page 6: Connections
CONNECTIONS The DH40 can be connected to one or two separate drum modules as well as an aux in for backing tracks. Headphones can also be connected to listen to the output. Below displays how these should be connected to the DH40: Figure 1 DH40 connected to phone, headphones and two separate inputs... -
Page 7: Specifications
SPECIFICATIONS Model DH40 Type Electronic Drum Monitor Amplifier Power Controls Input 1 Volume, Input 2 Volume, Bass, Treble Inputs Channel 1, 6.3mm (1/4") Mono Input Jack Channel 2, 6.3mm, (1/4") Mono Input Jack 3.5mm Stereo Aux in Jack Power Supply Regulated 15V 2.8A 42W DC PSU Included: Centre Positive, 2.1 x 5.5 x 12mm connector type Typical Power Consumption... -
Page 8: Dimensions
DIMENSIONS (in mm) -
Page 9: Safety And Warnings
1) Unpacking: On unpacking your product please check carefully for any signs of damage that may have occurred whilst in transit from the Laney factory to your dealer. In the unlikely event that there has been damage, please re-pack your unit in its original carton and consult your dealer. - Page 10 1) This device may not cause harmful interference 2) This device must accept any interference received, that may cause undesired operation. Warning: Changes or modification to the equipment not approved by Laney can void the user's authority to use the equipment.
- Page 11 LANEY ELECTRONICS LTD. STEELPARK ROAD, COOMBSWOOD BUSINESS PARK WEST, HALESOWEN, B62 8HD. UK FOR THE LATEST INFORMATION PLEASE VISIT WWW.LANEY.CO.UK IN THE INTEREST OF CONTINUED DEVELOPMENT, LANEY RESERVES THE RIGHT TO AMEND PRODUCT SPECIFICATION WITHOUT PRIOR NOTIFICATION. V0.2...
