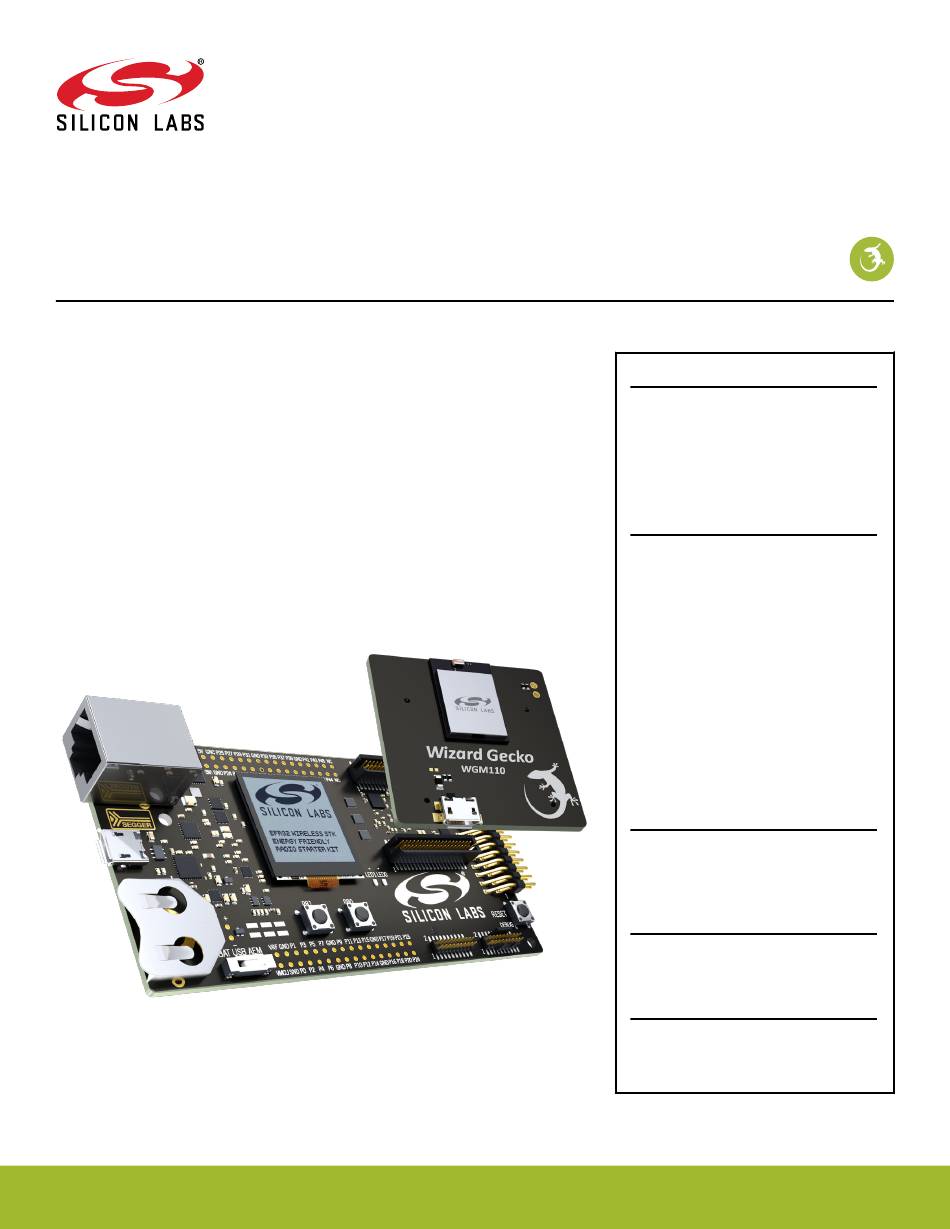

UG172: WGM110 Wizard Gecko Module
Wireless Starter Kit User's Guide
A Wireless Starter Kit with the BRD4320A Radio Board is an ex-
cellent starting point to get familiar with the WGM110 Wizard
Gecko Wi-Fi® Module It also provides the necessary tools for de-
veloping a Silicon Labs wireless application.
BRD4320A is a plug-in board for the Wireless Starter Kit Mainboard. It contains the
WGM110 Wi-Fi Module, a USB Micro-B connector and a MicroSD card slot.
The Wireless Starter Kit Mainboard contains an on-board J-Link debugger with a Packet
Trace Interface and a virtual COM port, enabling application development and debugging
the attached radio board as well as external hardware. The mainboard also contains
sensors and peripherals for easy demonstration of some of the WGM110's many capa-
bilities.
This document describes how to use the BRD4320A Radio Board together with a Wire-
less Starter Kit Mainboard.
silabs.com | Building a more connected world.
BRD4320A RADIO BOARD FEATURES
• WGM110 Wizard Gecko Wi-Fi Module
with 1 MB Flash and 128 kB RAM, with
on-board chip antenna, RF match.
• USB Micro-B connector offers device
mode support.
• MicroSD card slot.
WIRELESS STK MAINBOARD FEATURES
• Advanced Energy Monitor
• Packet Trace Interface
• Virtual COM Port
• SEGGER J-Link on-board debugger
• External device debugging
• Ethernet and USB connectivity
• Silicon Labs Si7021 Relative Humidity and
Temperature sensor
• Low Power 128x128 pixel Memory LCD
• User LEDs / Pushbuttons
• 20-pin 2.54 mm EXP header
• Breakout pads for Wi-Fi Module I/O
• CR2032 coin cell battery support
EXPANSION BOARD FEATURES
• Accelerometer
• Buttons and LEDs
• Joystick
SOFTWARE SUPPORT
• Wizard Gecko Wi-Fi Software
• Wizard Gecko Wi-Fi SDK
ORDERING INFORMATION
• SLWSTK6120A
• SLWRB4320A
Rev. 2.01
