- Page 1 PORTACOOL JETSTREAM OWNER ’ S MANUAL PACJS220, PACJS230, PACJS240, PACJS250, PACJS260, PACJS270...
-
Page 2: Quick Setup
Remove box and pallet Position cooler on level surface Fill tank or attach water hose* *Maximum water pressure 50 psi/345 kPa Your Portacool portable evaporative cooler is meant to For setup, Kuul evaporative media should appear ® be used in an open-air environment, such as a patio. -
Page 3: Operation Warnings
(other than repairs made by qualified individuals with • Test the GFCI receptacle or breaker monthly to ensure it is Portacool replacement parts). functioning properly if applicable. • If the evaporative cooler is damaged or malfunctions, •... - Page 4 OVERVIEW Serial plate PACJS 220 Control panel Water adjustment valve Oscillating louvers Liquid Level Indicator Hose connection Cord wrap Manual water fill Power cord with GFCI* Kuul Comfort ® MicroTech Heavy duty evaporative media casters *Products not sold in North America or Two inch drain products with 220/50 volt requirements will on bottom...

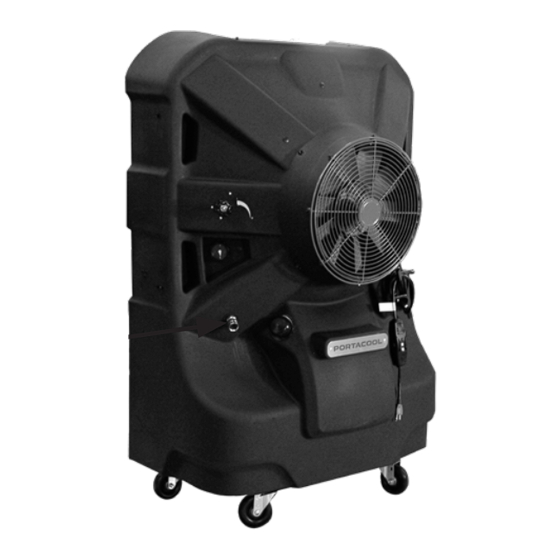

- Page 5 OVERVIEW PACJS 230 Serial plate Water adjustment valve Oscillating louvers Liquid Level Indicator Control panel Hose connection Cord wrap Manual water fill Power cord with GFCI* Kuul Comfort MicroTech ® Heavy duty casters evaporative media *Products not sold in North America or Two inch drain products with 220/50 volt requirements will on bottom...
- Page 6 OVERVIEW Serial plate PACJS 240 Control panel Water adjustment valve Cord wrap Liquid Level Indicator Hose connection Power cord with GFCI* Manual water fill Kuul Comfort ® Heavy duty evaporative media casters *Products not sold in North America or Two inch drain products with 220/50 volt requirements will on bottom not have a GFCI/ELCI.
- Page 7 OVERVIEW PACJS 250 Serial plate Water adjustment valve Control panel Liquid Level Indicator Manual water fill Cord wrap Hose connection Power cord with GFCI* Kuul Comfort ® evaporative media Heavy duty casters Two inch drain *Products not sold in North America or on bottom products with 220/50 volt requirements will not have a GFCI/ELCI.
- Page 8 OVERVIEW PACJS 260 Serial plate Water Control panel adjustment valve Liquid Level Indicator Hose connection Cord wrap Manual water fill Power cord with GFCI* Kuul Comfort ® evaporative media Heavy duty casters Two inch drain *Products not sold in North America or on bottom products with 220/50 volt requirements will not have a GFCI/ELCI.
- Page 9 OVERVIEW PACJS 270** Serial plate Water adjustment valve Control panel Liquid Level Indicator Cord wrap Hose connection Power cord Manual water fill with ELCI* Kuul Comfort ® evaporative media Heavy duty casters *Products not sold in North America or Two inch drain products with 220/50 volt requirements will not have a GFCI/ELCI.
- Page 10 • Portacool Jetstream model PACJS270 uses an ELCI, which is built into the power cord and requires a 5-20R (120V) electrical outlet The GFCI on models PACJS220, PACJS230, PACJS240, PACJS250 and PACJS260 will automatically reset when the evaporative cooler is plugged into an electrical outlet.
- Page 11 LIQUID LEVEL INDICATOR / PUMP SHUTOFF A liquid level indicator with integral shutoff gives a visual indication of the water level in the evaporative cooler and will shut off the pump once the water reaches a certain threshold. When this occurs, a red light on the control panel will illuminate to draw attention to the low water level condition and alert the user that the pump has shut off.
-
Page 12: Starting The Pump And Adjusting The Water Flow
When turning the evaporative cooler off at the end of the day or week, the pump should be turned off about 15 minutes before the fan to allow the Kuul evaporative media to dry. STARTING THE PORTACOOL EVAPORATIVE COOLER Start the fan by turning the fan switch to the desired speed on the control panel. Before starting, make sure casters are in locked position. -
Page 13: Daily Maintenance
If conditions, such as hard water, warrant, Portacool Hard Water Treatment™ can be purchased or from authorized distributors. Portacool Hard Water Treatment keeps minerals present in your water in solution and off of your Kuul evaporative media by changing the ionic structure of the particles. It can increase cooling efficiency, remove and inhibit scale building up, reduce equipment corrosion, and extend evaporative media life. -
Page 14: Troubleshoot
TROUBLESHOOT Turn off all power to the evaporative cooler before attempting to troubleshoot any of the following symptoms. For problems not listed, please contact Customer Service. REMEDY SYMPTOM POSSIBLE CAUSES 1. Check power 1. No electricity to the evaporative cooler Evaporative cooler fails to A. - Page 15 TROUBLESHOOT REMEDY POSSIBLE CAUSES SYMPTOM 1. Drain, flush and clean tank 1. Stale or stagnant water in tank Musty or unpleasant odor 2. Replace Kuul evaporative media 2. Kuul evaporative media is mildewed or clogged 1. Make sure Kuul evaporative media 1.
- Page 16 Q. What assembly is required? Q. How often should my Kuul Comfort evaporative media be A. None. Portacool Jetstream evaporative coolers are ready to use right replaced? out of the box. A. Depending on the quality of maintenance and frequency of use, Kuul Comfort evaporative media typically last up to five years.
- Page 17 EVAPORATIVE MEDIA Step 1 Be sure to unplug your Portacool portable evaporative cooler before doing any maintenance. Lock the casters to keep your evaporative cooler from moving while you are working. Remove the flap and Kuul Comfort evaporative media from the evaporative cooler.
- Page 18 PARTS PRODUCTS SOLD IN THE UNITED STATES, CANADA AND MEXICO PARMTRJ2200A PARMTRJ2300A PARMTRJ2400A PARMTRJ2500A PARMTRJ2600A PARMTRJ2700A MOTOR PARPMP00020A PARPMP00020A PARPMPJ2400A PARPMPJ2500A PARPMPJ2600A PARPMPJ2700A PUMP PARKULJ22000 PARKULJ23000 PARKULJ24000 PARKULJ25000 PARKULJ26000 PARKULJ27000 MEDIA PARCTLJ22000 PARCTLJ23000 PARCTLJ24000 PARCTLJ25000 PARCTLJ26000 PARCTLJ27000 CONTROLS PARCVRJ22000 PARCVRJ23000 PARCVRJ24000 PARCVRJ25000 PARCVRJ26000...
