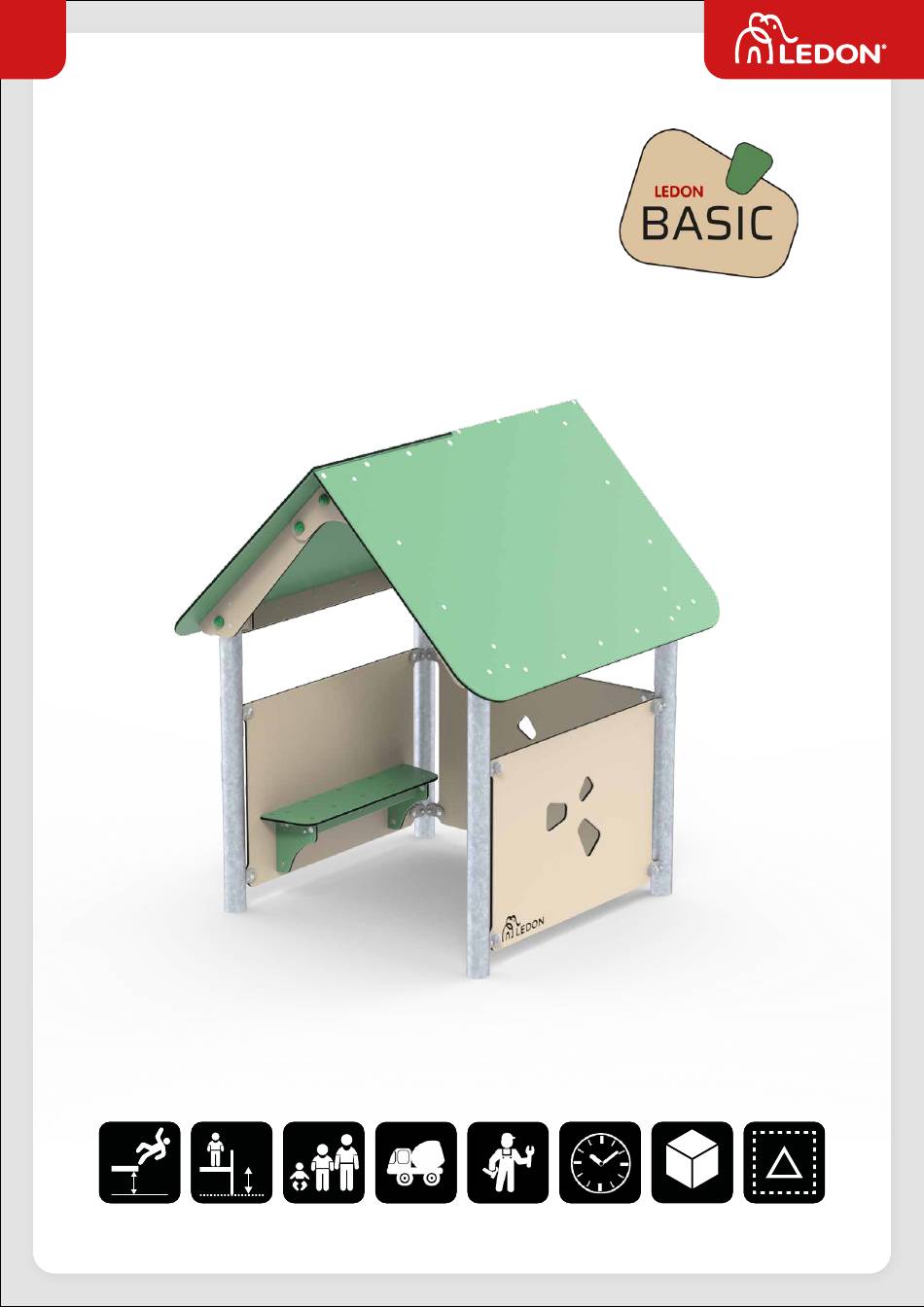

- Page 1 Revision: 1.1 LB089C Date: Marts 3 , 2021 Beth Assembly instructions Montageanleitung • Montagevejledning (LxW) (LxWxH) 60 cm 0 cm Nej/No 144 x 137 x 172 cm 444 x 337 cm...
- Page 2 Good advice and tips Ein paar gute Ratschläge und Tipps • Gode råd og vejledning • Take all components from the pallet and place them on the ground • Compare with components list – is everything there? • Be at all times precise when measuring •...
- Page 3 Clearance and safety surfaces Platzbedarf und Fallschutzunterlage • Pladshensyn og faldunderlag Safety surface in accordance with EN 1176 Fallschutzunterlag gemäß EN 1176 Faldunderlag i overensstemmelse med EN 1176 (*) Areas are accurately calculated values which are difficult to achieve in practice. Height •...
-
Page 4: Components Overview
Components overview Bauteileübersicht • Komponentoversigt... -
Page 5: Site Preparation
Site preparation Vorbereitung • Pladsforberedelse Digging depths • Grabtiefen • Gravedybder: 50 cm 60 cm 80 cm All holes with no other specified dimensions are Ø25 cm. Alle Bohrungen ohne anderen angegebenen Abmessungen sind Ø25 cm. Alle huller uden anden angivet dimension er Ø25 cm. - Page 6 Assembly Montage • Montage...
- Page 7 Assembly Montage • Montage...
- Page 8 Assembly Montage • Montage...
- Page 9 Assembly Montage • Montage...
- Page 10 Assembly Montage • Montage...
