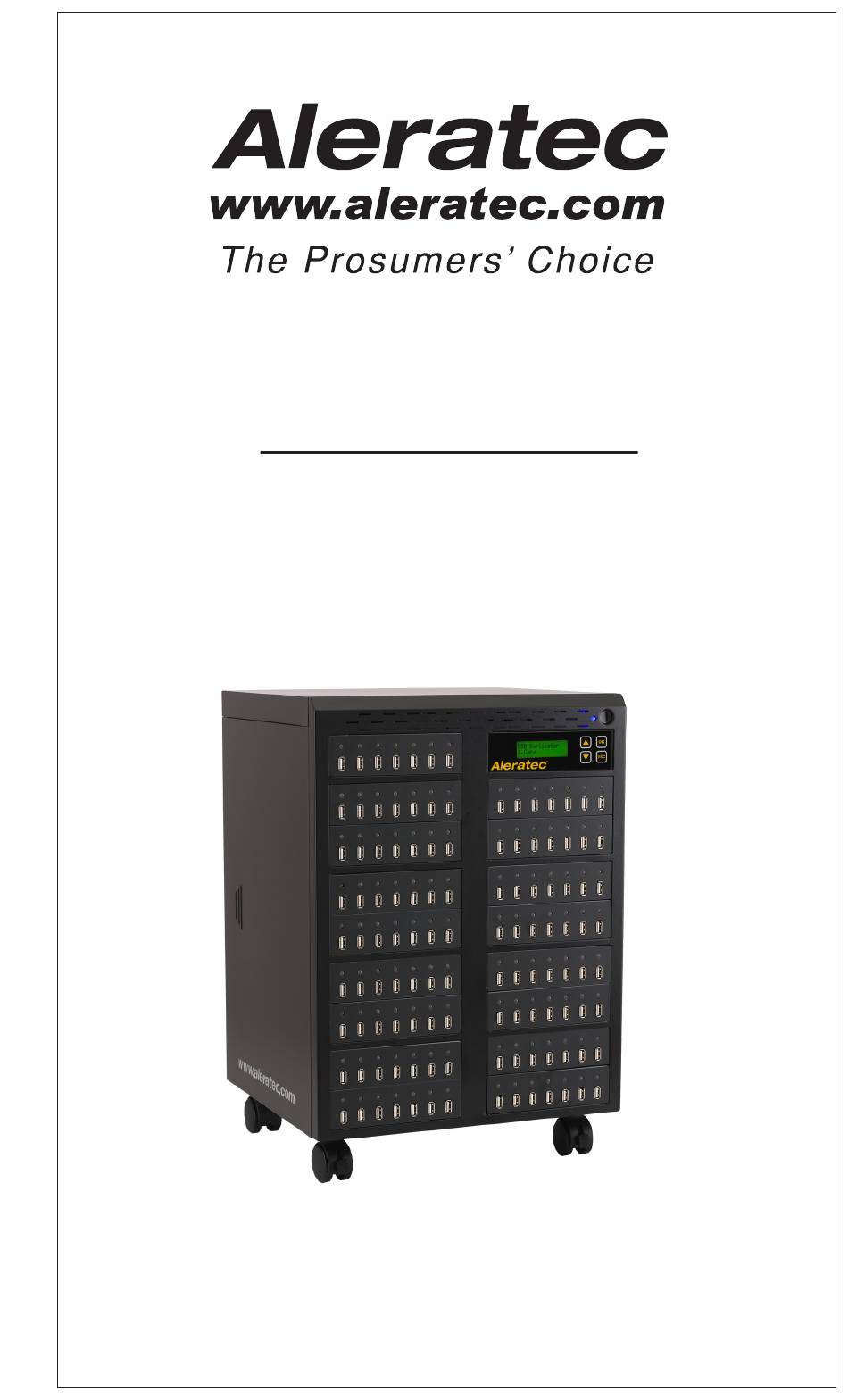

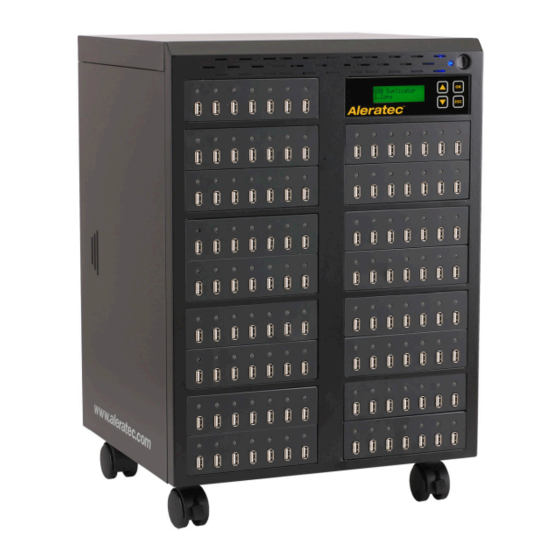

  • Page 1 ® USER GUIDE Aleratec 1:118 USB Copy Tower SA Part No. 330118...
  • Page 2 Copyright© 2013 Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. Aleratec® is a registered trademark, and 1:118 USB Copy Tower SA ™ is a trademark of Aleratec, Inc Check out Aleratec Online! • Blog.Aleratec.com • Facebook.com/Aleratec • Twitter.com/Aleratec...
  • Page 3 Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and/or modifications made to this equipment, without the approval of manufacturer, could void the user’s authority to operate this equipment. www.aleratec.com...
  • Page 4 www.aleratec.com...

  • Page 5: Table Of Contents

    1. Copy ................... 8 2. Compare ..................11 3. Copy+Compare ................14 4. Capacity Check ................18 5. Information ................18 6. Utility ..................20 7. Setup ..................26 Specifications .................32 Technical Support ................33 Service and Support...............34 Technical Support FAX Back Form ..........37 www.aleratec.com...
  • Page 6 ® www.aleratec.com...

  • Page 7: Introduction

    1. Do not place near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, excessive dust, mechanical vibration or shock. 2. Good care will help assure maximum product life. Improper operating environment and misuse may void the warranty. www.aleratec.com...

  • Page 8: 1:118 Usb Copy Tower Sa Display Panel

    ESC button is used to cancel a selected function UP arrow is used to scroll up through functions or menus DOWN arrow is used to scroll down through functions or menus Note: When the unit is powered-on, the 1:118 USB Copy Tower SA will preform a self-test sequence. www.aleratec.com...

  • Page 9: Precautions

    Operating the duplicator immediately after a sudden increase in temperature may result in a malfunction during playback or writing operations. Transportation Keep the original packing materials for future moving or shipping of the 1:118 USB Copy Tower SA. www.aleratec.com...

  • Page 10: Overview

    USB Duplicator 1. Copy  USB Duplicator 2. Compare  USB Duplicator 3. Copy+Compare  USB Duplicator 4. Capacity Check  USB Duplicator 5. Information  USB Duplicator 6. Utility  USB Duplicator 7. Setup  www.aleratec.com...

  • Page 11: Subfunctions Of Main Menu Items 5, 6, And 7

    5.2 System Info The main menu “Utility” function has 6 subfunctions. These are: 6.1 Format FAT 16/32 6.2 Measure Speed 6.3 Media Check USB Duplicator 6. Utility  6.4 Quick Erase USB 6.5 Full Erase USB 6.6 System Update www.aleratec.com...
  • Page 12 The main menu “Setup” function has 8 subfunctions. These are: 7.1 Start-up Menu 7.2 Copy Area 7.3 Button Beep 7.4 Asyn Hold Time USB Duplicator 7. Setup  7.5 Ignore Size 7.6 Asynchronous Enable/Disable 7.7 Language 7.8 Working Mode Normal/Turbo www.aleratec.com...

  • Page 13: Using The Usb Duplicator

    When this process is used the source data is read into systems buffer first. You can check the size of the data source USB flash drive by inserting it into the USB Duplicator and using the arrow keys to first select “Information”, then select “USB Info”. www.aleratec.com...

  • Page 14: Main Menu

    The number to the right is the size occupied by files or images. 3. Load the blank target flash drives into the USB Duplicator. The LCD will display the number of blank media loaded and ready for copying. USB(963M) 450M 3 ready  www.aleratec.com...
  • Page 15 Load the source flash drive into the USB Duplicator. Use the UP or DOWN arrow to scroll through the menu until Copy is displayed on the LCD screen. USB Duplicator 1. Copy  www.aleratec.com...
  • Page 16 If the Copy fails, the LCD will display the number of flash drives that failed and passed. Pass: 5 Working Fail: 0  Note: During Asynchronous Copying you can use the UP and DOWN arrow keys to check each flash drives copying status. www.aleratec.com...

  • Page 17: Compare

    Note: When Compare is in process the Green LED on the front panel is blinking. Do not take out the drive while it is running a comparison. When Compare is finished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display. www.aleratec.com...
  • Page 18 USB flash drives. USB(953M) Reading...  3. Load the target flash drives to be compared into the USB Duplicator. The LCD will display the number of flash drives loaded and comparing. Pass: 0 Working Fail: 0  www.aleratec.com...
  • Page 19 Compare fails, the LCD will display the number of flash drives that failed and passed. Pass: 5 Working Fail: 0  Note: During Asynchronous Compare you can use the UP and DOWN arrow keys to check each flash drives comparison status. www.aleratec.com...

  • Page 20: Copy+Compare

    The number to the right is the size occupied by files or images. 3. Load the blank target flash drives into the USB Duplicator. The LCD will display the number of media loaded and ready for Copy+Compare. USB(963M) 450M 3 ready  www.aleratec.com...
  • Page 21 Note: When Copy+Compare is in process the Green LED on the front panel is blinking. Do not take out the drive while it is working. When Copy+Compare is finished the Green LED stays on (no blinking). If an error occurs during the process a Red LED will display. www.aleratec.com...
  • Page 22 Note: When copying is in process the Green LED on the front panel is blinking. Do not take out the drive while it is copying. When copying is finished the Green LED stays on (no blinking). If an error occurs during the copy process a Red LED will display. www.aleratec.com...
  • Page 23 Note: When Copy+Compare is in process the Green LED on the front panel is blinking. Do not take out the drive while it is working. When Copy+Compare is finished the Green LED stays on (no blinking). If an error occurs during the process a Red LED will display. www.aleratec.com...

  • Page 24: Capacity Check

    Using the UP and DOWN arrows, you can scroll thru each drive loaded to display capacity. [#01] SIZE: 953M Capacity OK  5. Information This function includes 2 subfunctions. These are: 5.1 USB Info USB Duplicator 5. Information  5.2 System Info www.aleratec.com...
  • Page 25 1. Use UP or DOWN arrow to scroll through the menu until System Information is displayed on the LCD screen. 5. Information 2. System Info  Press the DOWN arrow to get to System Info. and press OK. Press ESC twice to return to the Main Menu. www.aleratec.com...

  • Page 26: Utility

    Main Menu 6. Utility The main menu Utility function has 6 subfunctions. These are: 6.1 Format FAT 16/32 6.2 Measure Speed 6.3 Media Check USB Duplicator 6. Utility  6.4 Quick Erase USB 6.5 Full Erase USB 6.6 System Update www.aleratec.com...
  • Page 27 2. Use the UP and DOWN arrow keys to check the status of any of the flash drives loaded in the machine. Drives inserted in the first port (source) will not be formatted. [Utility] 1. Format FAT  Do FORMAT Confirm?  www.aleratec.com...
  • Page 28 1. Load drives. Use UP or DOWN arrow to scroll through the menu until Utility is displayed on the LCD screen. Press the OK button to select or press ESC to go to the next setting. USB Duplicator 6. Utility  www.aleratec.com...
  • Page 29 (percentage of drive tested) 6.3.3 Setup Range This function will adjust the percentage of the drive tested in the Safe and Normal Checks. Use the Up and Down arrow keys to change the percentage tested. [Media Check] 3. Setup Range  www.aleratec.com...
  • Page 30 Fail: 0  Note: This function will erase the flash drive’s data content. It will not erase the flash drive’s FAT 16/32 format. If the format of the target drive is not FAT 16/32, the Quick Erase won’t execute. www.aleratec.com...
  • Page 31 Press OK for Yes or ESC for No. 4. LCD display will show the following screen when finished. Pass: 2 Working Fail: 0  6.6 System Update This function is used to update your systems firmware. (Contact Aleratec Technical Support for the latest version.) www.aleratec.com...

  • Page 32: Setup

    7. Setup This function includes 8 subfunctions. These are: 7.1 Start-up Menu 7.2 Copy Area 7.3 Button Beep 7.4 Asyn Hold Time USB Duplicator 7. Setup  7.5 Ignore Size 7.6 Asynchronous Enable/Disable 7.7 Language 7.8 Working Mode Normal/Turbo www.aleratec.com...
  • Page 33 If the source is not FAT 16, 32, NTFS, Linux Ext 2, Ext 3 format, the system will copy the entire media, even the blank area. When this function is selected, Quick Copy will not be used. The copy process takes longer. www.aleratec.com...
  • Page 34 Button Beep is displayed on the LCD screen. 7. Setup: 3. Button Beep  3. Default setting is ON. Use the UP or DOWN arrows to select either ON or OFF. Press the OK button to change, or ESC to exit. Button Beep  www.aleratec.com...
  • Page 35 To ensure both the source and target flash drives are at the same capacity you can set the capacity tolerance. This function is used to set the tolerance % of flash capacity difference between source and targets. www.aleratec.com...
  • Page 36 Note: If you need to copy a source flash to a target with a big capacity difference there are two ways to avoid potential problems. 1. Use the Setup function Ignore Size to increase the tolerance % of the source and target. 2. Turn the Setup function Analyze Source to OFF. www.aleratec.com...
  • Page 37 7.8 Working Mode (Normal/Turbo) This function allows the user to select between Normal and Turbo working modes. Select using the Up and Down arrow keys and push OK. Note: Turbo Mode is faster but it will copy errors. Normal speed is safer. www.aleratec.com...

  • Page 38: Specifications

    USB Port Transfer Speed • Up to 33MB/s Copy Mode • Synchronous or Asynchronous LCD Display • 2 x 16 Backlit Power Requirements • 115V or 230V Operating Temperature • 41°F - 122°F Operating Humidity • 15% - 90% www.aleratec.com...

  • Page 39: Technical Support

    Technical Support After reading this User Guide, if you need additional assistance with this product, please contact Aleratec Technical Support. Our technical staff will be happy to assist you, but they may need your help to better assist you. Calling Aleratec Technical Support without all the necessary information can be both time consuming and frustrating.

  • Page 40: Service And Support

    www.aleratec.com...
  • Page 41 www.aleratec.com...
  • Page 42 www.aleratec.com...

  • Page 43: Technical Support Fax Back Form

    I am experiencing the following problems with my USB Duplicator: _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ _____________________________________________________________ By answering these questions, your problem will be solved more rapidly. Make copies as necessary. You can reach us electronically at: www.aleratec. com on the internet. www.aleratec.com...
  • Page 44 Document Number: 9399060_ENG_Rev. B Copyright © 2013 Specifications subject to change without notice. Aleratec, Inc. 9851 Owensmouth Avenue Chatsworth, CA 91311 U.S.A. www.aleratec.com...
