Summary of Contents for BOERPLAY PKNE103.190

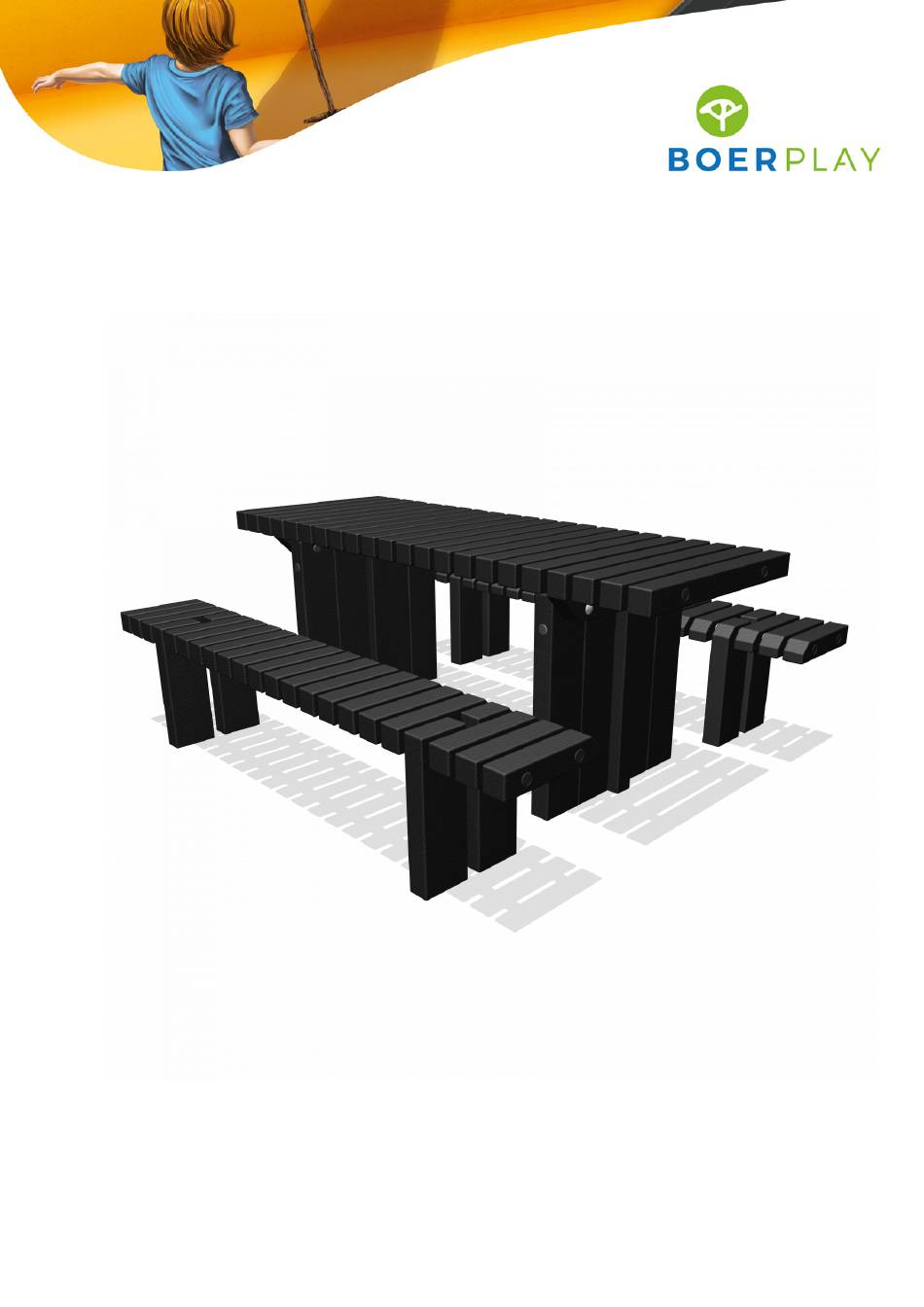

- Page 1 Picnic set PKNE103.190...
- Page 2 1,95 m Benaming TOE PKN 103 190 Picknickset Title Tekening Opmerking Rebo Drawing Comment BOER Datum Hoofdafmetingen Main dimensions 26-10-2015 Date SPEELTOESTELLEN...
- Page 3 0,20 m 1,08 m 0,20 m Benaming TOE PKN 103 190 Picknickset Title Tekening Opmerking Rebo Drawing Comment BOER Datum Bodemplan Groundplan 26-10-2015 Date SPEELTOESTELLEN...
- Page 4 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De modules kunnen correct geassembleerd worden met de voorgeboorde gaten. - The modules can be assembled correctly using the predrilled holes. Montagevolgorde: Assembly sequence: 1 - Graaf de gaten volgens het bodemplan 1 - Dig the holes according to the ground plan 2 - Plaats banken en tafel 2 - Place benches and table...
- Page 5 PKNE103.190 Picnic set LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Streetfurniture Product code PKNE103.190 Name of equipment PB Picknickset model 319 Maximum height of fall n.a.
-
Page 6: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 7 Dit toestel is geen speeltoestel conform het warenwetbesluit attractie- en speeltoestellen, en is dus niet als zodanig gecertificeerd. This equipment is not playground equipment, so it has not been certified as such.
- Page 8 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M8 - VZ 8.8 M8 x 120 - VZ 8.8 Slotbout Veerring M8 - VZ 8.8 CARROSSERIERING M8 x 30 - VZ 8.8 Metaalschroef M6 x 35 - VZ 8.8 Meubeldop Rond 36 Buis 42x36 L= 20 mm Buis 31.8x2.6...
- Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking M12 - VZ 8.8 Zeskantmoer M12 x 160 - VZ 8.8 Slotbout Slotbout M12 x 120 - VZ 8.8 Sluitring M12 - VZ 8.8 Veerring M12 - VZ 8.8 Draadeind M12 x 610 - VZ 8.8 Meubeldop Rond 36 Benaming...
- Page 10 ORE.PKN.070.004 (18x) ORE.PKN.070.005 ORE.PKN.070.005 ORE.PKN.150.011 ORE.PKN.150.011 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Metaalschroef M6 x 35 - VZ 8.8 Meubeldop Rond 36 Buis 42x36 L= 20 mm Buis 31.8x2.6 L= 1900 mm Benaming MOD PKN 103 211 Blad picknicktafel Title Tekening Opmerking...
