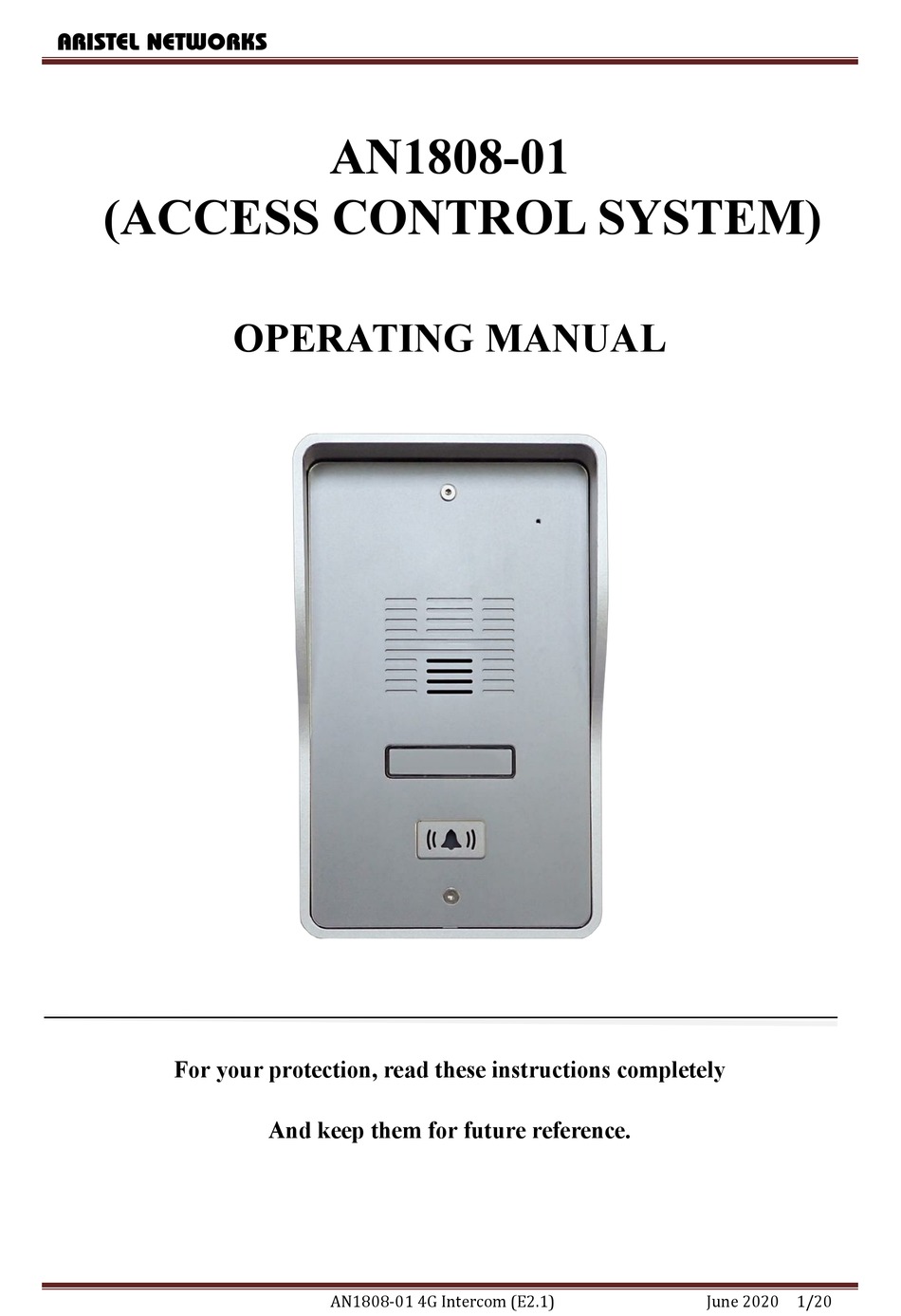

- Page 1 ARISTEL NETWORKS AN1808-01 (ACCESS CONTROL SYSTEM) OPERATING MANUAL For your protection, read these instructions completely And keep them for future reference. AN1808-01 4G Intercom (E2.1) June 2020 1/20...
-
Page 2: Table Of Contents
Introduction ............................4 Parts List .............................. 4 Installation ............................5 Wiring Diagram ........................... 8 Using the AN1808-01 .......................... 9 Setting your call out numbers ................... 9 Setting your dial in numbers ..................... 9 App on iOS and Android ....................9 Enter System Menu .......................... -
Page 3: Important Safety Instructions
ARISTEL NETWORKS Thank you for purchasing AN1808-01 4G/3G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or question should arise. Important Safety Instructions When using this AN1808-01 4G/3G audio intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Introduction
The AN1808-01 is also Access Control System to let users open the gate with their phone number remotely. You need to program the phone numbers of all users into the dial-to-open numbers of device before using. -
Page 5: Installation
ARISTEL NETWORKS Installation This 4G/3G audio intercom is suitable for both flush mounting and surface mounting. AN1808-01 4G Intercom (E2.1) June 2020 5/20... - Page 6 ARISTEL NETWORKS 1. SIM card installation (Fig 1) 1.1 Disconnect the 12V adaptor from the AN1808-01 1.2 Remove the rear plastic cover 1.3 Remove the SIM card cover from the bottom of the unit 1.4 Slide the SIM card holder towards the front of the unit 1.5 Lift up the holder...
- Page 7 2.1 According your door lock type to wire with door latch of connector. 3. Connecting the Antenna (Fig 3) 3.1 Plug on the antenna cord to the connector on the rear of the unit 3.2 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc) AN1808-01 4G Intercom (E2.1) June 2020 7/20...
-
Page 8: Wiring Diagram
4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Fix the unit on the position before ready. 4.4 When the Du Du tone is disappeared then the Device is ready. Wiring Diagram AN1808-01 4G Intercom (E2.1) June 2020 8/20... -
Page 9: Using The An1808-01
3.1 Please search “3G intercom” on Apple store or Google Play 3.2 The App can help you to program the device easier. 3.3 You can use the App to unlock the door through call or SMS. AN1808-01 4G Intercom (E2.1) June 2020 9/20... -
Page 10: Enter System Menu
To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1808-01 4G Intercom (E2.1) June 2020 10/20... -
Page 11: Programming By Text Message
SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error AN1808-01 4G Intercom (E2.1) June 2020 11/20... -
Page 12: Sms/ Phone Mode Code
1 [ Y] [ phone number] # Phone number= 3~20 digits Store or delete call out phone None (One * can be delay 3 seconds) numbers 1 [ Y] * # Delete phone number1, 2, 3 AN1808-01 4G Intercom (E2.1) June 2020 12/20... - Page 13 X=0 (disable SMS reply) SMS reply notice of Relay status 894[X]# X=1 (enable SMS reply) Dial tone volume 898[X]# X=1~3 (levels) 2 Set Egress Pin output relay 900[X]# X=0 (relay 1) AN1808-01 4G Intercom (E2.1) June 2020 13/20...
- Page 14 Change open codes of relay 1&2 93[ABCDEF]# C= release relay 1 including trigger / hold / release D= trigger relay 2 for independent apartment E= hold relay 2 F= release relay 2 Reset 999# reset default None AN1808-01 4G Intercom (E2.1) June 2020 14/20...
-
Page 15: Sms Inquire
*29*[password]# Query current message content (works for inside battery) Password=setting password *30*[ password ]#[content] IN1 trigger Send SMS message content= up to 100 characters (when IN1 is triggered) *30*[password]# Query current message content AN1808-01 4G Intercom (E2.1) June 2020 15/20... -
Page 16: E-Mail Settings
Letter subject *43*[setting password]#[E-mail subject]# 0: GPRS setting 1: E-mail setting Query Email Settings *4(0~3)*[setting password]# 2: Recipient & copy 3. Letter subject SUCCESS(Mail sent) Instant return(send Email) *44*[setting password]# FAIL AN1808-01 4G Intercom (E2.1) June 2020 16/20... -
Page 17: How To Change The Name Plate
ARISTEL NETWORKS How To Change The Name Plate AN1808-01 4G Intercom (E2.1) June 2020 17/20... -
Page 18: Hardware Reset (If You Forget Password)
Even if you have already programmed a number to receive a call from the intercom, if you also want that number to have caller ID access, it must be programmed under the 72 features also. Ensure the number is entered as you would normally dial it from another phone. AN1808-01 4G Intercom (E2.1) June 2020 18/20... - Page 19 Failure of DTMF tones to operate correctly is also a symptom of low reception. Check steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. AN1808-01 4G Intercom (E2.1) June 2020 19/20...
-
Page 20: Specification
ARISTEL NETWORKS Specification: Model AN1808-01 4G/3G Audio Intercom Frequency 2G / GSM 850/900/1800/1900 MHz, 3G / WCDMA 800/850/900/1900/2100 MHz 4G / LTE (EC) LTE FDD: B1/B3/B7/B8/B20/B28A 4G / LTE (A) LTE FDD: B2/B4/B12 4G / LTE (AU) LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28...
