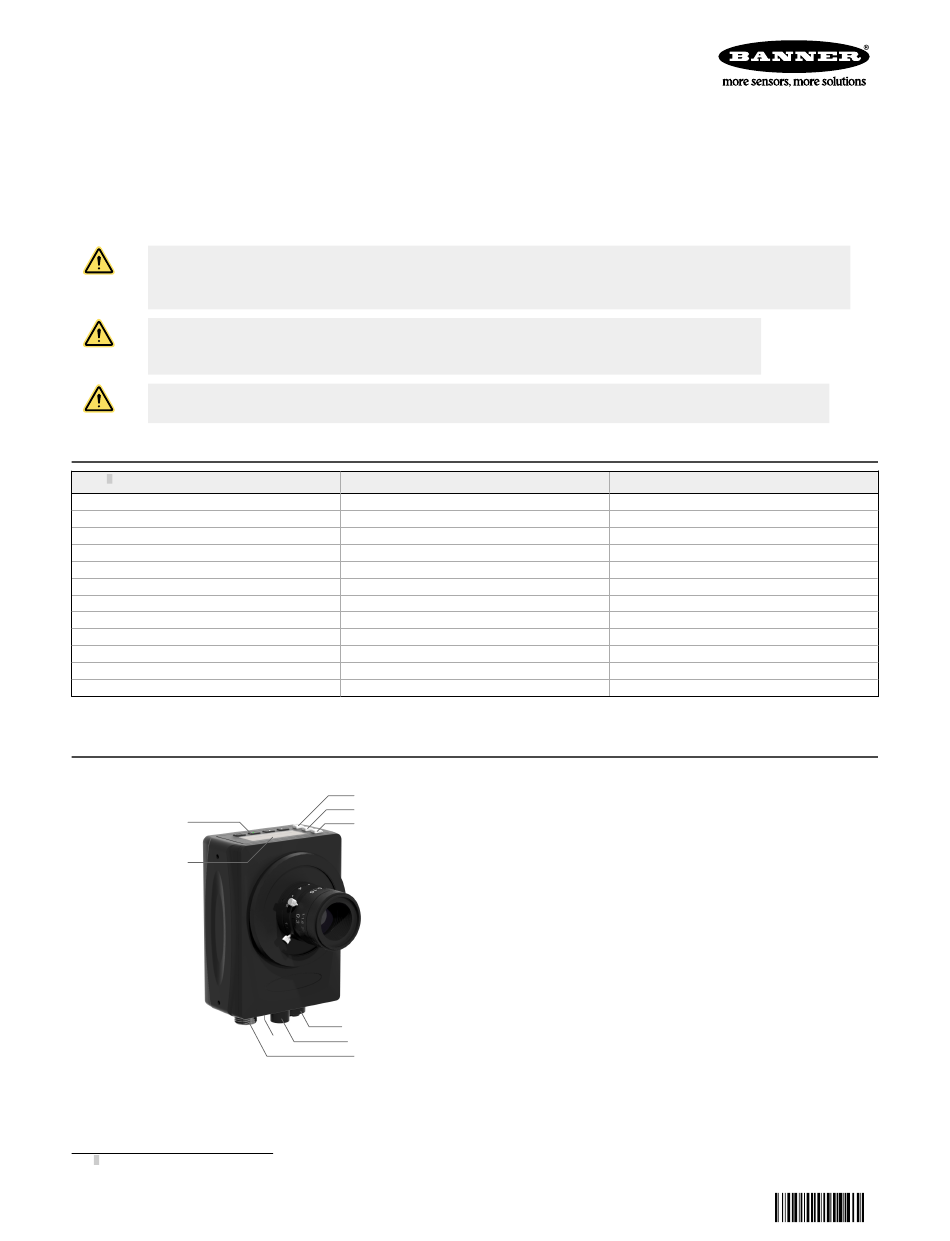

VE Series Smart Camera
Quick Start Guide
Self-contained Smart Camera with User-Friendly Vision Manager Software
This guide is designed to help you set up and install the VE Series Smart Camera. For complete information on programming, performance,
troubleshooting, dimensions, and accessories, please refer to the Instruction Manual at www.bannerengineering.com. Search for p/n 191666 to view
the Instruction Manual. Use of this document assumes familiarity with pertinent industry standards and practices. More details are available in the
online help.
WARNING: Not To Be Used for Personnel Protection
Never use this device as a sensing device for personnel protection. Doing so could lead to serious injury or death. This device
does not include the self-checking redundant circuitry necessary to allow its use in personnel safety applications. A sensor
failure or malfunction can cause either an energized or de-energized sensor output condition.
CAUTION: Electrostatic Discharge
Avoid the damage that electrostatic discharge (ESD) can cause to the Sensor.
Always use a proven method for preventing electrostatic discharge when installing a lens or attaching a cable.
CAUTION: Hot Surface
Use caution when handling the camera. The surface of the camera may be hot during operation and immediately after use.
Models
Model 1
VE200G1A
VE201G1A
VE202G1A
VE205G1A
VE200G1B
VE201G1B
VE202G1B
VE205G1B
VE200G1C
VE201G1C
VE202G1C
VE205G1C
Features
Figure 1. Sensor Features
2
1
1 Model VE202G2A, 2 MP, 1600 × 1200 grayscale with 4-pin D-code M12 Ethernet connection is also available.
Original Document
191667 Rev. J
Resolution
WVGA, 752 × 480 pixels grayscale
1.3 MP, 1280 × 1024 pixels grayscale
2 MP, 1600 × 1200 pixels grayscale
5 MP, 2592 × 2048 pixels grayscale
WVGA, 752 × 480 pixels grayscale
1.3 MP, 1280 × 1024 pixels grayscale
2 MP, 1600 × 1200 pixels grayscale
5 MP, 2592 × 2048 pixels grayscale
WVGA, 752 × 480 pixels grayscale
1.3 MP, 1280 × 1024 pixels grayscale
2 MP, 1600 × 1200 pixels grayscale
5 MP, 2592 × 2048 pixels grayscale
3
4
5
7
6
8
9
17 March 2021
Type
Vision
Vision
Vision
Vision
ID
ID
ID
ID
Vision + ID
Vision + ID
Vision + ID
Vision + ID
1. Display
2. Buttons
3. Pass/Fail indicator (green/red)
4. Ready/Trigger indicator (green/amber)
5. Power/Error indicator (green/red)
6. Ethernet indicator (amber), not shown
7. Ethernet connection
8. Light connection
9. Power, Discrete I/O connection
191667
Advertisement
Table of Contents
Related Manuals for Banner VE200G1B
Summary of Contents for Banner VE200G1B
- Page 1 2 MP, 1600 × 1200 pixels grayscale Vision VE205G1A 5 MP, 2592 × 2048 pixels grayscale Vision VE200G1B WVGA, 752 × 480 pixels grayscale VE201G1B 1.3 MP, 1280 × 1024 pixels grayscale VE202G1B 2 MP, 1600 × 1200 pixels grayscale VE205G1B 5 MP, 2592 ×...
-
Page 2: Installation Instructions
Password-protected user profiles are also available to enable different levels of access to the tools and data. Use Vision Manager to configure Banner vision devices including iVu Vision Sensors and VE Smart Cameras. Installation Instructions Install the Accessories Figure 3. -
Page 3: Mount The Sensor
3. Connect the external light cable (optional) to the light connection (2) if the light is powered by the sensor. CAUTION: Use Appropriate Power If the light is powered by the sensor, the sensor power source must be 24 V dc. This connection is for Banner lights only. -
Page 4: Install The Software
VE Series Smart Camera Wiring Diagrams Figure 5. PNP Output Figure 6. NPN Output VE Output Output Common Output 12–30 V dc Power Load Output Supply Load Power 12-30V dc Supply Output Common VE Output Figure 7. PNP Input Figure 8. NPN Input VE Input Input Common Input... -
Page 5: Sensor Screen
VE Series Smart Camera From Sensor Neighborhood, click to connect to the desired sensor. The status changes from Available to Connected and the Sensor screen displays. Click to disconnect from the sensor. 4. If the desired sensor is not listed, verify that: •... -
Page 6: Set Up An Inspection
• Capture the shape and form of the target object with lighting that optimizes its contrast and separates the feature of interest from the background. Depending on the target, consider other Banner lights • Adjust the mounting angle to provide the clearest image of the part features you are inspecting 7. -
Page 7: Save An Inspection To A Computer, Network Drive, Or Storage Device
VE Series Smart Camera Available on: Tool Name Description Vision Models ID Models Measures distance, calculates angles, and creates points and lines for use as inputs to other tools. Measure Uses Boolean logic to combine or convert tool results, or to drive discrete outputs from tool results. -
Page 8: Sensor Display Interface
VE Series Smart Camera • IMAGE—Image settings • INFO—Sensor information • SYSERROR—System errors, if present • DISPLAY—Display settings • REBOOT—Reboot Access the sensor menu by pressing Enter from the Home Screen on the sensor display. Note that when User Profiles are enabled, the sensor display is available as read-only. No editing can be done directly from the sensor until User Profiles are disabled for that sensor. - Page 9 VE Series Smart Camera Sensor Menu Figure 11. Menu Map Top Menu Sub Menus Ethernet Menu Enter Home ETHER LINK STATUS Screen Top Menu SPEED VE Series User Interface SUBNET GATEWAY Enter Shortcuts Menu MAX SPD 100 FD 100 HD FOCUS# 1000 FD TRIGGER...
-
