Summary of Contents for Fridgemaster MTZ55153E

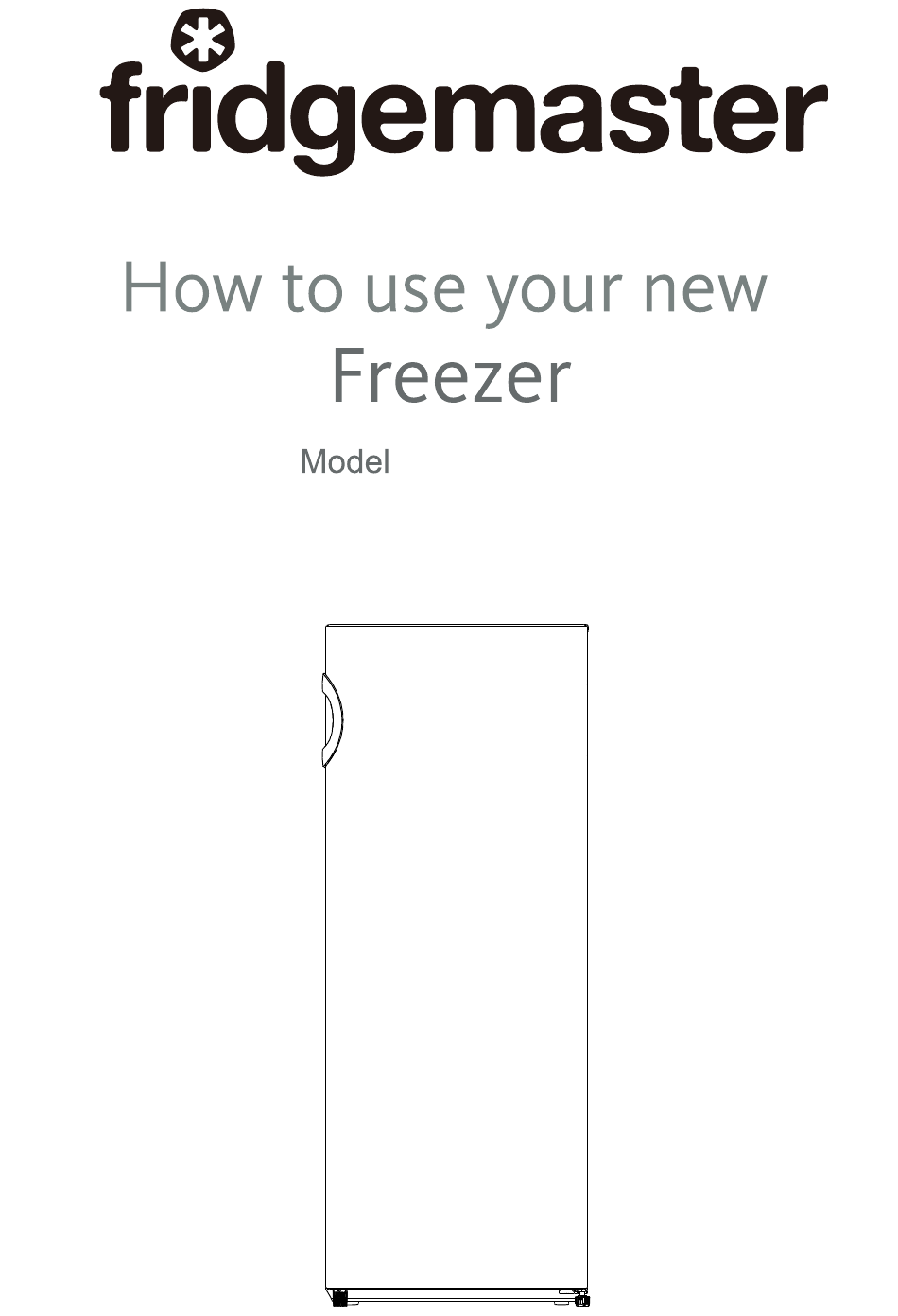

- Page 1 MTZ55153E...
- Page 2 Please visit our website where you can enter your appliance model number, indicated on the rating plate or the warranty sheet, to find detailed description of your appliance, tips on use, troubleshooting, service information, instructions for use etc. https://www.fridgemaster.co.uk Important safety warning...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION 4 IMPORTANT NOTES AND PRECAUTIONS 4 SAFETY AND WARNING INFORMATION APPLIANCE 11 INSTALLING YOUR NEW APPLIANCE DESCRIPTION 13 APPLIANCE DESCRIPTION 14 CHANGING THE DOOR OPENING DIRECTION 19 OPERATING THE APPLIANCE 21 USING YOUR APPLIANCE 24 HELPFUL HINTS AND TIPS DEFROSTING AND CLEANING 25 CLEANING AND CARE... -
Page 4: Important Notes And Precautions
IMPORTANT NOTES AND PRECAUTIONS SAFETY AND WARNING INFORMATION For your safety and correct usage, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to make sure that all people using the appliance are thoroughly familiar with its operation and safety features. - Page 5 According to IEC standard This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 6 • WARNING — Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. • WARNING — If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. •...
- Page 7 • WARNING — Refrigerators contain refrigerant andgases in the insulation. Refrigerant and gases must be disposed of professionally as they may cause eye injuries or ignition. Ensure that tubing of the refrigerant circuit is not damage prior to proper disposal. WARNING! Risk of fire/flammable materials.
- Page 8 • The fridge is only applied with power supply of single phase alternating current of 220~240V/50Hz. If fluctuation of voltage in the district of user is so large that the voltage exceeds the above scope, for safety sake, be sure to apply A.C. Automatic voltage regulator of more than 350W to the fridge.
- Page 9 • Keep buring candles,lamps and other items with naked flames away from the appliance so that do not set the appliance on fire. • The appliance is intended for keeping food stuff and/ or beverages in normal household as explained in this instruction booklet The appliance is heavy.Care should be taken when moving it.
- Page 10 Installation Important! • For electrical connection carefully, follow the instructions given in this manual. • Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it.
-
Page 11: Installing Your New Appliance
INSTALLING YOUR NEW APPLIANCE • Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system and save energy, it is necessary to maintain good ventilation around the appliance for the dissipation of heat. - Page 12 Leveling of appliance • For sufficient leveling and air circulating in the lower rear section of the appliance, the bottom feet may need to be adjusted, you can adjust them by your fingers or a suitable spanner. • To allow the doors to self-close, tilt back the top backwards for about 10 mm. 1 1 0 0 m m m m...
-
Page 13: Appliance Description
APPLIANCE DESCRIPTION 1. Control panel 5. Adjustable bottom feet 2. Serving tray 6. Handle 3. Middle drawer 7. Freezer door 4. Lower drawer Note: Due to unceasing modification of our products, your refrigerator may be slightly different from this instruction manual, but its functions and using methods remain the same. -
Page 14: Changing The Door Opening Direction
CHANGING THE DOOR OPENING DIRECTION The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires. Warning! When reversing the door, the appliance must not be connected to the mains. - Page 15 1. Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at the top left corner of the refrigerator, and the upper hinge cover which is at the top right corner of the refrigerator. upper hinge screw hole cover cover (right) 2.
- Page 16 4. Remove the door from the lower hinge. NOTE: When removing the door watch for washer(s) between the center hinge and the bottom of the upper door that may stick to the door. Do not lose. 5. Place the upper door on a smooth surface with its panel upwards. Loose screw (2) and part (1), then install them to the left side and tighten securely.
- Page 17 7. Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing it. 8. Transfer the door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.
- Page 18 10.Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag. upper hinge cover screw hole cover (left) 11.
-
Page 19: Operating The Appliance
OPERATING THE APPLIANCE A Temperature setting knob SWITCHING THE APPLIANCE ON To switch on: rotate the A dial clockwise. - Page 20 ADJUSTING THE TEMPERATURE • To set the desired temperature, rotate the A dial in clockwise direction, i.e. to the right. • A change in the environment temperature will affect the temperature in the appliance. Adjust the setting with the A dial accordingly. Positions towards the longer lines mean a lower temperature in the appliance (cooler).
-
Page 21: Using Your Appliance
USING YOUR APPLIANCE The freezer compartment The symbol means that your freezer will store frozen food at -18°C(-0.4F) or colder allowing for long term frozen-food storage and freezing of fresh food. The freezer temperature is controlled automatically by the thermostat situated in the control panel. - Page 22 To avoid contamination of food, please respect the following instructions • Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. • Clean regularly surfaces that can come in contact with food and accessible drainage systems.
- Page 23 ≤ –6 * – Seafood (fish, shrimp, shellfish), Freezer freshwater aquatic products and meat products (recommended time is 1 month – nutrition values and taste decrease with time). Not suitable for freeing fresh food. 0 star –6 ≤ 0 Fresh pork, beef, fish, chicken, some packaged processed foods, etc.
-
Page 24: Helpful Hints And Tips
HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc.) •... -
Page 25: Cleaning And Care
CLEANING AND CARE For hygienic reasons, the appliance interior, including interior accessories, should be cleaned regularly. The appliance should be cleaned and maintained at least every two months. Warning! The appliance should not be connected to the main power supply during cleaning. - Page 26 Defrosting in the frozen food storage compartment • Defrosting in the freezer chamber is operated manually. Before defrosting, take the foot out. • Take the ice tray and drawers out or put them into the fresh food compartment temporarily. • Leave the door of the freezer open until ice and frost dissolve thoroughly and accumulate at the bottom of the freezer chamber.
-
Page 27: Troubleshooting
TROUBLESHOOTING Warning! Before troubleshooting, disconnect the power supply. Only qualified electrician or other personnel must carry out the troubleshooting that is not in the manual. Important! Repairs to the appliance may only be performed by competent service engineers. Improper repairs can give rise to significant hazards for the user. - Page 28 Problem: Possible cause Solution • Carefully warm the leaking sections of the Heavy build-up door seal with a hair • Door seal is not air-tight of frost, possibly dryer (on a cool setting). (possibly after reversing the also on the door At the same time, shape door) .
-
Page 29: Disposal Of The Appliance
DISPOSAL OF THE APPLIANCE It is prohibited to dispose of this appliance as household waste. Packaging materials Packaging materials with the recycle symbol are recyclable. Dispose of the packaging into a suitable waste collection container to recycle it. Before disposal of the appliance 1. - Page 30 Fridgemaster Technical helpline and FRIDGEMASTER Service Centre Ground floor, Munroe Court, Telephone 0191 387 0804 White Rose Office Park, Millshaw Park Lane, Leeds LS11 0EA Fridgemaster@0800repair.com United Kingdom This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.
