Sony HT-6600DP Connection And Installation Manual

Speakers
Hide thumbs Also See for HT-6600DP:
1
2

Advertisement

Quick Links

Download this manual See also: Owner's Manual, Manual
Haut-parleur frontal
Surround speaker
Haut-parleur Surround
Sony Corporation 2003 Printed in Malaysia
4-246-055-41(1)
TV monitor
Moniteur TV
Front speaker
DIGITAL
OPTICAL
VIDEO 2
ANTENNA
IN
MD/
TAPE
IN
AM
MD/
TAPE
y
OUT
CD/
SACD
FM
IN
75Ω
COAXIAL
DVD
IN
COAXIAL
L
L
CENTER
R
R
SUB
IN
OUT
IN
FRONT SURROUND
WOOFER
CD/SACD
MD/TAPE
MULTI CH IN
DVD player
Lecteur DVD
HT-6600DP

HOME THEATER SYSTEM

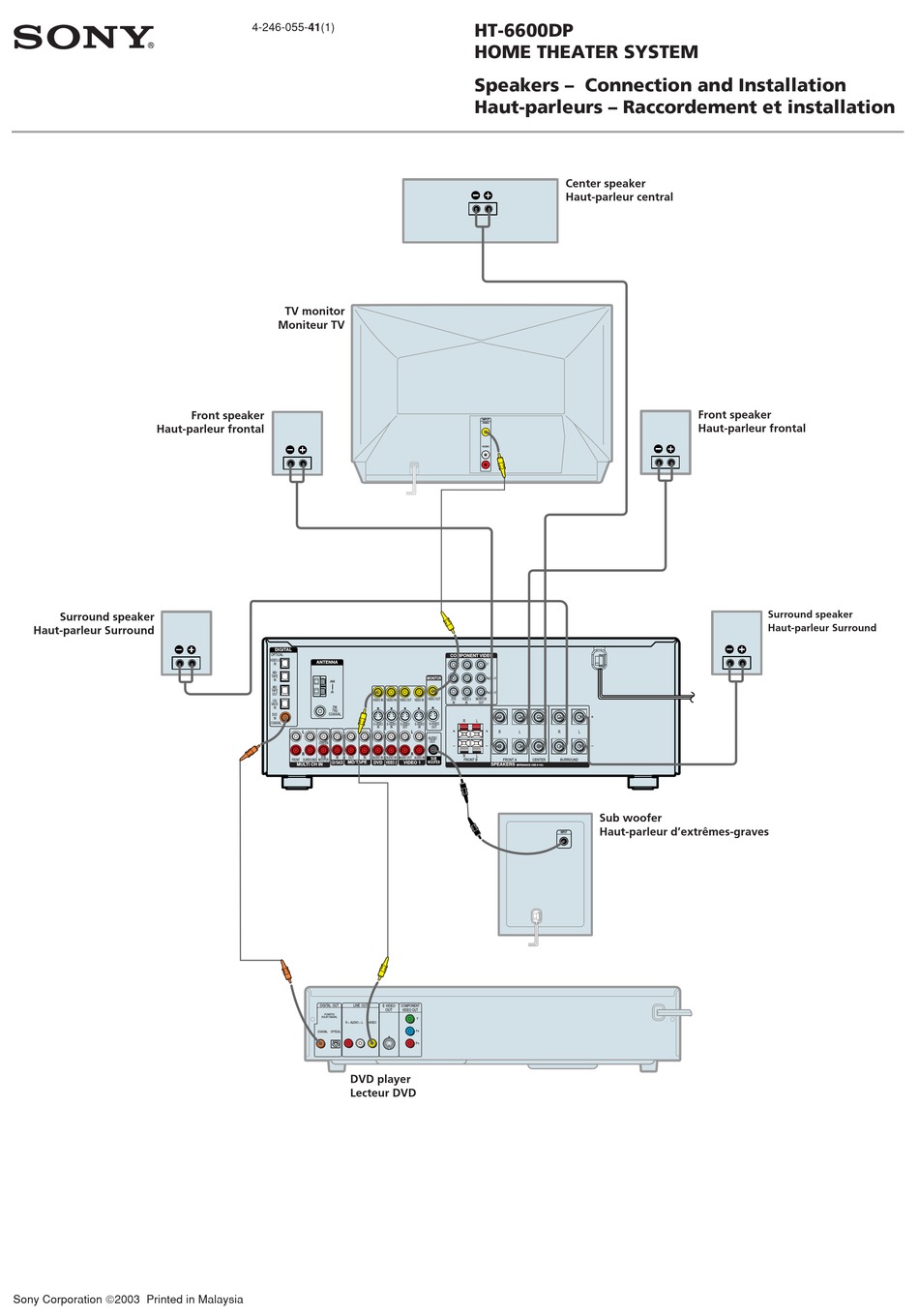

Speakers – Connection and Installation
Haut-parleurs – Raccordement et installation
INPUT
VIDEO
AUDIO
COMPONENT VIDEO
Y
MONITOR
P
/B—Y
B
P
/R—Y
R
VIDEO OUT
DVD
VIDEO 2
MONITOR
VIDEO IN
VIDEO IN
VIDEO OUT VIDEO IN
IN
IN
OUT
R
L
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
S-VIDEO
IN
IN
OUT
IN
OUT
L
L
R
L
AUDIO
OUT
R
R
R
L
AUDIO IN AUDIO IN
AUDIO OUT AUDIO IN
SUB
FRONT B
FRONT A
CENTER
DVD
VIDEO 2
VIDEO 1
WOOFER
SPEAKERS
IMPEDANCE USE 8-16Ω
Center speaker
Haut-parleur central
Front speaker
Haut-parleur frontal
R
L
SURROUND
Sub woofer
Haut-parleur d'extrêmes-graves
INPUT
Surround speaker
Haut-parleur Surround

Advertisement

loading

Related Manuals for Sony HT-6600DP

Summary of Contents for Sony HT-6600DP

  • Page 1: Home Theater System

    4-246-055-41(1) Front speaker Haut-parleur frontal Surround speaker Haut-parleur Surround Sony Corporation 2003 Printed in Malaysia HT-6600DP HOME THEATER SYSTEM Speakers – Connection and Installation Haut-parleurs – Raccordement et installation TV monitor Moniteur TV INPUT VIDEO AUDIO DIGITAL OPTICAL COMPONENT VIDEO...

  • Page 2: Speaker Installation

    Speaker installation For best performance, we recommend speaker placement as shown. See the Operating Instructions for more information. For greater flexibility in the positioning of the speakers, use the optional WS-FV10C floor stand (available only in certain countries). Installation des haut-parleurs Nous conseillons d’installer les haut-parleurs comme suit pour les optimiser au maximum.
