716-102 and 7165-102 Flush-Mount
Confidentiality Notice
This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive
business and technical information that is confidential and proprietary to GAI-Tronics. GAI-Tronics
retains all intellectual property and other rights in or to the information contained herein, and such
information may only be used in connection with the operation of your GAI-Tronics product or system.
This manual may not be disclosed in any form, in whole or in part, directly or indirectly, to any third
party.
The following are trademarks of GAI-Tronics Corporation:
®
SmartSeries
General Information
Product Overview
The Model 716-102 Single Party and Model 7165-
102 Multi-Party Flush-Mount Subsets are intended
for use in GAI-Tronics Page/Party and SmartSeries
systems.
The subset enables paging and party line
communication when installed with a remote
amplifier and enclosure. The remote subset includes
a pressbar handset, a handset cradle, and a five-party
rotary selector switch (Model 7165-102 only).
The subset's compact design allows it to be mounted
where space is limited. The compact size is made
possible by housing most of the support electronics
in a separate remote amplifier enclosure.
The subset is designed for flush-mount applications.
The integral connectorized cable permits mounting
the subset up to eight feet from the amplifier.
WARNING
—Explosion Hazard
GAI-TRONICS 3030 KUTZTOWN RD. READING, PA 19605 USA
610-777-1374  800-492-1212  Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
Subsets
®
Page/Party
Substitution of components
may impair suitability for
Class 1, Div. 2 usage.
. - .
GAI TRONICS COM FOR PRODUCT LITERATURE AND MANUALS
®
ADVANCE™

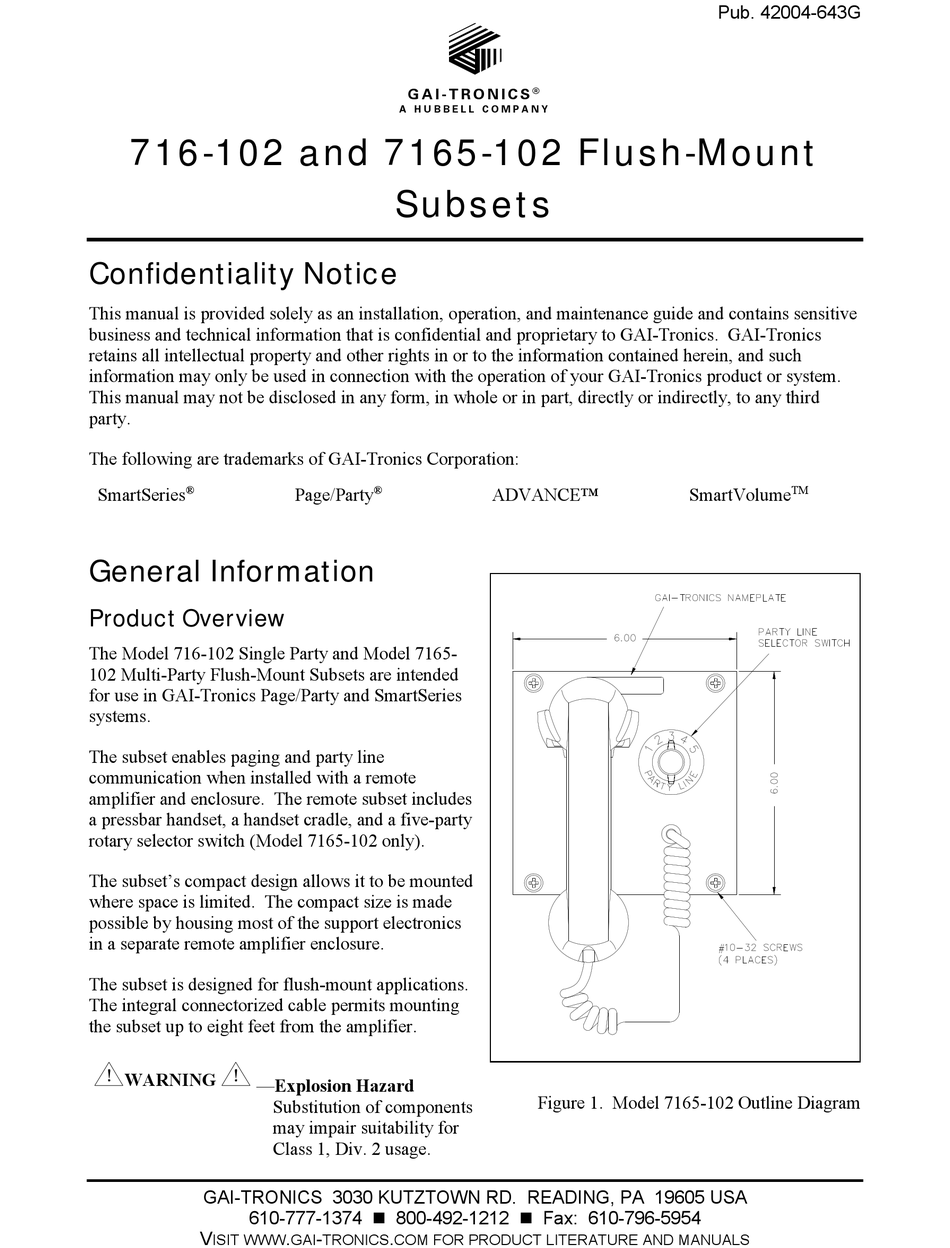

Figure 1. Model 7165-102 Outline Diagram
Pub. 42004-643G
TM
SmartVolume
