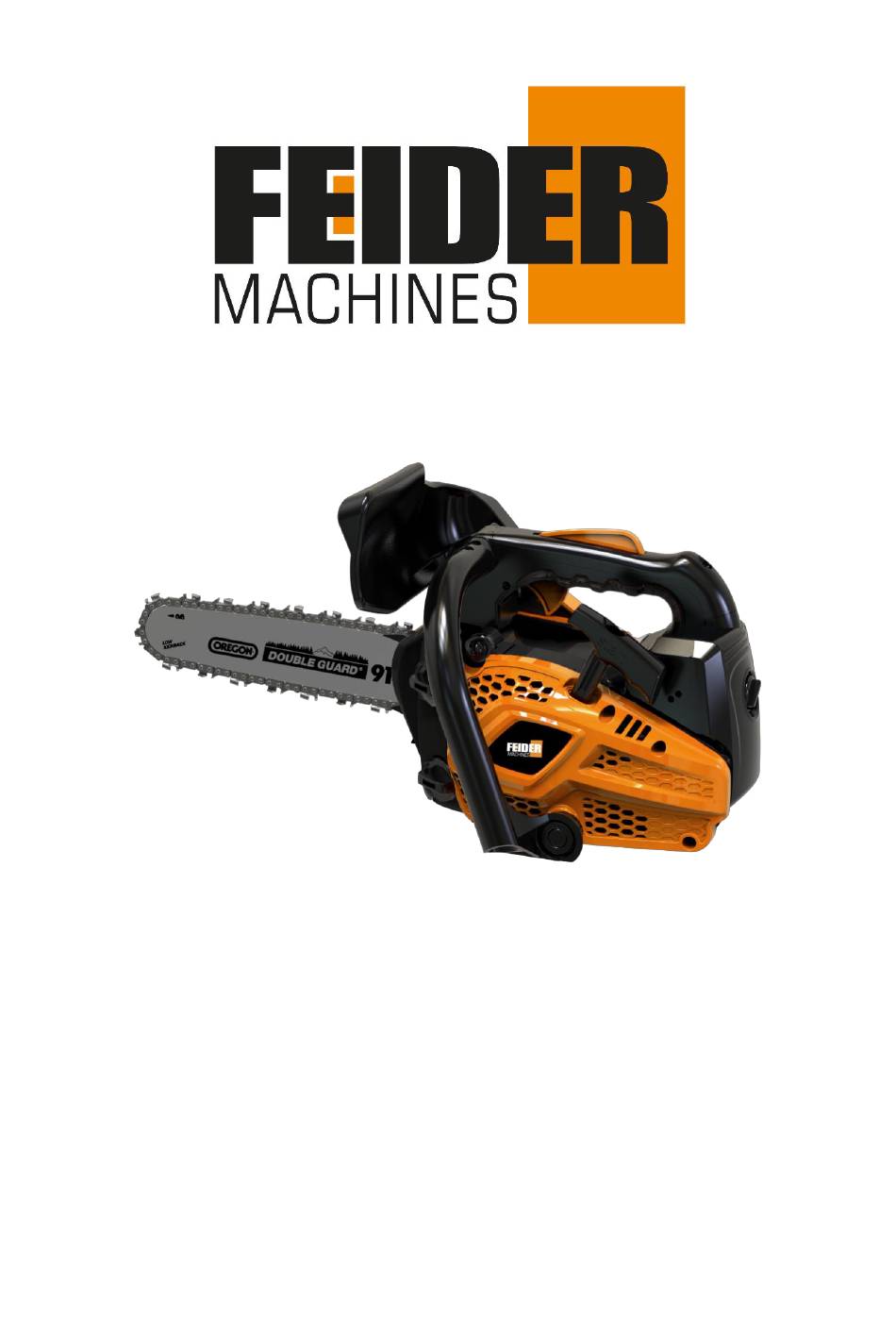

- Page 1 ORIGINAL INSTRUCTIONS >EN PETROL PRUNER FELPRO25-AC USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT........................... 8 3. ASSEMBLY............................. 9 4. FILLING THE TANK..........................11 5. OPERATION............................12 6. MAINTENANCE AND STORAGE..................... 18 7. DECLARATION OF CONFORMITY....................21 8. WARRANTY............................22 9. PRODUCT FAILURE........................... 23 10. WARRANTY EXCLUSIONS......................24... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS WARNING! When using this type of garden tool, basic precautions should always be followed to reduce the risk of fire, electric shock and injury. Read all instructions carefully before attempting to use this product and retain these instructions. - Page 4 “Technical Information” section of this manual or ask your dealer for advice. The risks of slipping and skidding must be foreseen as there is a high risk of kickback. Do not lean. Keep a good balance at all times. Do not lose your balance at the end of a cut. ...
- Page 5 hand" and "left hand" positions is reversed. When cutting a branch that is under stress, pay attention to the risk of elastic return. When the tension of the wood fibres is released, the spring-loaded limb may strike the operator and / or project the chain saw out of control.
- Page 6 Store the tool where fuel vapor will not reach a flame or spark. When transporting and storing, always place the tool in its transport guard and protective device on it. Causes of rebounds and prevention by the operator ...
- Page 7 WARNING: appropriate ear, eye and head protection must be worn. Value of sound emission according to European Directive 2000/14 / EC. Kickback：Never cut with the tip of the chainsaw. Do not operate the tool with one hand. Always hold it with both hands.
-
Page 8: Your Product
2. YOUR PRODUCT a. Description 1- Chain Brake Lever/Front Hand 10-Cable starter Protection Guar 11-Front handle 2- Chain 12-Oil reservoir 3- Chain Guide 13-Fuel Tank 4- Fastening nut 14-Switch 5- Engine 15-Starter 6- Ventilation opening 16-Fuel mixing bottle 7- Accelerator throttle 17-Blade protection 8- Safety Trigger 18-Assembly tool... -
Page 9: Assembly
The chain brake is a device that automatically stops the chain in case of backward movement, causing the saw to jump. The chain is the cutting device, installed on the chain guide. b. Technical data Model FELPRO25-AC Type of engine 1E34FC (air cooled 2-stroke petrol engine) Fuel Tank Volume 230cm³... - Page 10 4) Install the guide and mount the chain on the pinion and guide in the direction shown in the diagram. 5) Loosen the nuts and remove the chain cover. Attach the bracket to the back of the motor assembly with a screw. Install the guide and mount the chain on the pinion and guide in the direction shown in the diagram.
-
Page 11: Filling The Tank
While lifting the chain guide, turn the content screw to apply correct tension to the chain. Then lock the fastening nut. Rotate the chain with your hand to check that it is turning without excessive resistance and that it is properly tightened. Repeat the installation if the chain is not tight. -
Page 12: Operation
b. Filling the fuel tank Unscrew the fuel tank cap and remove it. Fill the tank slowly with the mixture. Do not exceed the maximum capacity (fill to 80% of its capacity preferably). Replace the cap on the fuel tank and tighten it ... - Page 13 Hold the chainsaw firmly against the ground. Put the chainsaw: Either on the left side of your body holding the handle firmly with your left hand. Use your right hand to pull the starter rope Either on the right side of your body holding the handle firmly with your right hand. Use your left hand to pull on the starter rope.
- Page 14 When checking the machine before using it, check the operating condition of the brake by performing the following operations: Start the engine and grasp the handle firmly with both hands. While pulling the throttle control lever to keep the chain in operation, push the brake lever down with the back of the left hand.
- Page 15 a. Using the Chainsaw in the Tree An analysis of accidents with chainsaws during tree pruning shows that the main cause is an inadequate use of the one-hand chainsaw. In a large majority of accidents, operators do not seek to adopt a safe working position that allows them to hold with both hands. This results in an increased risk of injury due to: The absence of a firm grasp of the chainsaw in case of rebound A lack of control of the chainsaw, which is more likely to come into contact with the climbing...
- Page 16 c. Starting the saw in the tree When starting the saw in the shaft, the operator should: Apply the chain brake before starting, and Hold the saw on the left side, either on the right side before starting: On the left side, hold the saw with your left hand on the front handle while holding the saw away from the body while pulling the starter rope with your right hand, or ...
- Page 17 tree trunk. Before bending a branch or trunk in bending, observe the direction of bending and finish the cut opposite the bending side to prevent the chain guide from getting stuck in the cut. a. Felling of trees Examine the work area and estimate where the tree will fall. Start the machine as described above. Start by making a notch in the direction of fall chosen.
-
Page 18: Maintenance And Storage
6. MAINTENANCE AND STORAGE 1. Maintenance Before any maintenance work, the machine must be switched off and completely cooled. Perform the maintenance work according to the instructions below and perform them regularly. A clean, well-maintained machine increases its standard of living and efficiency. On the contrary, a machine maintained can cause damage, accidents and render the tool inoperable in the short term. - Page 19 e. Guide bar Cleaning: Remove bar guide to remove dirt from grooves and oil inlet. Regularly grease the pinion. Check: Reverse the bar from time to time to avoid the effects of wear. The bar rail should always be in place. Use a ruler to observe it. If a gap is observed between them, then the rail is normal. Otherwise, the rail is worn out.
- Page 20 h. chain saw Check each time the cutter and cutting angles are as shown below. i. Sharpening of the chain For best performance, we strongly recommend that you periodically sharpen the chain. The chain can either be sharpened by a professional or by yourself by providing you with a sharpening guide (make sure you know how to use it).
-
Page 21: Declaration Of Conformity
BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Declares that the machinery designated below: PERTROL PRUNER FELPRO25-AC Serial number: 20230703131-20230703530 Complies with the provisions of the Directive "machinery" 2006/42/EC and regulations National transposing it;... -
Page 22: Warranty
8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 23: Product Failure
9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 24: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 25 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
