LARSON EXPCMR-ALG-OZ-IC-1080PLE1-1227-250C-QD-15C-12.4 Quick Installation And User Manual

EXPCMR-ALG-OZ-IC-1080P-
LE1-1227-250C-QD-15C-12.4
Motorized Auto-focus Infrared Bullet
Camera Quick Installation and User Guide
The EXPCMR-ALG-OZ-IC-1080P camera delivers 1080p high-definition video resolution over
RG59 coax or any standard analog CCTV cabling. It features a motorized 5 ~ 50 mm vari-
focal lens with auto-focus. These HD video camera is ideal for long range security
applications that require high detail, such as facial recognition or license plate identification.
Features
2 MP CMOS image sensor w 1080p video output
•
HD-TVI technology produces 1080p HD video for sharp, detailed images
•
5 ~ 50 mm motorized vari-focal lens with viewing angle of 59.8° ~ 6° and auto-focus
•
True day/night (ICR) captures sharp, clear images in low light and at night
•
OSD (On-Screen Display) controls for customizing the camera settings for the installation venue
•
-40 °F ~ 140 °F temperature operating range
•
IP66 weather-rated housing
•

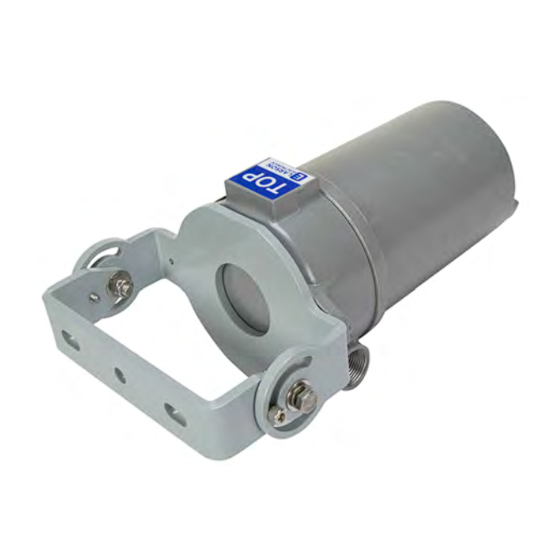

EXPCMR-ALG-OZ-IC-1080P-1227 Camera
This unit must be installed by a licensed electrician in accordance to
NFPA 70 / NEC Code Book Article 500.
Mounting
The EXPCMR-ALG-OZ-IC-1080P-LE1-1227-250C-QD-15C-12.4 explosion proof
security camera & LED light combination fixture is secured to flat surfaces, such
as a ceiling or wall, using and adjustable reverse pedestal style brackets. The
included mounting bracket allows 90° vertical adjustment and 360° of swivel for
precision aiming. The camera and the light each have their own bracket for
mounting reliability and are connected via piping for increased strength and
mounting durability.
Larson Electronics LLC - 1.800.369.6671 - sales@larsonelectronics.com - larsonelectronics.com
1
2 x 3/4" NPT hubs are available for running connections to and from the unit via conduit.
Wiring Instructions
This unit is designed to operate on 120-240V AC. The camera is connected to
250` of 12/4 SOOW cord with an explosion proof male plug. An explosion proof
female connector that attaches/connects to the explosion proof plug is equipped
with 15` of 12/4 SOOW cord with blunt cut end, completing the wiring
configuration. Both the explosion proof plug and explosion proof connector are
constructed of non-sparking aluminum.
Connect a copper wire to the plus and negative receptacles on the convertor making note of
which color you use.
Connect the second adaptor that will hook into the DVR. Make sure to use the same colors for
positive and negative on both ends.
