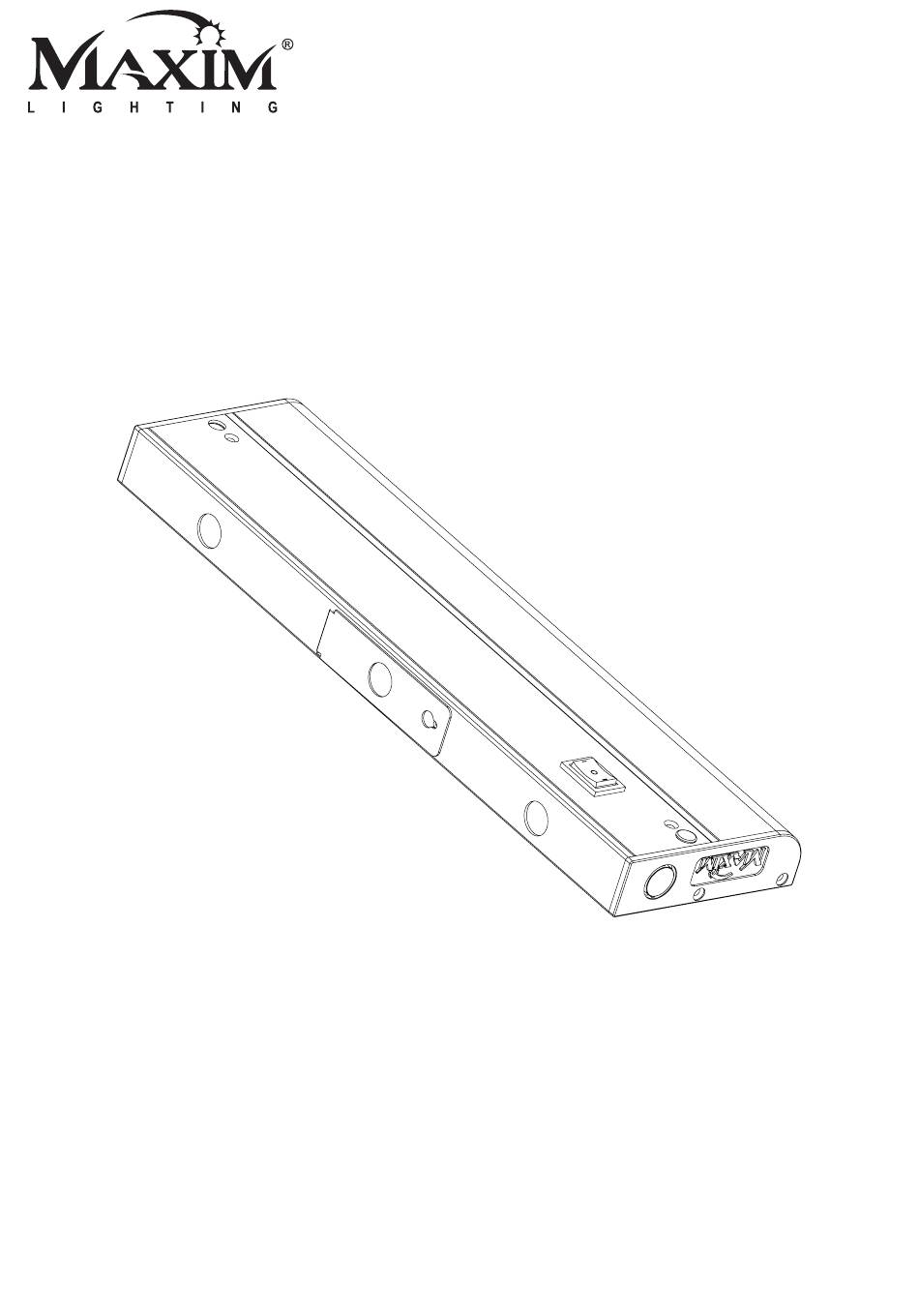

- Page 1 PRODUCT NAME: CounterMax MX-L-120-1K Under cabinet ITEM NUMBER: 89850 Please consult a qualified electrician for hanging fixture and wiring. Light Source : LED Integrated 3W/5W/8W/12W/16W/20W 120V/60Hz Made in China / Hecho én China /Fabrique en China Page 1 of (5)
- Page 2 Before Getting Started Antes de comenzar Avant de commencer Read the instructions carefully prior to assembling Lire attentivement les instructions avant d'assembler Lea atentamente las instrucciones antes de the product. le produit. ensamblar el producto. When you open the package with a sharp tool Lorsque vous ouvrez le paquet avec un outil pointu Cuando abra el paquete con una herramienta like a cutter knife, be careful not to damage the...
- Page 3 LAMP Romex Connector SCREW WIRING NUTS Page 3 of (5)
- Page 4 Fix the fixture to the unit using 2 fixing screws Remove the kock-out by hammering Disengage adapter plate by loosening screw. Insert romex connector into the housing open hole on the adapter plate. Secure it with the nut. Fixture Black wire Fixture White Fixture Green...
- Page 5 KNOCK OUT DIAGRAM Page 5 of (5)
