UH-016B/UB-016B/DSC-016B
UHF MICROPHONE & BODYPACK
OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG
16 UHF FREQUENCIES
- ENGLISH
- DEUTSCH

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UH-016B and is the answer not in the manual?

Questions and answers

Related Manuals for RCS UH-016B

Summary of Contents for RCS UH-016B

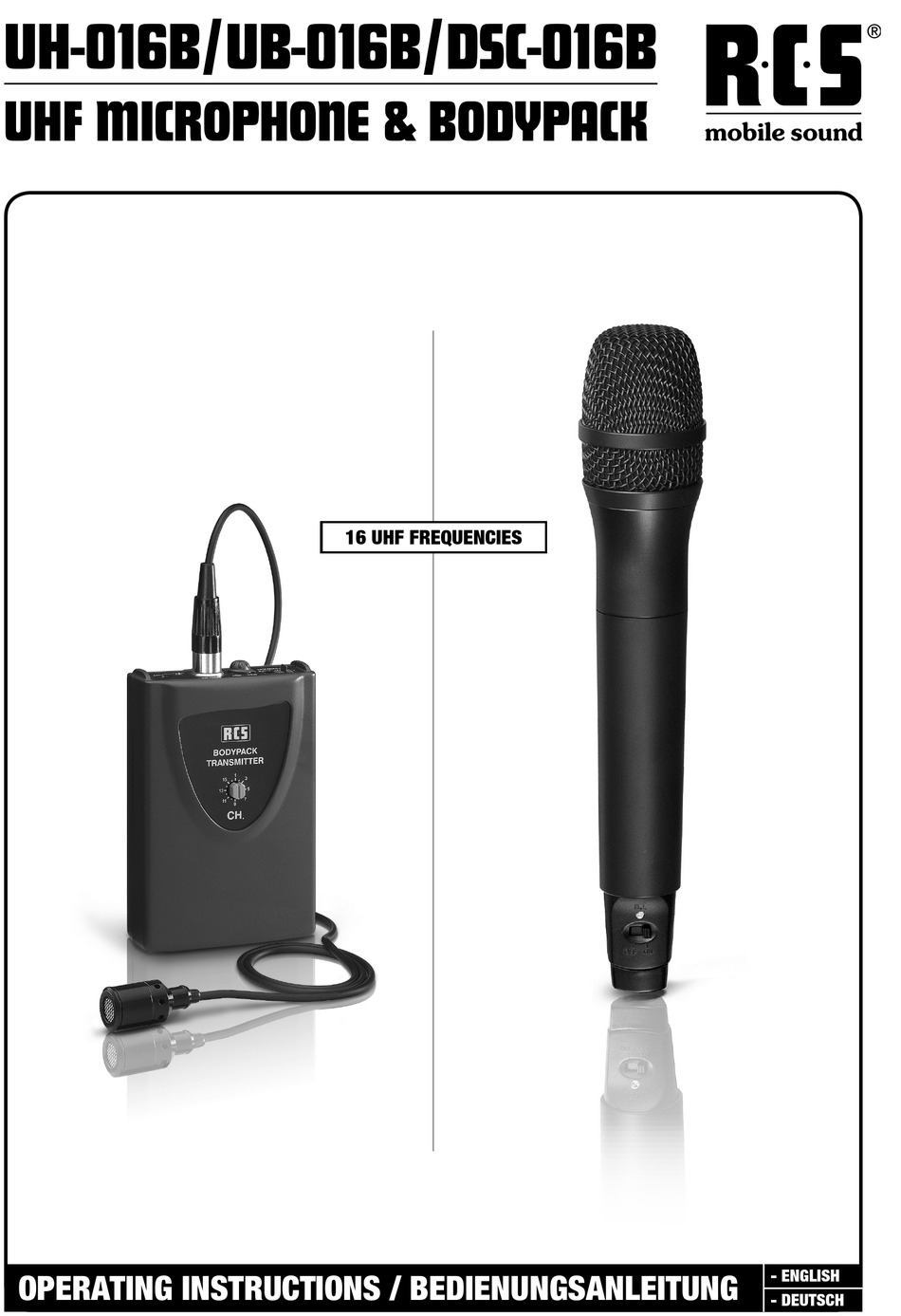

  • Page 1 UH-016B/UB-016B/DSC-016B UHF MICROPHONE & BODYPACK 16 UHF FREQUENCIES - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...

  • Page 2: Safety Instructions

    Originalverpackung. Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.

  • Page 3: Acoustic Feedback

    UH-016 B / UB-016 B GENERAL INFORMATION REFERING ALLGEMEINES ZU UHF RECEIVER AND TRANSMITTERTECHNICS UHF SENDE- UND EMPFANGSTECHNIK Before implementing the UHF-Transmitter needs to be Vor Inbetriebnahme stimmen Sie bitte den UHF-Sender aligned with the UHF-Receiver. und den UHF-Empfänger aufeinander ab. Please open the battery-tray of the Hand microphone UH- Öffnen Sie hierzu das Batteriefach des Handmikrofon UH- 016 for this.

  • Page 4: Operating Details

    UH-016 B / UB-016 B UHF HAND-MICROPHONE UH-016B UHF HANDMIKROPHON UH-016B D E F 1. Protective grid 1. Schutzgitter protects the microphonecapsule and has an additional schützt die Mikrophonkapsel und ist zusätzlich mit einem integrated wind deflector integrierten Windschutz versehen.
  • Page 5 UH-016 B / UB-016 B UHF-BODYPACK TRANSMITTER UB-016 UHF-TASCHENSENDER UB-016 1. Transmitting antenna 1. Sendeantenne 2. Operating-LED and Display of battery-condition 2. Betriebs-LED und Batteriezustandsanzeige: After switching ON the LED glows green and with this Nach dem Einschalten leuchtet die LED grün und zeigt shows normal battery-status.

  • Page 6: Operational Control

    DSC-016 UHF-RECEIVERMODULE DSC-016 UHF EMPFANGSMODUL DSC-016 Notice: The UHF-Receivermodule DSC-016 is included in Hinweis: das UHF Empfangsmodul DSC-016 ist in der U1- the U1-version as 1-channel-unit, in U2-version as 2-chan- Version 1 x, in der U2-Version als 2-kanalige Empfangsein- nel-unit. Backfitting of the units is possible afterwards, f.e. heit enthalten.

  • Page 7: Technical Data

    UH-016 B/UB-016 B TECHNICAL DATA Technical data UH-016 B (TRANSMITTER) Technical data UB-016 B (RECEIVER) Microphone-type: dynamic Frequency range: 863-865 MHz Frequency range: 863-865 MHz Frequency response: 50 Hz – 18 KHz Frequency response: 50 Hz – 15 KHz RF Output Power: 10 mW RF Output Power: 10 mW...
  • Page 8 Techische Änderungen in Hardware und Software vorbehalten. Lieferung durch (Delivered by): © Copyright by RCS AUDIO-SYSTEMS GmbH. RCS07.12.2016 Publication and duplication of the contained data only allowed with our strict permission. Veröffentlichung und Vervielfältigung der enthaltenen Daten, auch auszugsweise, nur mit unserer ausdrücklichen Genehmigung.
