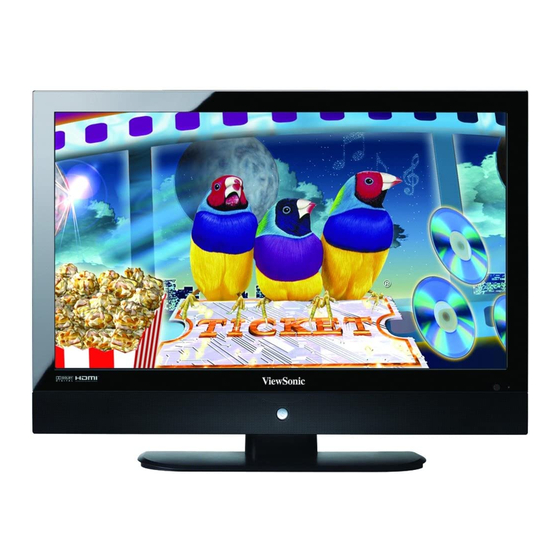

N4285p
LCD TV
IMPORTANT: Please read this User Guide to obtain important information on
installing and using your product in a safe manner, a s well as registering your
product for future service. Warranty information contained in this User Guide will
describe your limited coverage from ViewSonic Corporation, which is also found
on our web site at http://www.viewsonic.com in English, or in specif c languages
using the Regional selection box in the upper right corner of our website.
"Antes de operar su equipo lea cuidadosamente las instrucciones en este manual"
ViewSonic
All manuals and user guides at all-guides.com
®
®
- User Guide
- Guide de l'utilisateur
- Guía del usuario
Model No. : VS11983-1M
Advertisement
Table of Contents
Related Manuals for ViewSonic N4285p
Summary of Contents for ViewSonic N4285p
- Page 1 Warranty information contained in this User Guide will describe your limited coverage from ViewSonic Corporation, which is also found on our web site at http://www.viewsonic.com in English, or in specif c languages using the Regional selection box in the upper right corner of our website.
-
Page 2: Table Of Contents
Antenna Installation Instructions ..............5 Cleaning the LCD TV ..................5 Getting Started Package Contents ................... 6 Mounting ViewSonic LCD TV to the wall ............6 Front View of the Product ................7 Rear View of the Product ................8 Remote Control ....................9 Installation ....................... -
Page 3: Compliance Information
The mark shown to the right is in compliance with the Waste Electrical and Electronic Equipment Directive 2002/96/EC (WEEE). The mark indicates the requirement NOT to dispose the equipment as unsorted municipal waste, but use the return and collection systems according to local law. ViewSonic N4285p... -
Page 4: Declaration Of Rohs Compliance
3. Lead in high temperature type solders (i.e. lead-based alloys containing 85% by weight or more lead). 4. Lead as an allotting element in steel containing up to 0.35% lead by weight, aluminium containing up to 0.4% lead by weight and as a cooper alloy containing up to 4% lead by weight. ViewSonic N4285p... -
Page 5: Important Safety Instructions
15. This product is only to perform the useful function of entertainment and visual display tasks are excluded. ViewSonic N4285p... -
Page 6: Copyright Information
Purchase Date: Product disposal at end of product life ViewSonic is concerned about the preservation of our environment. Please dispose of this product properly at the end of its useful life. Your local waste disposal company may provide information about proper disposal. -
Page 7: Antenna Installation Instructions
LCD TV screen or ® case. Some chemical cleaners have been reported to damage the screen and/or case of the LCD TV. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. -
Page 8: Getting Started
• Do not install near heat source, or strong magnetic fields. • Use only ViewSonic approved wall-mounting brackets to support the LCD TV weight. • Before attaching the wall mount plate to the back cover, ensure the product is working. -
Page 9: Front View Of The Product
1. Press VOL+ and MENU buttons at the same time to lock power button, and press VOL+ and MENU buttons again to unlock it. 2. Press VOL- and VOL+ buttons at the same time to lock OSD menu, and press VOL- and VOL+ buttons again to unlock it. ViewSonic N4285p... -
Page 10: Rear View Of The Product
Connect this port to your A/V device with audio in (RCA) connectors or to audio amplifier. Air/Cable input jack Connect the coaxial (RF) connector from Antenna/ Cable/ Digital cable. SPDIF Optical output Connect this port to the SPDIF input of A/V device. ViewSonic N4285p... -
Page 11: Remote Control
All manuals and user guides at all-guides.com Remote Control ViewSonic N4285p... - Page 12 Volume mute ON/OFF TV/CATV Swap between TV/CATV PICTURE Select picture modes WIDE Change the image size RETURN Return to previous channel CH▲ and CH▼ Adjust Channel UP/DOWN FAV.CH Select from preset Favorite Channels MENU On Screen Display (OSD) menu ON/OFF ViewSonic N4285p...
-
Page 13: Installation
“Cable” in the Auto Scan function. See page 23. Note: Users can select either Air or Cable TV cable to be connected to the TV/DTV IN jack. To watch both of them, use an adapter to connect both Air and Cable cables to the jack. ViewSonic N4285p... - Page 14 Connect Video/ Audio cables from compatible devices into the back panel of LCD TV. 1) With AV cable: RCA A/V Cable (not supplied) VCR or DVD Player 2) With S-Video cable: S-Video Cable (not supplied) Audio Cable (not supplied) VCR or DVD Player ViewSonic N4285p...
- Page 15 VCR or DVD Player HDMI Cable (not supplied) 5) With DVI 1 (HDMI 1) cable [for AV device]: Audio Cable (not supplied) (DVD Player should have the HDMI-DVI output terminal) VCR or DVD Player HDMI-DVI Cable (not supplied) ViewSonic N4285p...
- Page 16 Connect the audio output terminal of the LCD TV to audio in terminal of the stereo system (stereo system sold separately). Audio Cable (not supplied) Stereo system 5. Connecting to the Headphone Connect the headphone to the headphone output terminal of the LCD TV. (Headphone sold separately). Headphone (not supplied) ViewSonic N4285p...
- Page 17 Connect the HDMI-DVI cable from the DVI output of the computer to the HDMI terminal input of the LCD TV. Also, Connect the Audio cable (green) from audio output of your Computer to the audio input terminal (green) of your LCD TV. PC Audio Connection (not supplied) HDMI-DVI Cable (not supplied) ViewSonic N4285p...
- Page 18 Connect the power cord to the AC inlet on the back of your LCD TV, after all connections have been completed, and plug the other end of the power cord into a correctly grounded electrical outlet. AC wall socket ViewSonic N4285p...
-
Page 19: Basic Operation
To display the current information of the LCD TV: Press INFO, and the current state will be displayed on the screen. (It shows all or some of the information about Input, Channel, Resolution, Audio Type, etc., depending on what input source it is in.) ViewSonic N4285p... - Page 20 Zoom x 2, Zoom x 4, Zoom x 1/4, and Zoom x 1/2 sizes. Wide Repeatedly press WIDE button to select the aspect ratio of screen. You can select between No scale, Normal, Full, Letterbox, Zoom, and Panorama. ViewSonic N4285p...
- Page 21 • Use ▲▼ to select the control you want to adjust. • When selecting the control with II►, press ENTER to enable the function. • Press ◄► to adjust or select the settings. • Press MENU to exit from the OSD menu. ViewSonic N4285p...
-
Page 22: Osd Functions
Contrast: To adjust contrast of video. (right: Max, left: Min.) • Color: To adjust color. (right: brilliant color, left: pale color.) • Tint: To adjust tint level. (right: greenish tone, left: reddish tone.) • Sharpness: To adjust picture sharpness. (right: sharper, left: softer.) ViewSonic N4285p... -
Page 23: Audio Menu
＊Phase: To adjust delay time of phase in order to reduce the noise of picture. ＊Clock: To adjust delay time of clock in order to reduce the noise of picture. Audio Menu — To set the audio quality and status In TV source: ViewSonic N4285p... -
Page 24: Tv Menu
TV Menu — To set up for TV It is only active in TV source. • Tuner Mode: To select Cable or Air as the TV source. Select “Cable” if you want to watch Cable TV channels, and select Air to watch Air TV channels. ViewSonic N4285p... -
Page 25: Setup Menu
Setup Menu — To set up OSD window In TV, AV, S-Video, YPbPr 1, YPbPr 2, HDMI 1, HDMI 2 source: Note: When in AV, S-Video, YPbPr 1, YPbPr 2, HDMI 1 or HDMI 2 source, the TV option on the left does not appear. ViewSonic N4285p... - Page 26 Timer: To set power-on and power-off time. ＊Sleep Timer: To set the off timer from 10~120 minutes. ＊Auto Sleep: To set the off timer for longer intervals -- 1 hour, 2 hours, or 5 hours. ViewSonic N4285p...
- Page 27 Font Opacity: To select font opacity from Solid, Translucent, or Transparent. Background Color: To select background color. Background Opacity: To select background opacity. Window Color: To select window color. Window Opacity: To select window opacity. ＊ • Memory Recall: To restore the factory default settings. ViewSonic N4285p...
-
Page 28: Parental Menu
Enter password and the screen below will show. (The default password is 0000.) • Channel Block: To block channels. Use ▲▼ to select the channel you want to block, and then press ENTER to block or unblock it. ViewSonic N4285p... - Page 29 TV-MA Mature audience only Use ENTER button to block or unblock the ratings, and use MENU to exit. ＊U.S. Movie Ratings: To adjust movie blocking level in the US. You can select between G, PG, PG-13, R, NC-17, or X. ViewSonic N4285p...
- Page 30 18 ans + Reserved to adults 13 ans + Not appropriate for children of less than 13 years Use ENTER button to block or unblock the ratings, and use MENU to exit. ＊Block Unrated: To block unrated movie or TV programs. ViewSonic N4285p...
- Page 31 Note: Please make sure you remember your new password after changing, because you cannot recall the default setting of the password by any selection. • Clear All: To clear all the locks set before, press ENTER, and then select “OK” to confirm. ViewSonic N4285p...
-
Page 32: Other Information
Preset Timing Mode (Pre-adjusted to GTF® 1360 x 768 @ 60 Hz) Warning: Do not set the graphics card in your computer to exceed these refresh rates; doing so may result in permanent damage to the LCD TV. Note: Product Specifications are subject to change without notice. ViewSonic N4285p... -
Page 33: Troubleshooting
• Press MENU button on the remote control to see if there is a MENU shown on the screen. • Press only one button at a time and it is the correct one for the operation you want to perform. ViewSonic N4285p... - Page 34 • Is the image positioned correctly? off/with sidebar • Are screen mode adjustments such as picture size set correctly? screen • Press WIDE button repeatedly on the remote control to see if you can get the picture you prefer. ViewSonic N4285p...
-
Page 35: Customer Support
(866) 463 4775 Renta y Datos, 29 SUR 721, COL. LA PAZ, 72160 PUEBLA, PUE. Tel: 01.222.891.55.77 CON 10 LINEAS Electroser, Av Reforma No. 403Gx39 y 41, 97000 Mérida, Yucatán. Tel: 01.999.925.19.16 Other places please refer to http://www.viewsonic.com/la/soporte/index.htm#Mexico ViewSonic N4285p... -
Page 36: Limited Warranty
How long the warranty is effective: ViewSonic LCD TV are warranted for one (1) year for all parts excluding the light source and one (1) year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. -
Page 37: Mexico Limited Warranty
& accessories. How long the warranty is effective: ViewSonic LCD TVs are warranted for 1 year for all parts excluding the light source and 1 year for labor from the date of the first customer purchase. Who the warranty protects: This warranty is valid only for the first consumer purchaser. - Page 38 Tel: 01(52)95-15-15-22-22 E-Mail: rrrb@sureste.com Fax: 01(52)95-15-13-67-00 E-Mail. gpotai2001@hotmail.com Tijuana: FOR USA SUPPORT: ViewSonic Corporation Av Ferrocarril Sonora #3780 L-C 381 Brea Canyon Road, Walnut, CA. 91789 USA Col 20 de Noviembre Tel: 800-688-6688 (English); 866-323-8056 (Spanish); Tijuana, Mexico Fax: 1-800-685-7276 E-Mail: http://www.viewsonic.com...
