imoware HMV-422-4K User Manual

4x2 seamless video multiviewer matrix
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

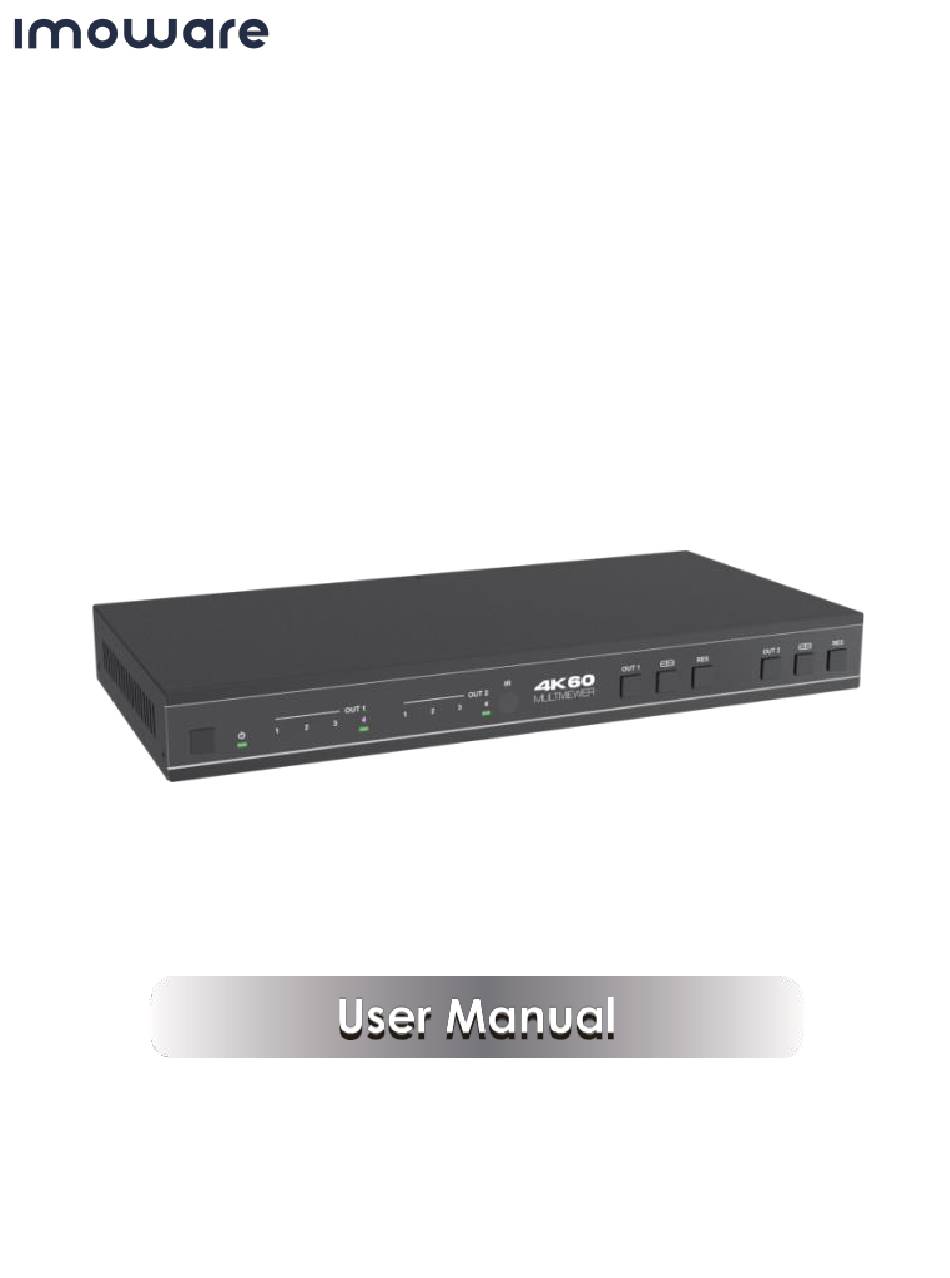

4x2 Seamless
Video Multiviewer Matrix
HMV-422-4K
VER 1.1
The information contained in this document is non-contractual and is subject to change without notice

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HMV-422-4K and is the answer not in the manual?

Questions and answers

Summary of Contents for imoware HMV-422-4K

  • Page 1 4x2 Seamless Video Multiviewer Matrix HMV-422-4K VER 1.1 The information contained in this document is non-contractual and is subject to change without notice...

  • Page 2: Table Of Contents

    Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
  • Page 3 11. Controller Software Operation Guide..........11 11.1 Installation & Connection............11 11.2 Controller Main Interface............13 12. RS-232 Command ................16 13. Application Example................. 24 The information contained in this document is non-contractual and is subject to change without notice...

  • Page 4: Introduction

    1. Introduction This 4x2 Seamless Video Multiviewer Matrix was developed for the purpose of supporting higher output resolution (4K@60) for multiple sources on two screens. It can accept 4 HDMI input digital sources and combine four video signals onto two HDMI UHD or HD monitors independently. The user can manage each input, and create combinations of the four inputs on two displays, as well as adjust the position of any input.

  • Page 5: Package Contents

    3. Package Contents ① 1 x 4K60 4x2 Multiviewer Seamless UHD Video Matrix Switcher ② 1 x IR Remote ③ 1 x 3pin-3.81mm Phoenix Connector (male) ④ 1 x 38KHz IR Wideband Receiver Cable (1.5 meters) ⑤ 2 x Mounting Ears ⑥...

  • Page 6: Operation Controls And Functions

    Connection Input ports 4 x HDMI IN [Type A, 19-pin female] 2 x HDMI OUT [Type A, 19-pin female] 2 x Output ports L/R OUTPUT [RCA] 2 x OPTICAL OUTPUT [S/PDIF] 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x Control ports IR EXT [3.5mm Stereo Mini-jack] Mechanical Housing...
  • Page 7 Name Function Description Signal source indicator for the HDMI OUT 1 port. In single screen display mode, when the HDMI OUT 1 port outputs the OUT 1 LEDs signal from the HD 1/2/3/4 port, the corresponding green LED will be on. In multiview mode, all OUT 1 LEDs will light in green.

  • Page 8: Rear Panel

    5.2 Rear Panel Name Function Description L/R OUT 1 PCM2.0 Analog audio output port. OPTICAL OUT 1 Optical fiber digital audio output port. HDMI signal output port, connected to HDMI display device such HDMI OUT 1 as TV or Monitor with HDMI cable. L/R OUT 2 PCM2.0 Analog audio output port.

  • Page 9: Ir Remote

    6. IR Remote ① Power button: Press this button to power on the switcher or set it to standby mode. ② OUT 1/OUT 2 buttons: HD 1/2/3/4: Press these buttons to select input source in single screen display mode, and the corresponding input LED on the front panel will light in green.

  • Page 10: Edid Settings

    Mute: Press this button to mute / unmute the audio. RES: Output resolution switching button. ▪ Short press the RES button to circularly switch the output resolution of the HDMI OUT 1/2 port (Please refer to the output resolution list of “8.

  • Page 11: Video & Audio

    8. Video & Audio The switcher supports multiple resolution video input up to 3840x2160@60, and supports multiple audio formats (PCM2.0/5.1/7.1CH, Dolby Digital/Plus/ EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio) pass-through function via HDMI cable. The switcher supports following video output resolutions via a powerful scaling engine.

  • Page 12: Osd Menu Navigation

    10. OSD Menu Navigation (1) A total of eight buttons on the IR Remote are used for OSD menu navigation, including OUT 1, OUT 2, Exit, , OK. Menu contents are as follows: 4096x2160p 60Hz/ 4096x2160p 50Hz/ 3840x2160p 60Hz/ 3840x2160p 50Hz/ 3840x2160p 30Hz/ 3840x2160p 25Hz/ Resolution...
  • Page 13 Win1 Select HDMI1,HDMI2,HDMI3,HDMI4 Win2 Select HDMI1,HDMI2,HDMI3,HDMI4 4 x WIN Win3 Select HDMI1,HDMI2,HDMI3,HDMI4 Win4 Select HDMI1,HDMI2,HDMI3,HDMI4 MODE 1, 2 Aspect Full, 16:9 WIN1,HDMI1,HDMI2,HDMI3, Audio Select WIN1 AUDIO HDMI4 AUDIO-MUTE ON, OFF English, 中文 English Language/语言 4K60-2.0,4K60-5.1CH, 4K60-7.1CH,4K30-2.0CH, 4K30-5.1CH,4K30-7.1CH, 1080P-2.0CH,1080P-5.1CH, 4K60-2.0 EDID 1080P-7.1CH,1920x1200- 2.0CH,1680x1050-2.0CH, System...

  • Page 14: Controller Software Operation Guide

    11. Controller Software Operation Guide 11.1 Installation & Connection Follow the steps below to install the Controller software. Step 1. Double-click the following driver to install the Controller software. Step 2. Select “Anyone who uses this computer (all users)”, and then click “Next”.
  • Page 15 Follow the steps below to connect the Controller software and the device. Step 1. Connect the RS-232 port of the switcher to a PC with an RS-232 serial cable and an USB to RS-232 serial cable, as shown in the figure below. ound 3-pin Phoenix connector RS-232...

  • Page 16: Controller Main Interface

    11.2 Controller Main Interface ■ General Page You can do the following operations on the General page: Control Mode Select: Select the “COM Control Mode”. (TCP/IP control ① is not supported temporarily, so the TCP/IP Control Mode is disabled.) ② COM Control Mode: Select the Port number and Baud Rate of the device.
  • Page 17 ■ Output Page You can do the following operations on the Output page: ① Multi-View Adjustment: Click to select the desired screen display mode. There are eight modes available: SINGLE-PIP-PBP(1)-PBP(2)-Triple(1)- Triple(2)-Quad(1)-Quad(2). ② PIP Adjustment: In the PIP mode, you can switch the location and size of the PIP and set the user-defined PIP, as shown in the following table.
  • Page 18 ⑤ Aspect: Click “Full Screen” or “16:9” to switch the display aspect. Only the following modes are available: PBP(1)-PBP(2)-Triple(1)-Triple(2) -Quad(2) ⑥ Auto Switch: Enable or disable the function of automatically switching input signal source, available only in SINGLE mode. ⑦ Output Setting: Set the output resolution, video keep alive, PC/Video PQ, HDCP, audio source and audio output.

  • Page 19: Rs-232 Command

    12. RS-232 Command The product also supports RS-232 command control. Connect the RS-232 port of the product to a PC with a 3-pin phoenix connector cable. Then open a Serial Command tool on PC to send ASCII commands to control the product. The ASCII command list about the product is shown as below.
  • Page 20 Command Code Default Function Description Example Feedback Output Setting Set Output y Resolution (y=1~2, x=1~14) y=1. output 1 y=2. output 2 1. 4096x2160p60, 2. 4096x2160p50, 3. 3840x2160p60, 4. 3840x2160p50, 5. 3840x2160p30, output 1 resolution: 3840x2160p s output y res x! s output 1 res 3! 6.
  • Page 21 Default Command Code Function Description Example Feedback EDID Setting Set HDMI input EDID mode (x=1~19) 1. 4K2K60_444,Stereo Audio 2.0 2. 4K2K60_444,Dolby/DTS 5.1 3. 4K2K60_444,HD Audio 7.1 4. 4K2K30_444,Stereo Audio 2.0 5. 4K2K30_444,Dolby/DTS 5.1 6. 4K2K30_444,HD Audio 7.1 7. 1080P,Stereo Audio 2.0 4K2K60_ input EDID:4K2K 8.
  • Page 22 Default Command Code Function Description Example Feedback Get output y audio mute on/off output 1 audio r output y audio r output 1 audio (y=1~2) mute off mute! mute! 1. output 1 2. output 2 Single Screen Mode Setting Enable/disable auto switch feature (y=1~2,x=0~1) auto switch y=1.
  • Page 23 Default Command Code Function Description Example Feedback Select output z one input for one display window for the current Multiview mode. (z=1~2) 1. output 1 2. output 2 (x=1~4) output 1: s output 1 s output z 1. window 1 window 1 select 2.
  • Page 24 Default Command Code Function Description Example Feedback Set the border color of the specified window. (z=1~2) 1. output 1 2. output 2 (x=1~4) 1. window 1 2. window 2 3. window 3 s output z s output 1 output 1 window 1 4.
  • Page 25 Default Command Code Function Description Example Feedback Get output y PIP window position output 1 PIP on r output y PIP (y=1~2) r output 1 PIP 1. output 1 position! position! right top 2. output 2 Get output y PIP window size (y=1~2) 1.
  • Page 26 Default Command Code Function Description Example Feedback Get output y triple windows display mode output 1 triple r output y triple r ouput 1 triple (y=1~2) mode 1 mode! mode! 1. output 1 2. output 2 Set output y triple windows display aspect ratio (y=1~2) 1.

  • Page 27: Application Example

    13. Application Example 24 / 24...
