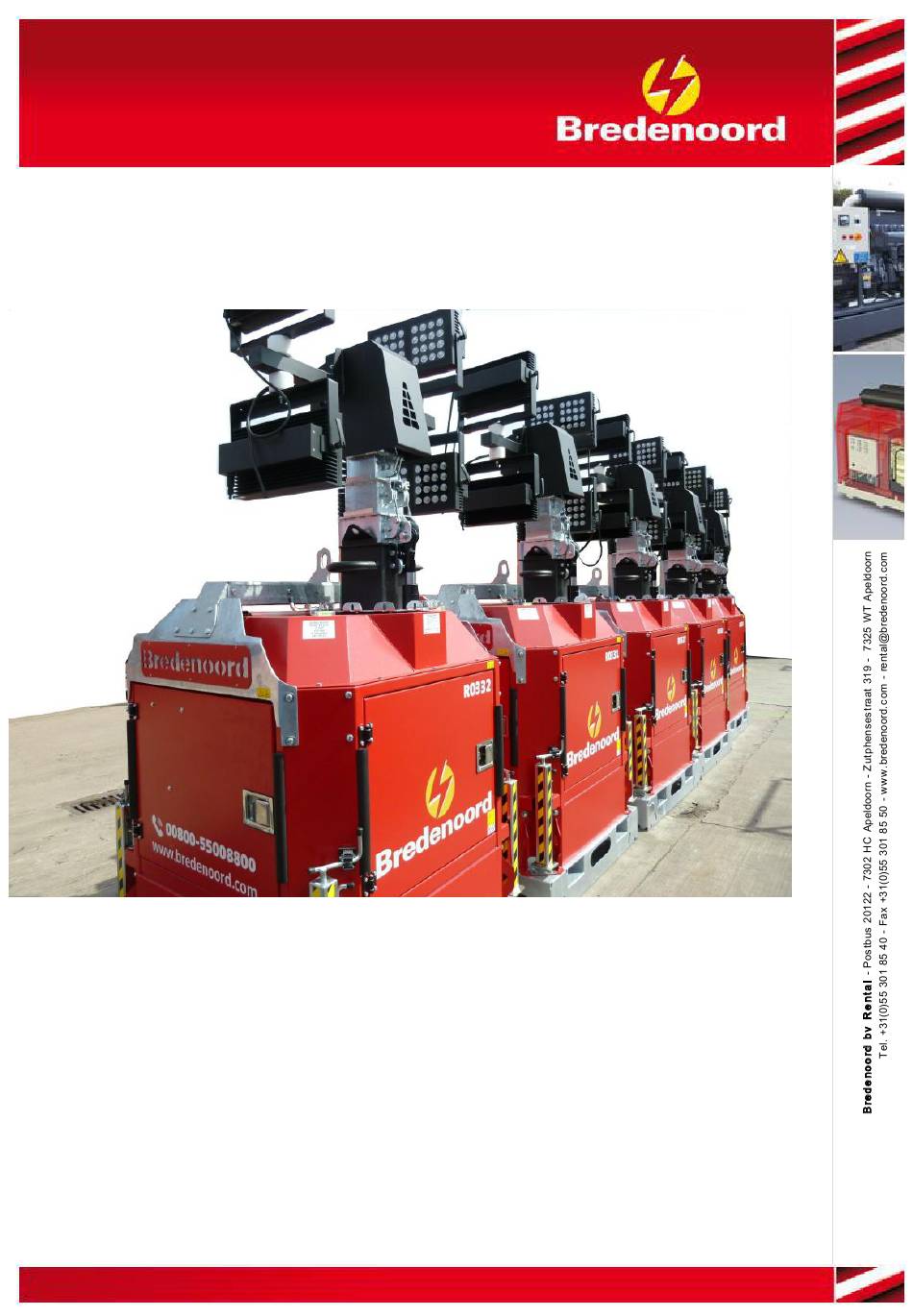

- Page 1 Operation manual Power light tower R0292 - R0306 10/31/2016 Bredenoord Aggregaten B.V. Zutpensestraat 319 7325 WT APELDOORN Tel: 055-3018501 Fax: 055-3018500 E-mail: info@bredenoord.com Internet: www.bredenoord.com www.bredenoord.com © Bredenoord bv 2016...
-
Page 2: Table Of Contents
Manual start and stop ........................... 9 Starting with timer ........................... 10 Starting with lightsensor ........................... 11 ........................... 13 Components ........................... 14 Moving the PLM ........................... 15 Expiring of the warranty ........................... 16 Appendix: Timer Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 3: Complete Operation Manual
Complete operation manual Power light tower R0292 - R0306 Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 4: Safety Measures And Symbols
Every other use of the Fixed Light Tower than that described in this user manual, can lead to a dangerous work ing situation, both for the Fixed Light Tower and user(s). Bredenoord bv refuses to accept responsibility for any claim of damage or human harm which has occurred because of not following the instructions in this manual or by lack of care during use, installation, service, maintenance or repair of the Fixed Light Tower. - Page 5 It is not permitted to make adjustments in the control panel other than by a qualified electrician. In all other cases only allow the installation to be adjusted by an employee of Bredenoord. When you make adjustments yourself or have adjustments made, the firm Bredenoord is not in any way responsible for possible damage as a result of incorrect installation of the genset.
-
Page 6: Installation Plm
· Pull the pin (3) up and pull the stabilizer till pen (3) falls into it's corresponding hole. · Drop the stabilizer by turning the lever (4) and level the Light tower horizontal · Ground the Light Tower with the earth stud on the outside of the housing. Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 7: Fuel Supply
Fuel supply This generator only uses the internal fuel tank. Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 8: Bleeding
· Open the bleedingnipple (2) and be prepared to close it again. · Press "START" on the MP nano. · The fuelpomp(1) pumps while its glowing. · Close the bleedingnipple (2) when only oil flows out of the nipple. Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 9: Starting And Stopping Generator
· Switch the lights of with the circuit breakers. (4) · Bring the tower down with the lever. (6) · The generator stops. · Turn the selector switch (2) to "OFF". · Turn off the battery switch (A). Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 10: Starting With Timer
· The generator stops automatically at a programmed time of the timer (3A). The generator will go into standby when it stops and will start again on it's programmed time. Shutdown the generator completely · Turn off the lights with their corresponding fuses(4). Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 11: Starting With Lightsensor
Stopping with lightsensor · The generator stops automatically at a programmed time of the timer (3A). The generator will go into standby when it stops and will start again on it's programmed time. Volledige bedieningshandleiding A © Bredenoord bv 2016... - Page 12 · Be advised to bring the tower down first with the Tower stick controller (6) ( The generator has to run, start up manually if necessary) · Turn the operator selector switch (2) to "OFF" · Turn off the battery switch (1). Volledige bedieningshandleiding A © Bredenoord bv 2016...
-
Page 13: Components
11. Oil filter 4. Fuses Lights and tower 5. MP nano 6. Hydraulic pump for tower up/down 7. Circuit breaker 8. Connection load 12. Fuel filter 14. Oil drain pump 13. Fuel fillingpoint Volledige bedieningshandleiding A © Bredenoord bv 2016... -
Page 14: Moving The Plm
Moving the PLM Mobile products of Bredenoord are often moved and are therefore usually equipped with a lifting eye and forklift beams. Check before moving if customer cables are disconnected, that all doors are closed and the Light Tower can be moved safely. -
Page 15: Expiring Of The Warranty
Expiring of the warranty The warranty of the Light Tower provided by Bredenoord expires directly if: The maintenance on the Light Tower is not carried out as specified by the manufacturer. · · (Safety) components of the Light Tower are removed and not placed back before the Light Tower is being put in operation. -
Page 16: Appendix: Timer
Appendix: Timer Volledige bedieningshandleiding A © Bredenoord bv 2016...
