CONTROL TYPE
RADIO
LIMITS
ELECTRONIC
(set remotely)
OUTPUT SPEED
34 rmp
RATED TORQUE
0.82 N.m
•
Bi-Directional Functionality
•
Electronic Limit Setting
•
Jog Mode
•
Program / Operation Button (P1)
•
Three Speed Settings
•
External Li-ion Battery attached by a wire
1
PLEATED BLIND LV
BATTERY MOTOR
191699
1b. ROMAN/PLEATED MOTORS
ROMAN BLIND LV BATTERY MOTOR 191695
PLEATED BLIND LV BATTERY MOTOR 191699

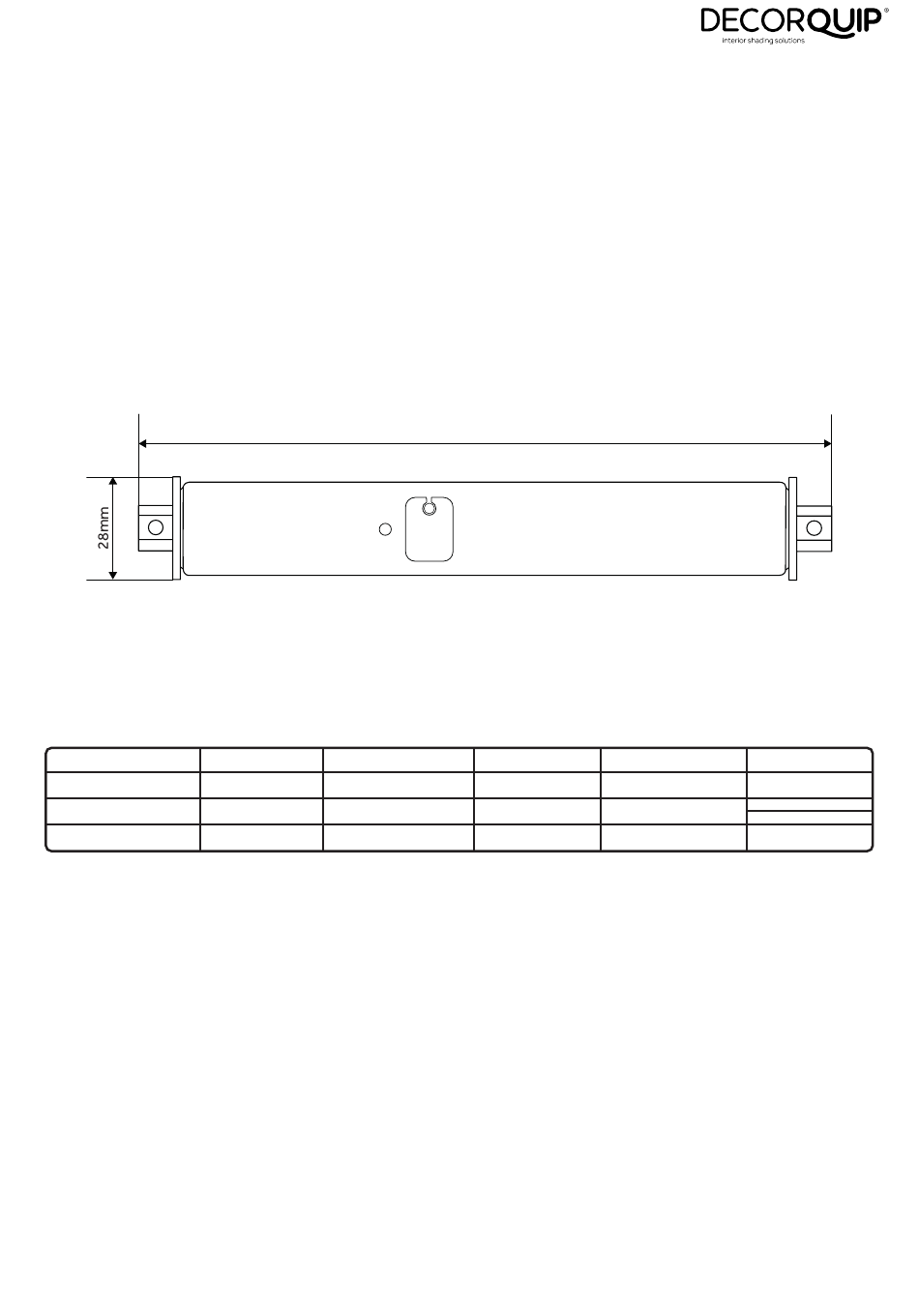

TECHNICAL SPECIFICATION
RATED VOLT AGE
RATED POWER
TECHNICAL SPECIFICATION
RATED CURRENT
OUTPUT SPEED
34RPM
RADIO FREQUENCY
RATED TORQUE
0.8 N.m
RATED VOLTAGE
12v
RATED POWER
12W
FUNCTIONAL FEATURES
INSTALLATION
2b. INSTALLATION
205mm
205mm
12 V
IP RATING
12 W
LIFTING CAPACITY
0.3 A
MIN. BLIND WIDTH
RATED CURRENT1
.03A
433.92 MHz
MOTOR LENGHT
IP PROTECTION RATING
20
LIFTING CAPACITY
RUNNING NOISE
•
Mains / Solar battery charging
•
Mains power option with a power adapter
•
Built-in Radio Receiver
•
Favourite Stop Position
•
Internally Stored Settings
•
Pair with up to 10 Control Devices
2
IP1.9
8 Kg
PLEATED 450 mm
ROMAN 500 mm
205 mm
