INSTRUCTION MANUAL
AND WARRANTY CARD
Aqua Horizon 15/25L
(AH15AH/AH25AH)
usha_care@usha.com
Storage water heater
Gurugram
2015
Advertisement
Table of Contents
Related Manuals for usha Aqua Horizon AH15AH
Summary of Contents for usha Aqua Horizon AH15AH

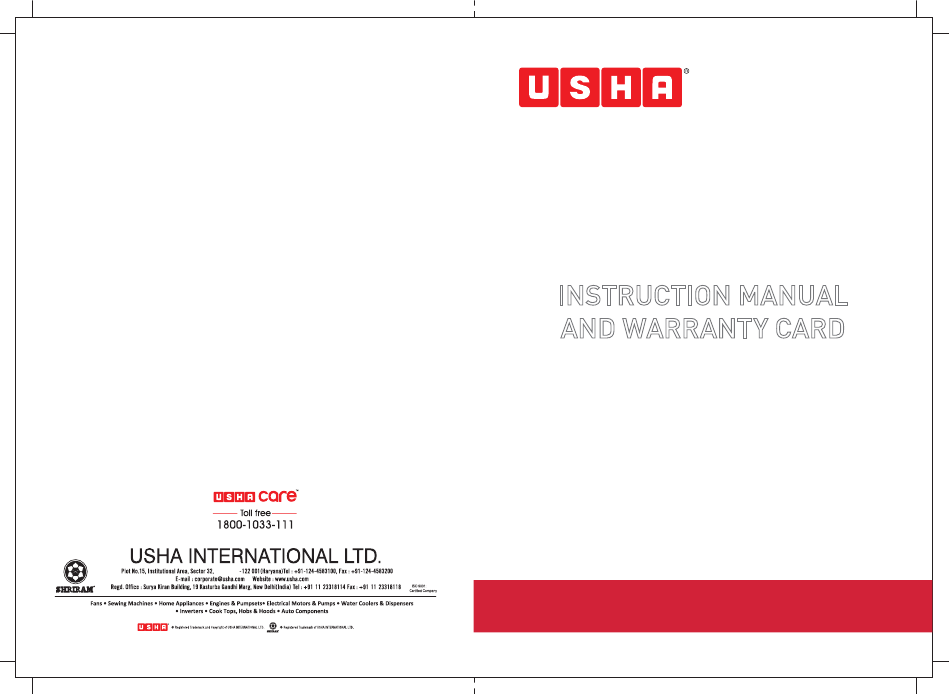

- Page 1 S.NO: ....................CASH MEMO: ..........Date......DATE: ....................DEALER’S NAME AND ADDRESS: ................................OWNER’S NAME & ADDRESS: ................................. INSTRUCTION MANUAL AND WARRANTY CARD Aqua Horizon 15/25L (AH15AH/AH25AH) usha_care@usha.com Storage water heater Gurugram 2015...
-
Page 2: Special Features
Dear Customer, Special Features Congratulations! High pressure resistance suitable for high rise buildings You are now the proud owner of an Usha Storage Water Heater. Glassline Coated Heating Element: Please read the instruction manual carefully before using and keep it Glassline... -
Page 3: Safety Features
Safety Features Caution and Installation Instructions Before installing this water heater,check and confirm that the earthing on the supply Capillary type high precision Thermostat with highest safety UL Mark: socket is reliably grounded. Otherwise, the electrical water heater can not be “Cut-off”... -
Page 4: Technical Information
• The water heater is not intended for use by persons(including children)with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instructions concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the heater. -
Page 5: Installation Instructions
Brief introduction of product structure NOTE D represents the wall-mounted distance between holes of horizontal, E represents the wall-mounted distance between holes of vertical. Internal Wire Diagram Thermal Thermostat Cut Out PRODUCT STRUCTURE FOR HORIZONTAL WIRING DIAGRAM FOR AQUA HORIZON AH15AH AH25AH Installation Instructions... - Page 6 2. After selecting a proper location, determine the positions of the two install holes used for expansion bolts with hook (determined according to the specification of the product you select). Make two holes in the wall with the corresponding depth Power cord by using a chopping bit with the size matching the expansion bolts attached with the machine, insert the screws, make the hook upwards, tighten the nuts to fix...
-
Page 7: General Maintenance
General Maintenance Operation Instructions First, open any one of the outlet valves at the outlet of the water heater, then, open WARNING the inlet valve. The water heater gets filled with water. When water flows out of the outlet pipe it implies that the heater has been filled fully with water, and the outlet Do cut off power supply before maintenance, to avoid danger like electric shock. -
Page 8: Troubleshooting
Non-professionals are not allowed to disassemble the thermal switch to reset. Please contact Usha care 2. Always keep the inlet control valve open. service centre to avail maintenance service for the same. Otherwise Usha will not be liable or take any responsibility if any quality accident happens because of this. -
Page 9: Warranty Card
3. The Storage Water Heater has been installed, used and maintained in supplied with the product. accordance with the instruction manual. • If any repair work carried out by a person other than Usha’s Authorized Service Centres. This Warranty does not apply for: •...
