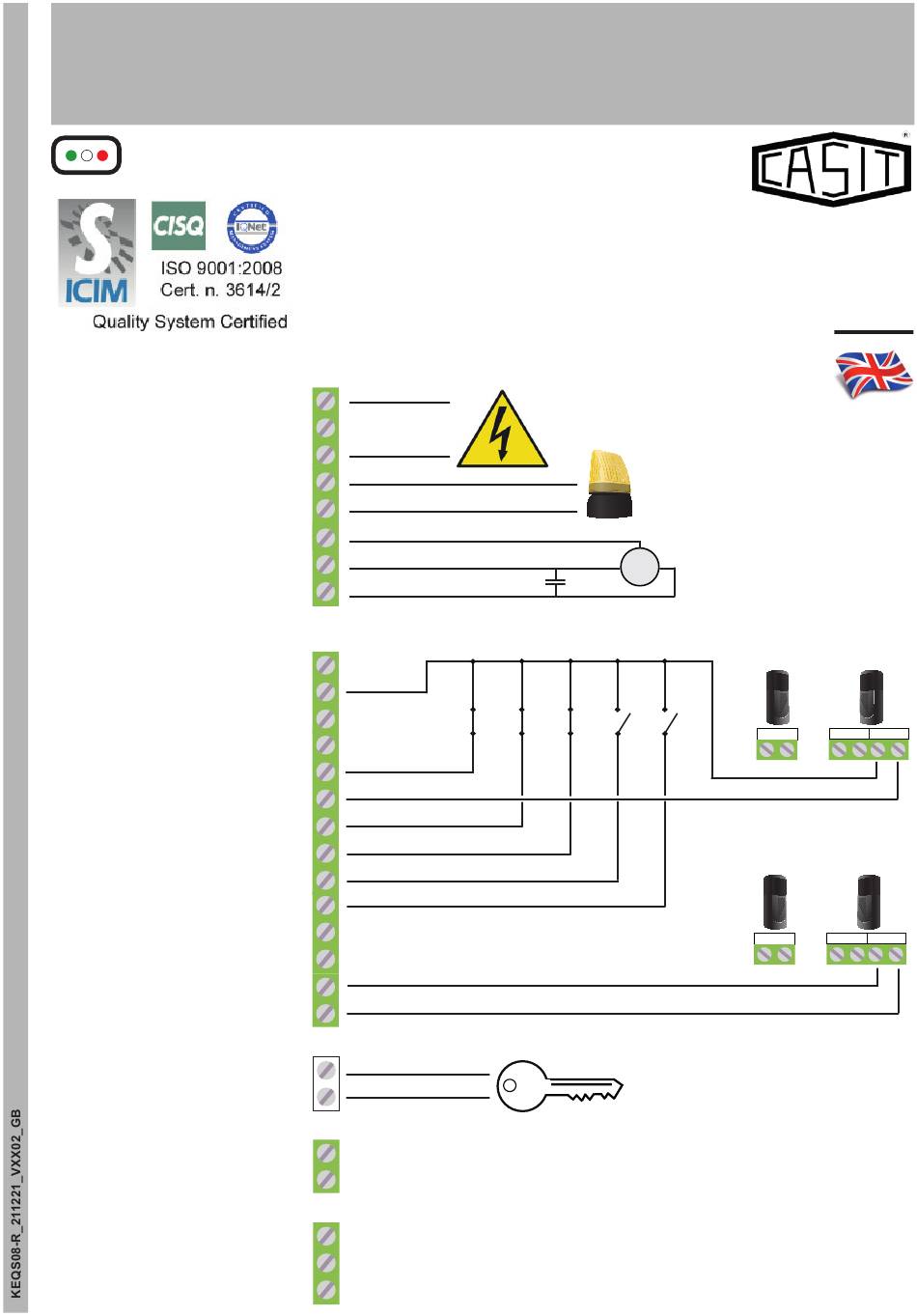

• Single-phase control unit for 1 motor 230Vac

• For sliding gates or swing gate with 1 motor, roll-up doors, rolling shutters with

electrical lock and encoder option

• 433.92 Radio receiver integrated with obstacle detection

100%

ITAL Y

230 Vac

Lamp

MOT common

MOT close

MOT open

+ Antenna Signal

Common contacts

+ 12 Vdc

STOP

PHOTO 1

START

PEDESTRIAN

24 Vac

24 Vac / + 24Vdc

-24Vdc, COM serv. & sec.

PHOTO 2

Electrical lock

12 Vac

Dry Contact

+ 5V encoder

Encoder Signal

- 5V encoder

-1-

-2-

-3-

-4-

-5-

-6-

-7-

-8-

-9-

-10-

-11-

-12-

-13-

LSO

-14-

LSC

-15-

-16-

-17-

-18-

-19-

-20-

-21-

-22-

-23-

-24-

-25-

-26-

For a correct use of the encoder,

-27-

we recommend to ready the manual.

-28-

KEQS08

N.C.

N.O

Radio receiver

Lamp or courtesy light

230Vac

COM

Photocells working

in closing

See par. 2.10-2.11

N.O.

Photocell working in closing

and in opening

12 Vac Electrical lock

(in case of 24Vac connect to the terminal

board no.22 and 18)

OUT

Table of Contents

Need help?

Do you have a question about the KEQS08 and is the answer not in the manual?

Questions and answers

Summary of Contents for Casit KEQS08

Page 1 • For sliding gates or swing gate with 1 motor, roll-up doors, rolling shutters with electrical lock and encoder option • 433.92 Radio receiver integrated with obstacle detection 100% ITAL Y KEQS08 Radio receiver Radio receiver 230 Vac 230 Vac...
Page 2: Environmental Protection Measures
KEQS08 Technical Manual Index Foreword This manual provides all the speciﬁ c information you Par. Description need to familiarize yourself with and correctly opera- Introduction te your unit. Read it very carefully when you purchase Safety precautions the instrument and consult it whenever you have doubts...
Page 3: Field Of Application
Every programming and/or every maintenance service should be done by qualiﬁ ed technicians. Field of application The KEQS08 electronic control unit is used to control the movement of entrances, swinging gateways, rolling gates and automatic doors. It can be connected to a hydraulic or electromechanical actuator equipped with an asynchronous, single-phase motor operating at a voltage of 230 Vac.
Page 4 KEQS08 Technical Manual Installation Diagram of the control unit and electrical connections 8 9 10 11 12 13 14 15 16 17 18 19 20 21 1  2 Control unit power supply 230Vac Power supply for 230Vac motor and for 3 ...
Page 5 KEQS08 Technical Manual Description of the electrical connection 230 Vac Electrical power supply 230 Vac 50 Hz 230 Vac Electrical power supply 230 Vac 50 Hz Output for 230 Vac signal Signal Light or courtesy light maximum power 40W MOT common...
Page 6 KEQS08 Technical Manual Connection of the 230 Vac SIGNAL LIGHT DIP 4 - OFF 24 25 Signal Light without ﬂ ashing control card Signal light with ﬂ ashing control card If you use the photocells test, or a 24V light, this connection cannot be used.
Page 7 KEQS08 Technical Manual Connection of the STOP and PHOTO 2 Connection of the STOP control Connection of the PHOTO2 control: Push-button: stops and temporarily prevents all For operation see DIP 6 A page. 11 control unit function until it is pressed again.
Page 8 KEQS08 Technical Manual 24 Vac 2.10 Connection of the photocell 1 only closing Without TEST With TEST 9 10 11 12 13 14 15 16 17 18 19 20 21 24 25 9 10 11 12 13 14 15 16 17 18 19...
Page 9 KEQS08 Technical Manual 2.12 Connect the 3 WIRES PHOTO 1 24 Vdc Bring JUMPER AC/DC 9 10 11 12 13 14 15 16 17 18 19 20 21 as shown in the picture Voltage: 24 Vdc POWER SUPPLY Maximum current: 300 mA RX PHOTOCELL Photocell receiver.
Page 10: Checking Connections
KEQS08 Technical Manual 2.15 Checking connections LED L1 indicates the correct working of the control unit. It ﬂ ashes each second to indicate the micro-processor is activated and waiting for commands. If it ﬂ ashes softly it means that the input SAFETY EDGE is not in the standard mode.
Page 11 KEQS08 Technical Manual Use of the DIP A 1-OFF It inverts: open and close. Automatic 1 2-OFF It closes automatically at the end of the pause time 1-ON In opening and pause time doesn’t accept commands. Condominium 2-OFF it re-closes automatically at the end of the pause time.
Page 12: Using The Remote Controls
KEQS08 Technical Manual Using the remote controls This receiver can manage standard codes from 12 till 64 bit and rolling codes HCS©. The ﬁ rst learned transmitter establish the code’s type that the receiver has to manage, it means that the transmitter has to have the same code’s type.
Page 13 KEQS08 Technical Manual Learning of the remote controls The remote controls can be learnt ONLY when the gate is CLOSED. CONNECT THE ANTENNA CABLE AFTER MEMORIZATION OF THE REMOTE CONTROLS (terminals 8-9) Make sure that the gate is CLOSED >...
Page 14 KEQS08 Technical Manual Time learning IF YOU DON’T USE AN ENCODER: SET THE SPEED WITH THE TRIMMERS Time learning: STANDARD WAY The gate is in closed position set the control board in Semiautomatic mode (DIP 1A OFF - DIP 2A ON - DIP 7B OFF) Put in OFF the switch no.
Page 15 KEQS08 Technical Manual Time learning PARTIAL OPENING The gate is in closed position Press and keep pressed the TIMES button till the control board starts motor in OPEN, Motor OPENS then release the TEMPI button TEMPI Press the TEMPI button...
Page 16 KEQS08 Technical Manual Time learning: ADVANCED SYSTEM IF YOU DON’T USE AN ENCODER: SET UP THE SPEED WITH TRIMMERS The gate is in closed position set the control board in Semiautomatic mode (DIP 1A OFF - DIP 2A ON - DIP 7B OFF)
Page 17 KEQS08 Technical Manual OPERATING GUIDE FOR TEST The TEST function is compatible with slow response devices (for example TRANSCEIVER) so when those devices are available the response time can be slower. You can test the devices in the STOP input.
Page 18 KEQS08 Technical Manual Declaration of CE conformity ....................(according to EC Directive 2006/42, Attachment II, part 1, ses. A) ..........The undersigned , Administrator ..........DECLARES THAT: ..........Product’s name: KEQS08 ..........Single phase for 230 Vac 1 motors ..........
Page 20 CASIT s.a.s. Stab.: Strada Pietra Alta 1 - 10040 CASELETTE (TO) Italy Tel. +39 011 9688230 Fax +39 011 9688363 Partita IVA 0050659.001.7 Reg. Trib. Torino N.654/62 C.C.I.A.A. 333122 - M: T0024777 www.casit.it info@casit.it direzione@pec.casit.it...
