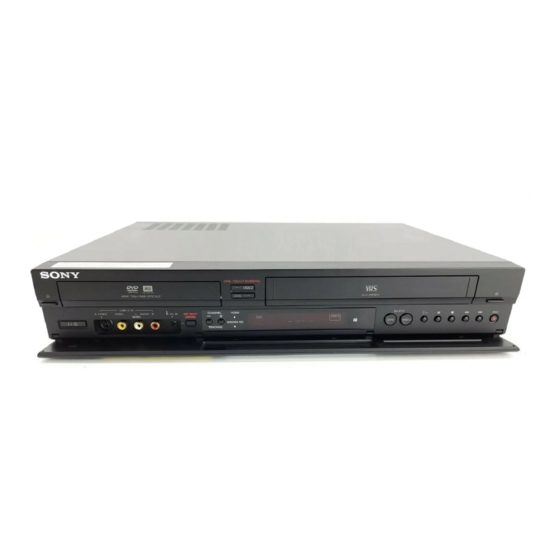

Sony RDR-VX525 Quick Setup Manual

RDR-VX525
Follow the three steps below to connect, setup and make
recordings on your VCR-DVD recorder.
©2007 Sony Corporation
Printed in China
: Hookup for Playback and
Recording
Before hookup
This DVD-VCR does not include a tuner.
To record TV programs on the DVD-VCR from a connected device, you need
to connect the DVD-VCR to a tuner that has audio/video output jacks.
You have :
Cable Box With Video/Audio Output
– or –
Satellite Receiver With Video/Audio Output
hint
If you have been using your VCR connected to an antenna, connect this DVD-VCR to
the VCR using an audio/video cord. This way, you can record TV programs.
If you have neither of the above tuners :
You have :
Cable Box/Satellite Receiver Without Video/Audio
Output
 Please contact your cable service or satellite service company
to ask cable box or satellite receiver with video/audio output.
Cable With No Cable Box
 Please contact your cable service to ask cable box with video/
audio output.
Antenna Only (No Cable TV/No Satellite Receiver)
 You need to subscribe to a cable TV or satellite TV service
and to get a cable box or satellite receiver with video/audio
output.
hint
For any inquiry, please visit the Sony web site : http://esupport.sony.com/
Select a connection
To enjoy DVD/VCR playback, select connection A. In addition, if you want to record TV programs from a connected tuner,
make additional connections by referring to connection B.
: Hookup for Playback
VCR-DVD Recorder
3- 096-493-11(1)
AK68-01354A
Cable Box /
Satellite Receiver
See right
to CABLE IN
OUT TO
TV
CAVLE IN
ANT IN
to your antenna
to OUT TO
wall jack
TV
VCR-DVD Recorder
You will need:
(one audio/video cord is supplied)
Television
to LINE OUT
LINE 1 IN LINE OUT
S VIDEO OUT
COMPO NENT
AUDIO OUT VIDEO OUT VIDEO
VIDEO
Y
L L
P B
R
R
HDMI OUT
SETTOP R P
BOX AUDIO
CONTROL P AUDIO
R
OPTICA L COAXIA L
OUT
DIGITAL AUDIO
You will need:
(one audio/video cord is supplied)
Television
to an
AC outlet
to VIDEO OUT/
AUDIO OUT
COMPON ENT OUT 4
VIDEO OUT
DIGITA L
AUDIO
OUT
OPTIC AL S VIDEO
to VHF/UHF IN
2
to LINE 1 IN
to LINE OUT VHF /UHF
LINE OUT
LINE 1 IN
S VIDEO OUT
COMPO NENT
AUDIO OUT VIDEO OUT VIDEO VIDEO
Y
L L
P B
R
HDMI OUT R
SETTOP
P R
BOX AUDIO AUDIO
CONTROL P R
COAXIA L
OPTICA L
OUT
DIGITAL AUDIO 3
1
Connecting an S video cord or a
component video cord or an HDMI cord
X1
to LINE IN
Connect one of the following cords instead of the video cord. (One audio/video
LINE IN
cord supplied.) You will enjoy high quality images.
a S video cord (not supplied) or b Component video cords (not supplied)
or c HDMI cord (supplied)
to an
AC outlet For further explanations, see "Video Settings (Video)" in the Operating Instructions.
1
Connecting an AV amplifier (receiver)
2
Connect power
cords last!
X2 X2
(one antenna cable is supplied)
Connect one of the following cords.
a audio cords (not supplied) or b coaxial digital cord (not supplied) or c optical
digital cord (not supplied) or d HDMI cord (supplied)
Connecting to an AV amplifier (receiver) with digital cords will enable you to listen
to Dolby Digital or DTS surround effects. For further explanations, see "Connecting
to Your AV Amplifier (Receiver)" in the Operating Instructions.
Connecting the Set Top Box controller
to LINE IN
LINE IN
IN
to an
AC outlet
4
Connect all
power cords last!
You can have the recorder control channels on the cable box or satellite receiver
for timer recording. Connect the Set Top Box controller (supplied), and select "Yes"
in step 6 of Setup on the next page.
Television
to COMPONENT
to S VIDEO IN
VIDEO IN
INPUT
COMPON ENT VIDEO IN
to HDMI IN Y S VIDEO
P R P B
HDMI IN
VCR-DVD
c to COMPONENT
Recorder
a
VIDEO OUT
b
LINE OUT
S VIDEO OUT LINE 1 IN
COMPONEN T VIDEO
AUDIO OUT VIDEO OUT VIDEO
Y
L L
P B
R
HDMI OUT R
SETTOP P
BOX R AUDIO
CONTROL P R AUDIO
COAXIAL
OPTICAL DIGITAL AUDIO OUT
to S VIDEO
OUT
to HDMI OUT
to DIGITAL AUDIO OUT
AUDIO OUT
(COAXIAL or OPTICAL)
L/R
LINE OUT
S VIDEO OUT LINE 1 IN
COMPONEN VIDEO OUT T VIDEO
AUDIO OUT VIDEO
to HDMI OUT Y VCR-DVD
L L L
P B
R R
HDMI OUT R Recorder
SETTOP P
BOX R AUDIO
CONTROL AUDIO
COAXIAL
DIGITAL AUDIO OPTICAL OUT
to DIGITAL IN
(OPTICAL)
c
IN
DIGITAL
d
b
to HDMI IN
a
HDMI IN
AV Amplifier
LINE IN
to DIGITAL IN
to LINE IN
(COAXIAL)
(AUDIO)
for

Place it so that the tip of the
controller is near the remote
control reception window on
your set top box.
Cable Box/
Satellite Receiver
COMPONENT OUT
VIDEO OUT
OUT TO
DIGITAL
CAVLE IN TV AUDIO
OUT
ANT IN
S VIDEO
OPTICAL
VCR-DVD
LINE OUT
T S VIDEO OUT LINE 1 IN
VIDEO OUT COMPONEN VIDEO Recorder
AUDIO OUT VIDEO
Y
L L
P B
R
HDMI OUT R
SETTOP P R
CONTROL BOX AUDIO AUDIO
R P
OPTICAL COAXIAL
DIGITAL AUDIO OUT
to SET TOP
BOX CONTROL
