Summary of Contents for DELAVIN W101

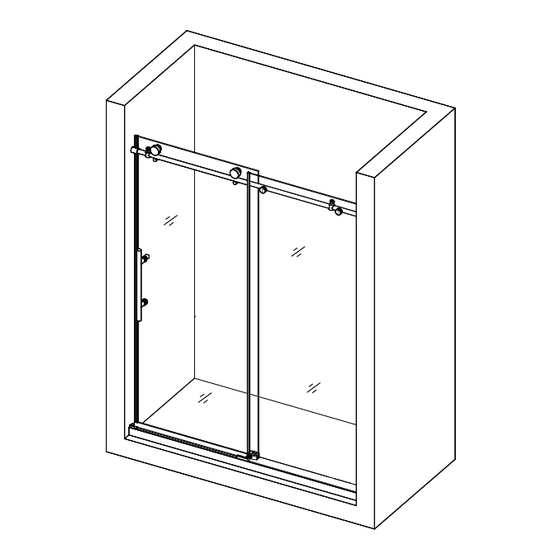

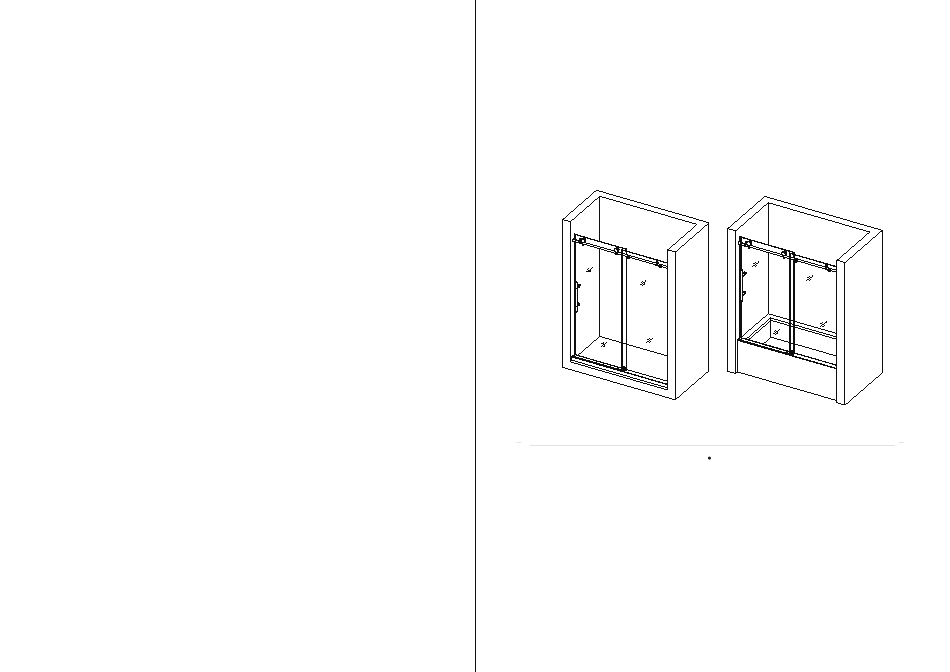

- Page 1 DELAVIN ® INSTALLATION INSTRUCTIONS SHOWER DOORS TUB DOORS MODELS: SHOWER DOORS: W101/W101B/W101G TUB DOORS: W707/W707B...
-
Page 2: Tools Required
3 business days of the delivery date. Please note that DELAVIN will not replace any damaged products or missing parts free of charge after 3 business days or if the product has been installed. Feel free to contact DELAVIN if you have any questions. - Page 3 DELAVIN DELAVIN Front Bracket core Bracket core screw 2.Place the Stationary Glass (17), align the hole above the glass with the Glass Bracket (19) that has been fixed with the stainless steel support rod, Cover the other half of the Glass Bracket (19) to lock the glass (two spacers are placed separately to protect the glass).
- Page 4 DELAVIN DELAVIN Screw M5*40 Measuring tool Wall Anchor 4.Divide the Guide Rail Bracket(2) into two parts: I and II Fix part I of the Guide Rail Bracket(2) to the wall on both sides with 5*40 screws 3. Place the Measuring Tool(23) vertically against the wall on the floor, mark the wall (18) as shown in the picture g.
- Page 5 DELAVIN DELAVIN Attention: Need to loosen the small allen screws before loosening the long allen screw on the roller 4.8*32 5. Place the Stationary glass (17) back into the designated position. Slide the II part of the Guide Rail Brackets (2) to the two end sides of the Upper Guide Rail (4), then connect II and I part of the Guide Rail Brackets (2).
- Page 6 DELAVIN DELAVIN 8. Hang the Glass Door (7) back to the Upper Guide Rail (4) , slide the bottom of the glass door into the slot of the Guide Block (14) . Be careful that the glass door should not touch the metal part of the guide block.
- Page 7 DELAVIN DELAVIN 10.Install the Anti-Splash Threshold (9) in front of the Glass Door (7). Put the Anti-splash threshold in front of the glass door, and then put the 11. Install the Safety Pin(20) to the Glass Aluminum Cover with slot into the Stationary Door (7).
- Page 8 DELAVIN DELAVIN 13. Apply silicone sealant on the seams between the stationary glass and the shower base/bathtub, and between the wall and the stationary glass. Moving glass outer side Glass Door UP Moving glass inter side shower tray or shower base...
