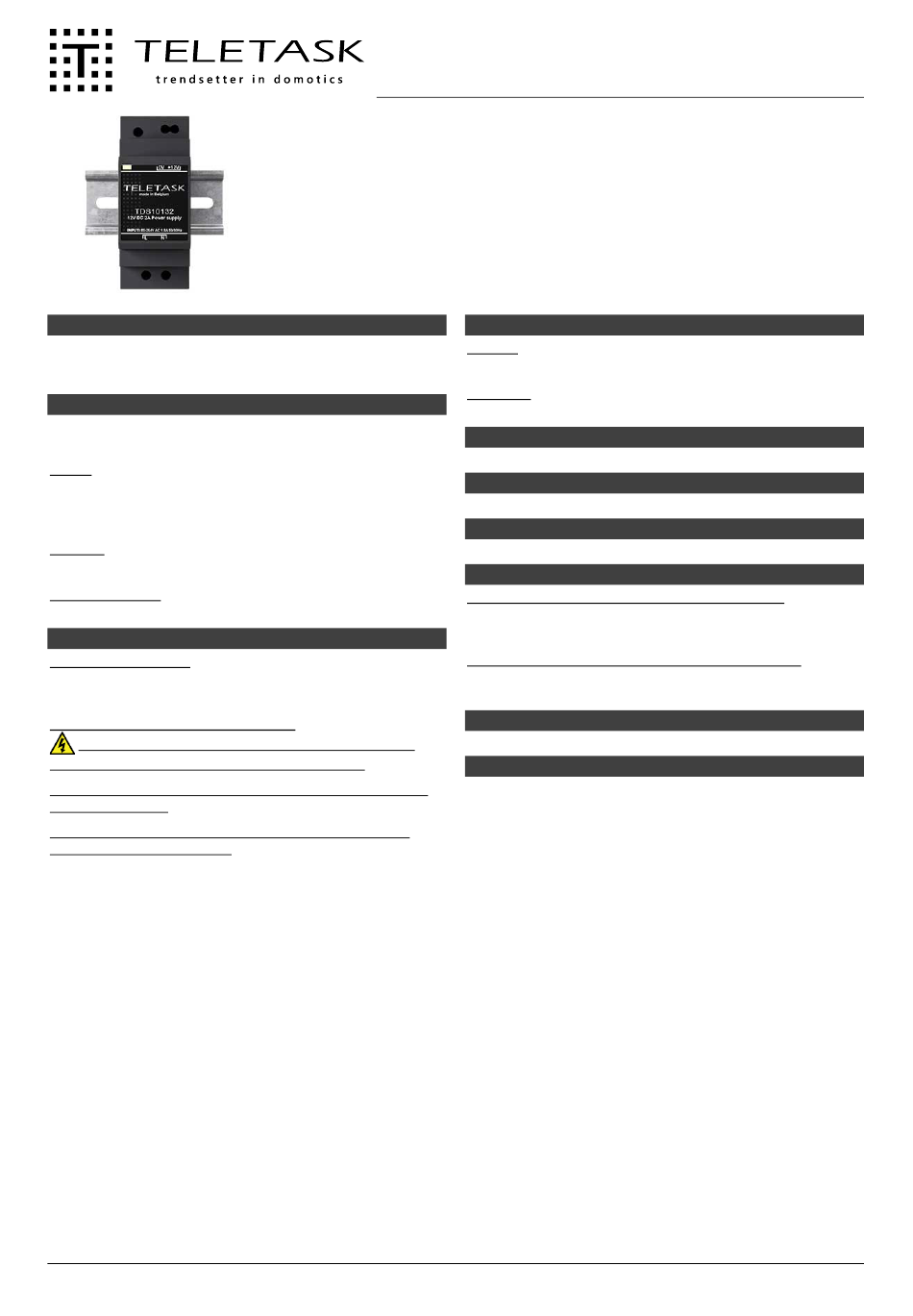

Teletask TDS10132 Instruction Manual

APPLICATION

Used as power supply for PICOS or NANOS central unit and
(additional) power supply on AUTOBUS (including MICROS+
installations).

CHARACTERISTICS

Isolation class II
Withstand voltage: I/P-O/P = 4KVAC
Input
100-230VAC (min.85 - max.264 VAC)
50/60Hz (min. 47 – max. 63Hz)
Efficiency: 88%
Output
12V DC 2.0A
LED feedback
• Power LED

INSTALLATION

DIN-rail mounting
2 modules wide.
Please provide 1cm clear space at both sides.
Important installation remarks
Due to the risk of electrical shocks (230V), this product
!
must be installed by a certified electrical contractor.
! Must be placed inside an electrical cabinet to avoid the risk of
an electrical shock.
! Follow the safety standards from the local authorities to be
compliant with all regulations.
©, TELETASK, GENT, 2023
TELETASK can't be responsible for potential errors in the data sheets and technical documentation. Changes in the product features can be made at any time, without prior notice
TDS10132
Din-rail mountable 100-230VAC 50/60Hz, 12V DC 2A power supply. This unit can be used to
power the TELETASK DOMUS, PALAS, NANOS or PICOS central unit or as AUTOBUS
extension power supply.
23
Central unit accessories
AUTOBUS power supply – 12V DC 2A

CONNECTIONS

Inputs
L+N 100-230VAC. Screw terminals; max. 1,5mm² (AWG 16).
Outputs
Screw terminals; max. 1,5mm² (AWG 16).

DIMENSIONS

35 W x 90 H x 54,5 D (mm)

NET | GROSS WEIGHT

0,130 kg |0,140 kg

PACKAGING CONTENT

TDS10132 interface

ENVIRONMENTAL CONDITIONS

Storage (with no condensation or icing)
Temperature: -20°C to +65°C max.
Relative humidity: 5% to 85% max.
Operation (with no condensation or icing)
Temperature: 0°C to +50°C (see derating curve)
Relative humidity: 5% to 80% max.

IP PROTECTION RATE

IP20

LIMITED WARRANTY

4 years
EN
Version July 2023
