CAR AUDIO
SYSTEM OWNER'S MANUAL
MEDIA(USB/iPod), Bluetooth, RADIO
User Manual 1
Gebruiksaanwijzing 2
Manuel d'utilisation 3
Gebrauchsanweisung 4
Manuale dell'utente 5
Manual del propietario 6
Kullanım kılavuzu 7
Руководство пользователя 8
用户手册 9
CAR AUDIO
MUSSO
Owner's manual
for

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MUSSO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SSANGYONG MUSSO

Summary of Contents for SSANGYONG MUSSO

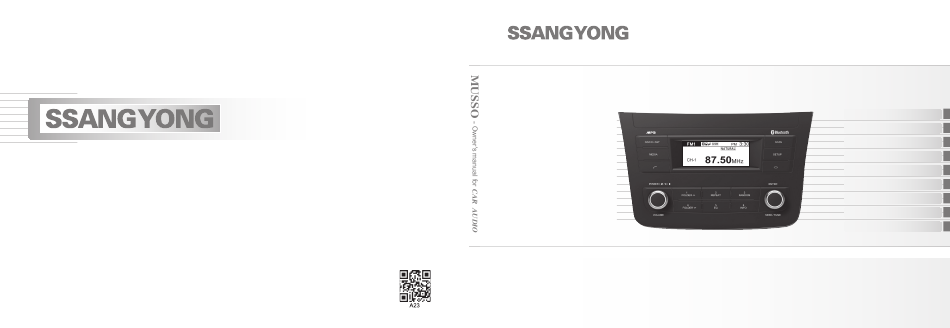

  • Page 1 CAR AUDIO SYSTEM OWNER'S MANUAL MEDIA(USB/iPod), Bluetooth, RADIO User Manual 1 Gebruiksaanwijzing 2 Manuel d'utilisation 3 Gebrauchsanweisung 4 Manuale dell'utente 5 Manual del propietario 6 Kullanım kılavuzu 7 Руководство пользователя 8 用户手册 9 CAR AUDIO MUSSO Owner's manual...
  • Page 2 ■ 24 Preset Memory (FM1, FM2, AM, DAB Band) for EU Region ■ SEEK & TUNE (auto/manual) for radio broadcasting ■ RDS & DAB function for EU Region ■ ARKAMYS sound control (dynamic, natural) ■ Setup (5 modes) for system user settings MUSSO...

  • Page 3: Table Of Contents

    Contents Precautions To ensure safe driving Precautions ■ 1. As a function to help ensure safe and stable driving, Bluetooth handsfree is 1. To ensure safe driving convenient for making and receiving calls via terminal, if the vehicle’ s terminal is 2.

  • Page 4: Precautions When Using Usb/Ipod Devices

    Precautions when using USB/iPod devices Precautions when using Bluetooth (Handsfree) 1 . Always keep device separated before starting the vehicle, and only insert after 1 . Problems that occur during use of mobile phone may not solely be due to starting vehicle, as damage to device may be caused when starting the vehicle problems with audio system but may instead be caused by issues arising from with device already attached.

  • Page 5: Using The Audio System

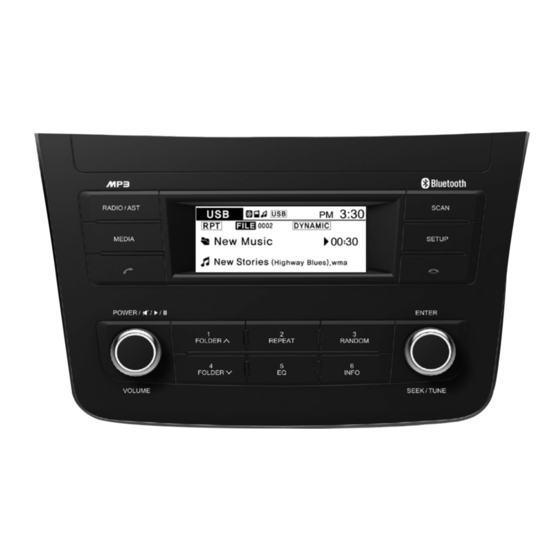

    Using the Audio system Location of FRONT controls Button Description 1. Power On : Press briefly in power-off state. 2. Power Off : Press and hold for more than 1.5sec. in power-on state. 3. Mute : Press briefly in power-on state. ❶...
  • Page 6 Button Description Button Description 1. Band rotation(FM1 DAB) : Press briefly in radio mode. 1. Paired state : In power-on state. ❺ RADIO Calling Menu Access(Redial / Phonebook / Call lists) : Press briefly. 2. AST (Autostore) : Press and hold for more than 1.5sec. in radio mode. / AST Save radio stations via preset buttons (1 ~ 6) automatically.

  • Page 7: Calling And Receiving Calls Via Handsfree

    3. Press " Hanging up" on steering wheel remote 2. Enable Bluetooth on mobile phone. (Phone) control. 3. Find the "MUSSO" in device list and select. (Phone) - Return to previouse mode automatically. 4. Check certification no. and confirm. (Phone) 5.

  • Page 8: Rds For Eu Region

    for EU Region for EU Region Mode Button Description Display Mode Button Description Display & & & & - RDS functionality is supported in areas where RDS - Supports DAB BAND III digital broadcast reception. service is available. 1. Select a band : Press the RADIO / AST button to 1.

  • Page 9: Steering Wheel Remote Control

    Using the Audio system Steering wheel remote control ■ Using Volume, Mode, Seek, Call ON, Call OFF / Mute Button Description Volume control button 00(MIN)~41(MAX) Volume Volume up : Push up. Up/Down Volume down : Push down. 1. Mode change : Press briefly in power-on state. RADIO USB / iPod BT AUDIO...

  • Page 10: Rear Connection (42-Pin Connector)

    REAR Connection (42-pin Connector)  42-pin Connector Rear Left + Front Left + Front Right + Rear Right + Steering Wheel controller SPEED iinformation GND (Steeri n g Wheel control l e r) Illumination + E-CALL Rear Left - MIC - MIC + Front Left - GND (MIC)

  • Page 11: Setup

    Setup . Entrance Mode Button Description Display & & 1. SETUP mode : Press briefly in power-on state. Enterance - Referance to each of "Setup" menu item. Back / Arkamys Sound / Tone settings / Bluetooth ❹ System / RDS / ❺...

  • Page 12: Arkamys Sound

    Arkamys sound Tone Settings Mode Button Description Display Mode Button Description Display & & & &  Arkamys  Tone Arkamys sound effect select (Default "Natural"). Tone Settings menu selection. Sound Back Natural Dynamic Effect off Settings Back Bass Middle Treble Fader Balance...

  • Page 13: Bluetooth

    Setup Bluetooth Mode Button Description Display Mode Button Description Display & & & &  Bluetooth  Bluetooth Bluetooth menu selection. Mic volume control : Sel e ct "Mic volume" (press "ENTER") Adj u st MIC vol u me Back Pair Pair device Priority...

  • Page 14: System

    System Mode Button Description Display Mode Button Description Display & & & &  System  System System settings menu selection. Languages : Select system language. Back Time Languages Auto volume Select "Languages" (press "ENTER") control System information Back English Turkish - Press "ENTER"...

  • Page 15: Rds For Eu Region

    Setup for EU Region for EU Region Mode Button Description Display Mode Button Description Display & & & &  RDS  DAB RDS Settings : RDS Settings menu selection. DAB Settings : DAB Settings menu selection. Settings Back Regional Traffic Announcement Settings Back...

  • Page 16: Product Specification

    Product Specification Certification 10R-059939 2AE77DGU2040Q2001 MOVO13-1A ANATEL 05478-17-02534 RoHS CA17ROHS022 SUBTEL 10740 Bluetooth D036858 SRRC 2017DJ5294 Д-МДРД-5005 RCM000-973 0597039 Car Audio Radio USB / iPod Frequency Range DC 14.4V Power Supply USB 2.0 FS Power Supply F M : 87.5 ~ 108.0MHz 9V ~ 16V 100kHz step FAT32...
  • Page 17 CAR AUDIO Owner's manual...
