Trendwood PATIO L THERMO SAUNA Installation Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

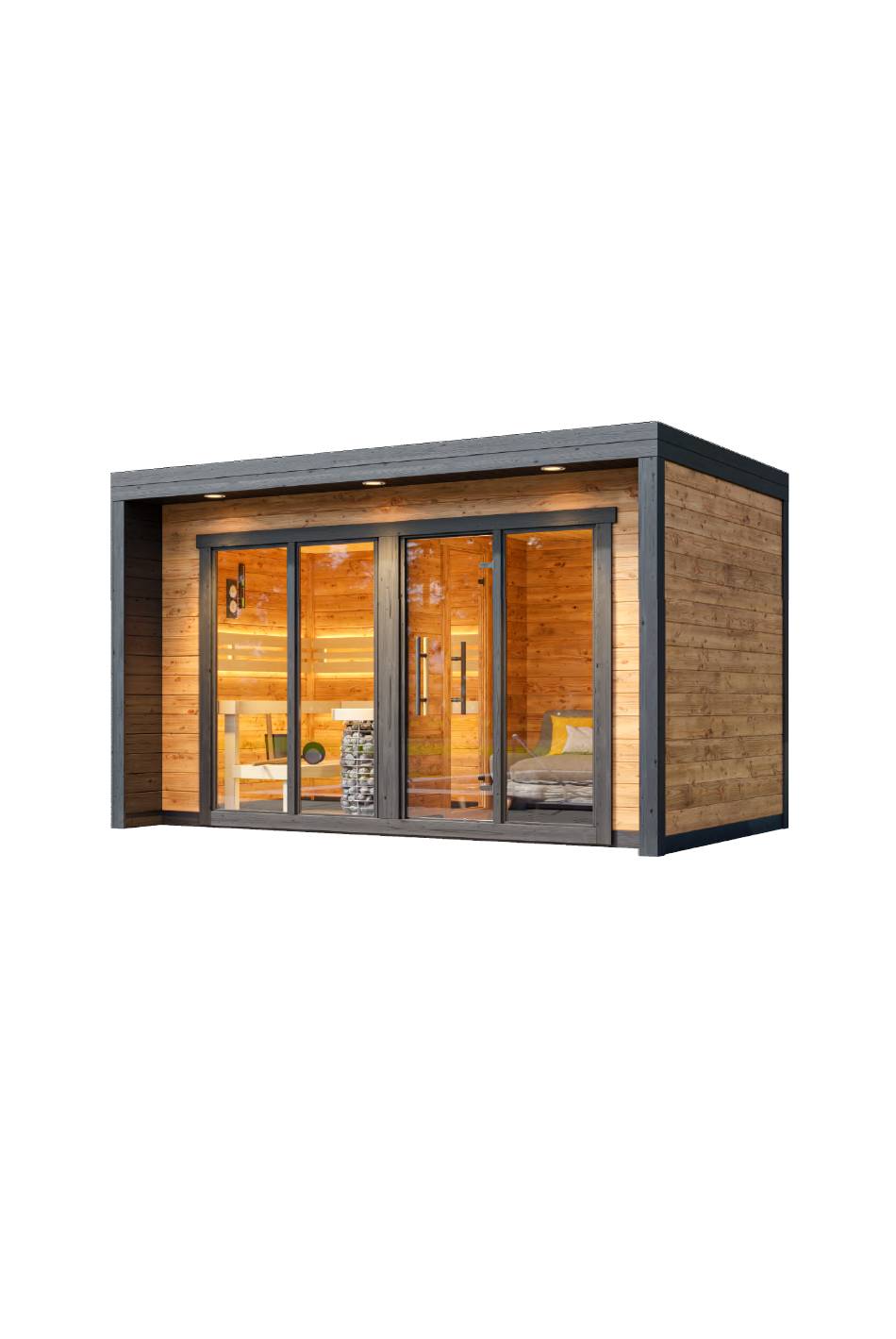

PATIO L THERMO SAUNA
INSTALLATION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the PATIO L THERMO SAUNA and is the answer not in the manual?

Questions and answers

Summary of Contents for Trendwood PATIO L THERMO SAUNA

  • Page 1 PATIO L THERMO SAUNA INSTALLATION MANUAL...

  • Page 2: Required Tools

    PATIO L THERMO SAUNA Instructions It is recommended to install the sauna above ground level to prevent the base frame of the sauna from coming into direct contact with the ground. Install a water-resistant material, such as bitumen strips, between the base frame and the base surface.
  • Page 3 PATIO L THERMO SAUNA Floor plan WALL 1 (back) 4040 3960 3880 1920 1920 1912 690x1860 690x1860 690x1860 690x1860 WALL 2 (front) Cross section...

  • Page 4: Step 1 - Base Frame

    PATIO L THERMO SAUNA STEP 1 - Base frame Marking Detail Image Note Length Pcs. AR-1 45x95 Base Frame 3860 AR-2 45x95 Base Frame 2345 AR-2A 45x95 Base Frame Cutout! 2345 1884 AR-2A AR-3 45x95 Base Fram e 1910 AR-4...
  • Page 5 PATIO L THERMO SAUNA STEP 2 - Walls Marking Detail Image Note Length Pcs. 40x138 Wall Log Thermo 3880 EXTRA 40x138 Wall Log Thermo 3880 40x96 Wall Log Thermo Height: 96 mm 3880 40x34 Wall Log Thermo Height: 34 mm...
  • Page 6 PATIO L THERMO SAUNA STEP 2 - Walls Place the first row of wall logs on the base frame according to Scheme 2.1. Make sure that the wall logs protrude 5 mm outward from the base frame on all sides. Use 6x180 screws to fix the wall logs to the base frame.
  • Page 7 PATIO L THERMO SAUNA STEP 2 - Walls Continue to install the wall logs on top of each other according to the "Wall Layout" scheme on page 7. Use 6x180 screws to connect all wall logs to each other and 4.5x70 screws to fix all logs to corner posts, like shown in Scheme 2.3.
  • Page 8 PATIO L THERMO SAUNA WALL LAYOUT * Connect all wall logs together using 6x180 screws. * Connect all wall logs to corner posts using 4.5x70 screws Wall 2 (front) Wall A (left) View from the outside View from the outside...
  • Page 9 PATIO L THERMO SAUNA STEP 3 - Roof boards and ceiling Marking Detail Image Note Length Pcs. KL-1 24x120 Roof Board 2370 36+2 40x30 Roof Block 3880 45x95 Ceiling Beam 3880 45x95 Ceiling Beam 3878 45x45 Ceiling Beam 3880 45x95 Ceiling Beam...
  • Page 10 PATIO L THERMO SAUNA STEP 3 - Roof boards and ceiling Temporarily lay one KL-1 roof board or some other straight detail on top of the front and back walls. Mark the diagonal that forms under the detail on the side walls with a pencil. These markings will determine the installation height of the T-2 ceiling beams.
  • Page 11 PATIO L THERMO SAUNA STEP 3 - Roof boards and ceiling Install the roof boards flush with the side walls, starting from the right. Fix the roof boards with 70 mm nails to the beams (8 nails per every roof board) with a hammer or a nailgun. Cut the last roof board to width using a circular saw.
  • Page 12 PATIO L THERMO SAUNA STEP 3 - Roof boards and ceiling Cut the SPU insulation panels to the right size using a cutting knife. Make cutouts in the corners for corner posts. Attach the panels to the ceiling beams using a few 4.5x70 screws. Tape all edges and joints with foil tape to prevent heat loss, like shown in Scheme 3.6.
  • Page 13 PATIO L THERMO SAUNA STEP 4 - Floor Marking Detail Image Note Length Pcs. 3 mm Floor slope veneer 1905 6 mm Floor slope veneer 1905 9 mm Floor slope veneer 1905 12 mm Floor slope veneer 1905 PL-1 24x120 Floor Board...

  • Page 14: Step 5 - Doors And Windows

    PATIO L THERMO SAUNA STEP 5 - Doors and windows Marking Detail Image Note Length Pcs. Glass Door 88x690x1860 Metal + Metal door handle Window 88x690x1860 Glass Door 88x690x1860 Metal + Wooden door handle UR-1 45x45 Door/ Window frame 1950...
  • Page 15 PATIO L THERMO SAUNA STEP 5 - Doors and windows Fix the door and window frames to Wall 2 (front) from the outside. Place and fix the 04B detail between the windows and the door. Use 4.5x70 screws for fixing (Scheme 5.3).
  • Page 16 PATIO L THERMO SAUNA STEP 7 - Ventilation Cut the ventilation holes in the partition wall with a diameter of 100 mm using a hole saw or a jigsaw. For recommended locations of ventilation openings see Scheme 6.2 Wall C (partition)
  • Page 17 PATIO L THERMO SAUNA STEP 7 - Outer lining and moldings Marking Detail Image Note Length Pcs. DI-1 15x55 Distance Board for Outer Lining 2150 STP-2 14x121 Outer Lining Board 75+3 18x95 Roof Molding Cut to length! 4000 EXTRA 18x95 Roof Molding...
  • Page 18 PATIO L THERMO SAUNA STEP 7 - Outer lining and moldings First, fix the L-2 roof moldings to the side walls. The moldings must be installed flush with the upper edges of the side walls. Cut the moldings to length and fasten using 3x40 black screws.
  • Page 19 PATIO L THERMO SAUNA STEP 8 - Sauna benches Marking Detail Image Note Length Pcs. Bench Module 600 mm Top - Wall A (left) 1793 Bench Module 500 mm Bottom - Wall A (left) 1793 Bench Module 500 mm Top - Wall 1 (back)
  • Page 20 PATIO L THERMO SAUNA STEP 8 - Sauna benches Lift and place the bottom benches on top of the supports. If LED lighting under the sauna benches has been ordered additionally (not included in the standard set), install the LED strips under the benches before placing them on top of the supports.
  • Page 21 PATIO L THERMO SAUNA STEP 8 - Sauna benches Attach the horizontal support for the right wall top bench to the back wall top bench using 4.5x70 screws. Lift and place the top benches on top of the supports. Leave ~4 mm gap between the benches and the walls.
  • Page 22 PATIO L THERMO SAUNA STEP 9 - Interior moldings Measure and cut to length all DI-0 corner post moldings with a handsaw. Install DI-0 corner molding on top of the corner posts, under, between, and above the sauna benches like shown in Scheme 9.1. Fasten the moldings with 40 mm lost-head nails, using a nail gun or a hammer.
  • Page 23 PATIO L THERMO SAUNA STEP 10 - Roof covering and moldings Marking Detail Image Note Length Pcs. EPDM Rubber Roof Cover 4.33x3.05 m EPDM Glue 2.5 l EPDM Quickprime 125 ml Paint roller + Handle Metal roofing sheet for back wall...
  • Page 24 PATIO L THERMO SAUNA STEP 10 - Roof covering and moldings 10.9 Cut 58 mm off the side metal profiles at one end, like shown in Scheme 10.2. Use sheet metal scissors, pliers and protective gloves to prepare metal roofing sheets for installation.

  • Page 25: Maintenance

    PATIO L THERMO SAUNA Congratulations on a job well done! You have successfully completed the installation and can soon start enjoying your new sauna. Before the first use, please read the maintenance and warranty guide and perform the necessary actions.
