Summary of Contents for RynoWorx RA-HRL-0001

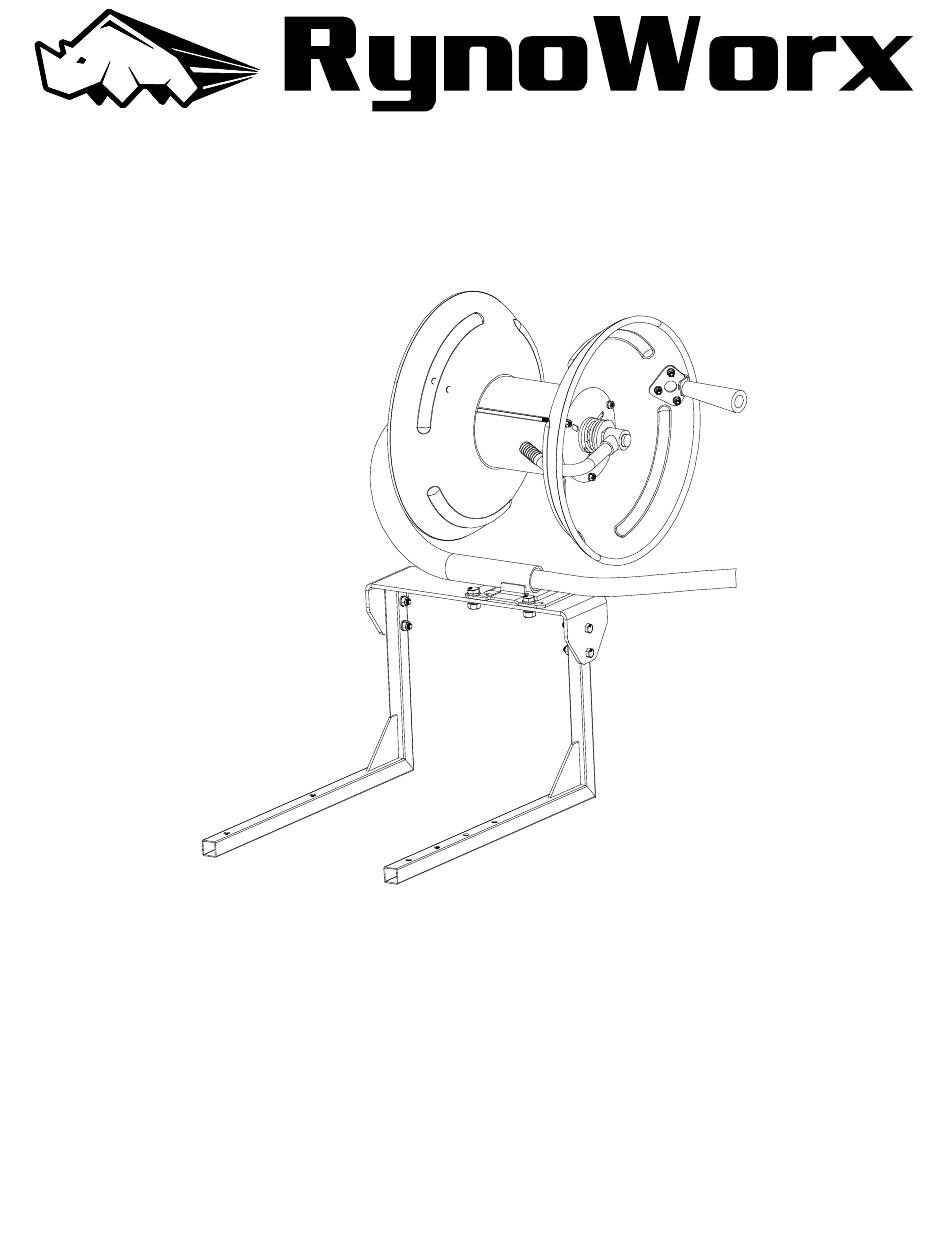

- Page 1 Operator's Manual MPN: RA-HRL-0001 Hose Reel for 50’ of ¾” Hose...
- Page 2 Facebook Messenger support@rynoworx.com WhatsApp Messaging 519-404-9775 Website Chat rynoworx.com/support Email support@rynoworx.com Phone 855-382-9611...
- Page 3 Warning Read all instructions and warnings in this manual before attempting to operate this equipment. This hose reel is meant to be used with centrifugal style (low pressure) pumps. The hose reel only work with water-based or acrylic asphalt seal coat. They do not work with petroleum or oil-based sealer, gilsonite, or sealer with sand in it.
- Page 4 • Assembly Instructions 1) Assembly Frame RK-FAS-0036 2 x 13 mm wrenches or sockets Note: Bracket with 4 mounting holes goes on the right side 2) Mount Reel on Frame RK-FAS-0035 2 x 17 mm wrenches or sockets...
- Page 5 3) Assembly Reel Handle Provided machine Screws -#2 Phillips Screwdriver Provided washers and nuts -10 mm socket 4) Mount Reel on system, truck, or trailer RK-FAS-0036 2 x 13 mm wrenches or sockets...
- Page 6 Note orientation if mounting on a system...
- Page 7 • Set Up 1) Attach ¾” 50’ spray hose to barb on reel 2 x #16 Hose Clamps Tighten with 8 mm socket or flathead screwdriver If spray hose comes with a 2” male camlock like shown below, the hose will need to be cut with a utility knife to remove the fitting before attaching the hose to the barb on the reel.
- Page 8 2) Attach the 2” male camlock fitting on the reel intake hose to the output port on the spray system. If the output port on your spray system is a ¾” barb, the intake hose on the reel will need to be cut with a utility knife just behind the 2”...
