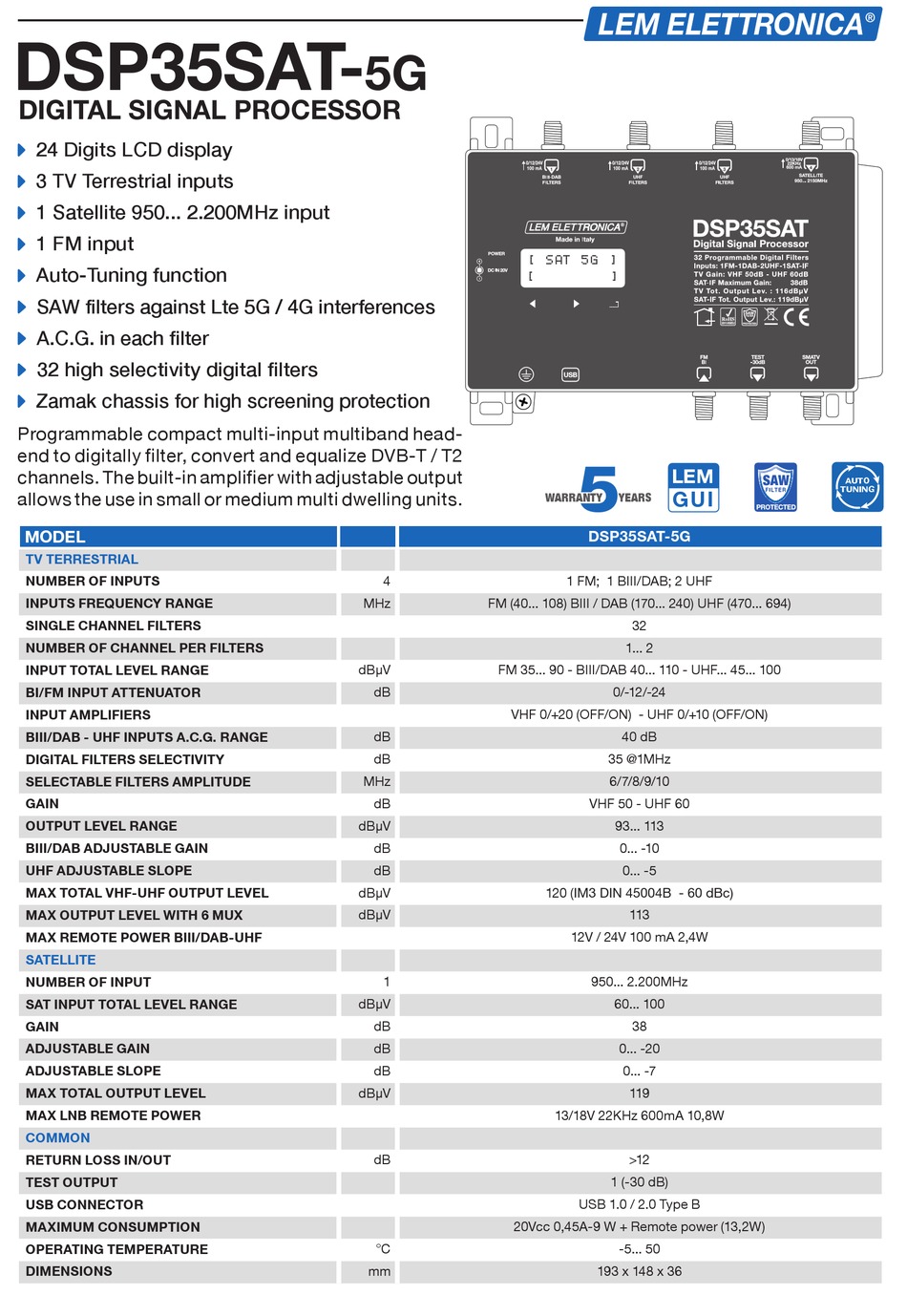

DSP35SAT-
DIGITAL SIGNAL PROCESSOR
24 Digits LCD display
3 TV Terrestrial inputs
1 Satellite 950... 2.200MHz input
1 FM input
Auto-Tuning function
SAW filters against Lte 5G / 4G interferences
A.C.G. in each filter
32 high selectivity digital filters
Zamak chassis for high screening protection
Programmable compact multi-input multiband head-
end to digitally filter, convert and equalize DVB-T / T2
channels. The built-in amplifier with adjustable output
allows the use in small or medium multi dwelling units.
MODEL
TV TERRESTRIAL
NUMBER OF INPUTS
INPUTS FREQUENCY RANGE
SINGLE CHANNEL FILTERS
NUMBER OF CHANNEL PER FILTERS
INPUT TOTAL LEVEL RANGE
BI/FM INPUT ATTENUATOR
INPUT AMPLIFIERS
BIII/DAB - UHF INPUTS A.C.G. RANGE
DIGITAL FILTERS SELECTIVITY
SELECTABLE FILTERS AMPLITUDE
GAIN
OUTPUT LEVEL RANGE
BIII/DAB ADJUSTABLE GAIN
UHF ADJUSTABLE SLOPE
MAX TOTAL VHF-UHF OUTPUT LEVEL
MAX OUTPUT LEVEL WITH 6 MUX
MAX REMOTE POWER BIII/DAB-UHF
SATELLITE
NUMBER OF INPUT
SAT INPUT TOTAL LEVEL RANGE
GAIN
ADJUSTABLE GAIN
ADJUSTABLE SLOPE
MAX TOTAL OUTPUT LEVEL
MAX LNB REMOTE POWER
COMMON
RETURN LOSS IN/OUT
TEST OUTPUT
USB CONNECTOR
MAXIMUM CONSUMPTION
OPERATING TEMPERATURE
DIMENSIONS
5G
[ S AT 5 G ]
[
4
MHz FM (40... 108) BIII / DAB (170... 240) UHF (470... 694)
dBµV FM 35... 90 - BIII/DAB 40... 110 - UHF... 45... 100
dB
VHF 0/+20 (OFF/ON) - UHF 0/+10 (OFF/ON)
dB
dB
MHz
dB
dBµV
dB
dB
dBμV
dBμV
1
dBµV
dB
dB
dB
dBμV
dB
20Vcc 0,45A-9 W + Remote power (13,2W)
°C
mm
]
LEM
GUI
WARRANTY YEARS
DSP35SAT-5G
1 FM; 1 BIII/DAB; 2 UHF
32
1... 2
0/-12/-24
40 dB
35 @1MHz
6/7/8/9/10
VHF 50 - UHF 60
93... 113
0... -10
0... -5
120 (IM3 DIN 45004B - 60 dBc)
113
12V / 24V 100 mA 2,4W
950... 2.200MHz
60... 100
38
0... -20
0... -7
119
13/18V 22KHz 600mA 10,8W
>12
1 (-30 dB)
USB 1.0 / 2.0 Type B
-5... 50
193 x 148 x 36
AUTO
TUNING
