Quick Start Guide
Leto

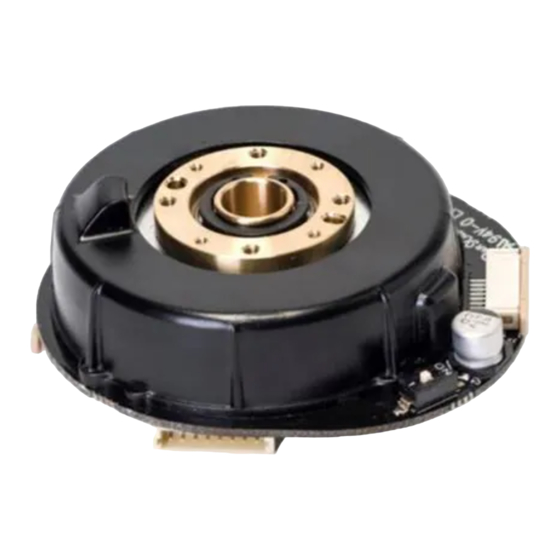

Servotorq™ Intelligent Servo Motor
Part No. OVU00243 – OVU00244 and Variants
Thank you for purchasing Overview's Leto Integrated Servo Motor.
To quickly get up and running with your Leto motor, please refer to the
Technical Manual, I²C Protocol Guide and Application Notes located at:
Please observe the following precautions when handling and
Reference Information:
The Leto I²C control interface uses 3.3V and requires pull-ups to this voltage. Do
NOT use higher voltages. Please see the Technical Manual for further details and a
reference interface circuit.
Warning: If Battery powered the drive will require Surge, In-Rush Current, Reverse
Polarity and Overvoltage Protection.
Overview House Kingswey Business Park Forsyth Road Woking GU21 5SA United Kingdom
© Overview Ltd 2023
http://www.overview.co.uk/technical-support/
operating the Leto motor:
• The Leto motor uses semiconductors which can be damaged
by electrostatic discharge (ESD). The motor must be handled
and stored in an ESD safe environment.
• The Leto motor's nominal supply is 24V DC (Operating Voltage
is 21.6-26.4V), using up to 600mA DC. Do NOT hot-plug the
power supply.
Beware! When the drive is powered, it will rotate. This is part of
the initialisation process and is outlined in the Technical Manual.
During this process the drive will draw current up to the
maximum rated value.
www.overview.co.uk
Overview Limited
OVZ20019 Rev 2
