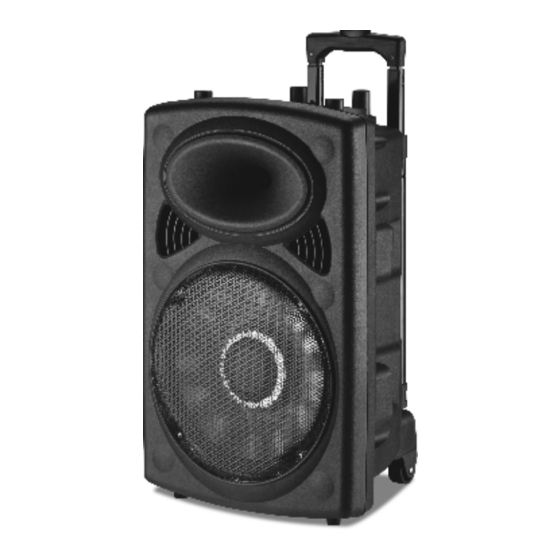

H&A TQ-LT1202, TQ-LT1205, TQ-LT1501, TQ-LT1504 - Professional Speaker Manual

IMPORTANT SAFETY MEASURES

Before using this machine, please read all the safety and operating instructions, meanwhile, please observe all the indications about safe operating. These safety and operating instructions should be kept in condition of consultation.

1. Protection of electric power supply line: Be aware that the electric power supply line is not tramped, pressed by heavy objects. Pay special attention to the plug of power supply line and outlet on the machine. DO NOT lengthen the electric shock, DO NOT pull or drag or the power supply line.
2. Ventilation: This set must be put in ventilated place. DO NOT put disk on it or cloth to cover it. Thedistance away from the wall should not be less than 10 centimeters. DO NOT put this set on the bed, sofa, carpet or other objects with similar surface in case of good ventilation.
3. Casing Dismantling: DO NOT dismantle the casing. If one touches the inner components, he will probably get serious electric shock.
4. Unusual smell: When you discover unusual smell and smoke, cut power supplies immediately andpulls out the plus from the outlet on the wall. Contact the sell shop or nearest repairing center.

Attention:
This set applies to AC 110V~240V / 50Hz~60Hz power supply. Use standard power supply.
Please be sure for te correct power supply before use it.

PRODUCT FEATURES

• Wireless
• Plays Mp3 files stored in SDC card/USBC drive/external audio device.
• FM radio
• Guitar input
• Microphone inputs
• Wireless microphone included
• With remote control
• Built-in rechargeable battery
• Super dynamic sound speaker

REAR PANEL FUNCTION INSTRUCTION

REMOTE CONTROL

Standby
USBC/SDC/LINE (Audio input)
Prev/FM CH- Play/pause/FM tuner
Next/FM CH+
Repeat
Stop
Volume up
Volume down
Mute
Equalizer
Number

TQ-LT1202 / TQ-LT1205 / TQ-LT1501

1. VOLUME: MASTER VOLUME ADJUST
2. TREBLE: TREBLE ADJUST
3. BASS:BASS ADJUST
4. MIC PRI: MICROPHONE PRIORITY ON/OFF SWITCH
5. ECHO: ECHO ADJUST
6. MIC VOL: MICROPHONE VOLUME ADJUST
7. GUITAR VOL: GUITAR VOLUME ADJUST
8. MIC IN / GUITAR IN:
   MICROPHONE INPUT SOCKET
   GUITAR INPUT SOCKET
9. TF /USBC/SDC CARD INPUT
10. USBC PANEL FUNCTION:
    MODE: MODE SELECT
    REC: RECORD: INSERT THE USB MEMORY/SD CARD AND PRESS THIS BUTTON TO START RECORDING. PRESSING THE BUTTON AGAIN STOPS RECORDING.
    REP: MODE SELECT
    : PLAY/PAUSE; FM STATION AUTO SEARCHING
    : PREVIOUS
    : NEXT
11. 12V EXTERNAL INPUT
12. MP3 IN
13. EXTERNAL AUDIO JACK
14. FM ANTENNA
15. POWER SWITCH
16. AC POWER INPUT: UNIVERSAL 110~240V/50-60Hz
17. LED LIGHT ON/OFF SWITCH

TQ-LT1504

1. VOLUME: MASTER VOLUME
2. BASS: BASS CONTROL
3. TREBLE: TREBLE CONTROL
4. MIC BASS: MIC BASS CONTROL
5. MIC TREBLE: MIC TREBLE CONTROL
6. MIC DELAY
7. MIC ECHO
8. MIC VOLUME CONTROL
9. GUITAR VOLUME CONTROL
10. WIRE MICROPHONE JACK
11. GUITAR JACK
12. MICROPHONE PRIORITY BUTTON
13. DISPLAY SCREEN
14. TF CARD INPUT
15. USB INPUT
16. SD CARD INPUT
17. FM ANTENNA
18. LED LIGHT SWITCH
19. EXTERNAL AUDIO INPUT
20. POWER SWITCH
21. 12V EXTERNAL POWER INPUT
22. AC POWER INPUT: UNIVERSAL 110~240V/50~60Hz
23. USB PANEL FUNCTION:
    : MODE SELECT / VOICE PROMPT(FM RADIO/LINE/WIRELESS MODE SELECTION)
    : RECORDING; INSERT USB/SD CARD PRESS THIS BUTTON FOR RECORDING, PRESS AGAIN TO STOP AND PLAY RECORDING SOUND
    : REPEAT: PUT A SONG ON REPEAT
    : PLAY/PAUSE; FM STATION AUTO SEARCHING
    : PREVIOUS
    : NEXT

WIRELESS INSTRUCTION

Change the mode into "BLUC", the wireless sign light twinkles, and speaker have sound "di". Set on mobile phone, connect to wireless data, search equipment and match properly. The proper connect wireless lights keep on, and music work on speaker normally.

CONNECTING

1. This set applies to AC 100V-240V, 50/60Hz
2. AC power: battery can be charged when connected to AC power. Red light on battery is charging, it will change to green once bat tery complete charge.
3. Internal battery will be charged even device switch off when plu gged in to AC power
4. Speaker battery can be charged using 12V external car battery as well(connect cable not included) by "DC 12V input". Please make sure "+" and "-" in right connection.
5. Adjust function keys to your personal audio preference.

BATTERY & CHARGING

1. The units takes approximately 8 hours to fully charge. It will automatically begin charging once the power cord is connected.
2. If the battery power is low may caused sound distortion or stop play, please charging the battery on time.
3. To maximize the battery's lifespan, please charging the battery immediately. When the unit is not used for prolonged periods of time, the battery will gradually lose its power. It is recommended to fully charge the battery at least every 30days.
4. To saving battery, please power off once stop using.
