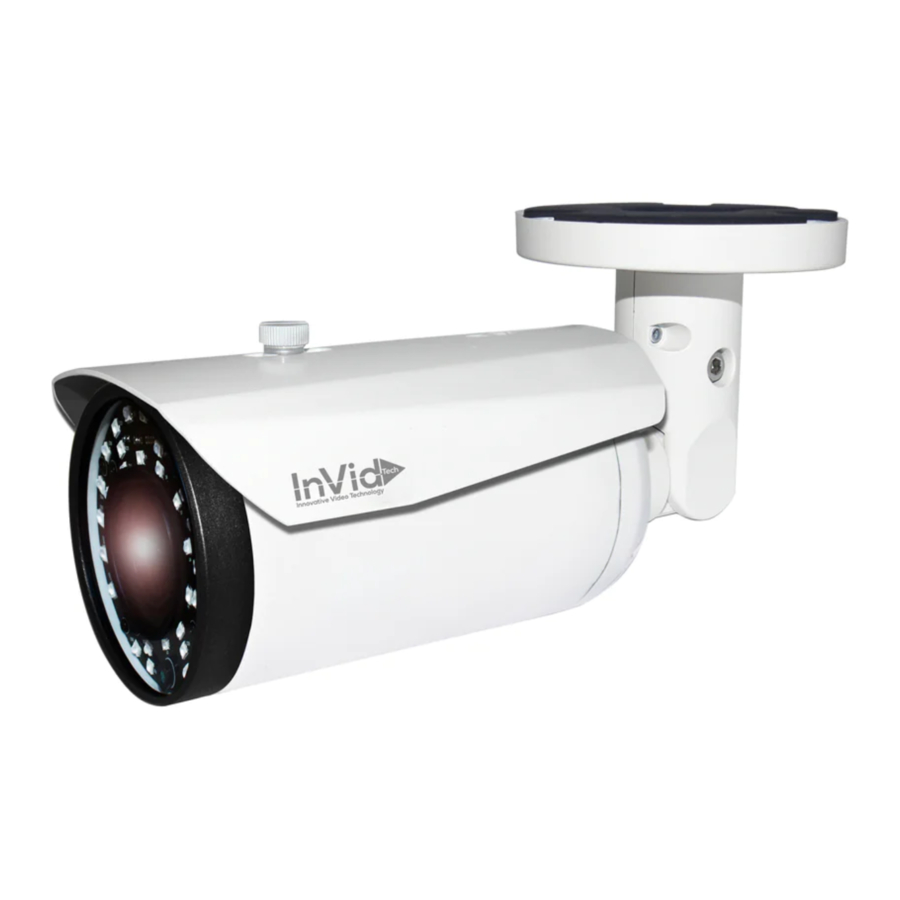

InVid PAR-ALLBIRA650D - Analog High Definition 4 IN 1 IR Camera Manual

Overview

ITEM №: PAR-ALLBIRA650D

Caution for Installation

1. In order to prevent electronic shock, don't loosen any screws or covers.
2. Do not directly touch the front glass. If necessary, use a soft cloth moistened with alcohol to wipe off the dust.
3. Avoid places where there are frequent vibrations or shocks.
4. Don't operate the camera beyond its temperature, power source ratings.
5. When any abnormalities happen, make sure to unplug the camera and contact your local dealer.

Packing

1. Camera X1
2. User Manual X1
3. Screw X3
4. Plastic-Conical-Anchor X3
5. Hexagonal Wrench X1
6. Mounting drawing paper X1
7. DC Connector X1

Use the OSD joystick to switch the camera to

OSD Cable

1. °L" for left direction
2. °R" for right direction
3. °UP" for upwards direction
4. "DOWN' for downwards direction
5. Press the button for OSD menu

Video signal output switches

TVI DVR Coaxial Signal Control and Auto Focus Lens

1. Menu
   As shown in Picture:
   1. Shows the up, down, left and right direction of the menu;
   2. Shows the enter/confirm button of the menu
2. Lens Auto Focus
3. Shows lens focus (Near/Far) of the Auto focus lens, and
4. shows Zoom(wide/tele) of the AUTO focus lens. When Keep pressing "Focus" or "Zoom" buttons, the lens will keep moving, only after "Focus" or "Zoom" button without pressing, the lens will focus automatically.

Specification

Remark: Non-regulative adaptor may cause camera damaged.
