ANIMATED FIGURE INSTRUCTIONS
Congratulations! You are the proud owner of a Fire & Ice
Please read the directions carefully before use.
Please keep these instructions for future reference because they contain important information.

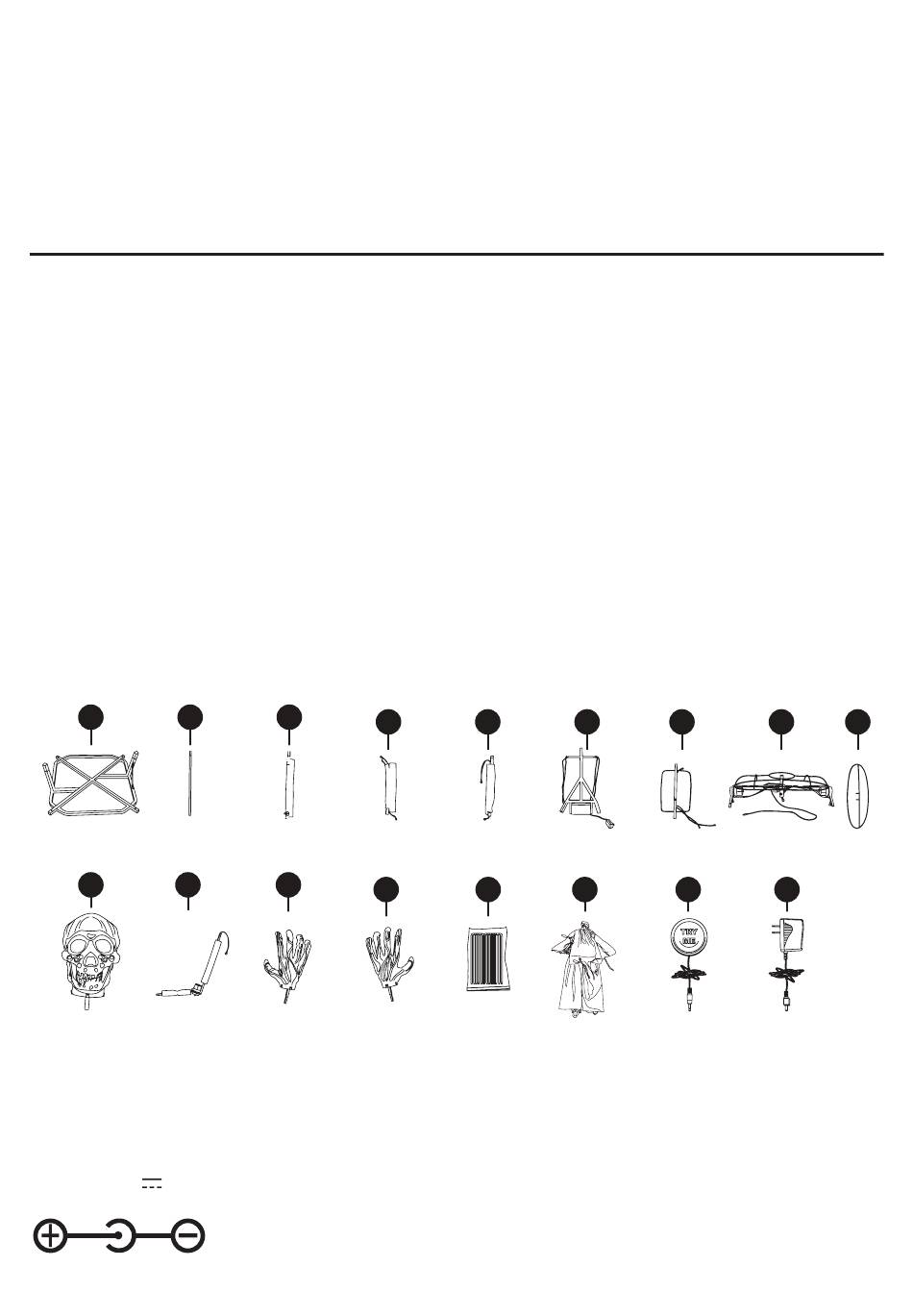

PACKAGE CONTENTS

A
Base
B
Poles
C
Poles
D
Poles
E
Poles
F
Triangular Support
G
Breast Support
H
Shoulder Support
I
Wais
J
Head
K
Arms
L
Right Hand
M
Left Hand
N
Yard Stakes
O
Coat
Q
Try Me Button
R
Adaptor
A
B
x1
x4
J
K
x1
x2
Input: 100--240V 50/60Hz 0.5A Max
Output: 5.9V
1.5A
C
D
x2
x2
L
M
x1
x1
Giant Animated Reaper.
TM
1 piece
4 pieces
2 pieces
2 pieces
2 pieces
1 piece
1 piece
1 piece
1 piece
1 piece
2 pieces
1 piece
1 piece
1 piece
1 piece
1 piece
1 piece
E
F
x2
x1
N
O
x1
x1
229689
G
H
x1
x1
Q
R
UL Power Adapter Spec
Input:100-240V-50/60Hz
Output:5.9V 2A
Try me button
x1
x1
pg.1
I
x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fire & Ice Giant Animated Reaper and is the answer not in the manual?

Questions and answers

Summary of Contents for Gemmy Fire & Ice Giant Animated Reaper

  • Page 1 pg.1 229689 ANIMATED FIGURE INSTRUCTIONS Congratulations! You are the proud owner of a Fire & Ice Giant Animated Reaper. Please read the directions carefully before use. Please keep these instructions for future reference because they contain important information. PACKAGE CONTENTS Base 1 piece Poles...
  • Page 2 pg.2 PREPARATION Estimated assembly time: 15-20 minutes. Before beginning assembly, remove all parts from carton. Compare parts list and diagram above. If any part is missing or damaged, do not attempt to assemble or use the product. ASSEMBLY INSTRUCTIONS 1. Set base (A) and pieces on a clear, flat surface. Places poles (C) on the top in the holes of the base (A), and make sure the clips on the top of the poles face towards the outsides of the base (A).
  • Page 3 pg.3 3. Place the triangular support (F) on the top of the poles, and make sure the clips on the top of the poles face towards the outsides of the base (A), then connect the cord from the triangular support (F) to the cord from the poles (E).
  • Page 4 pg.4 5. Connect the assembled torso to the breast support (G), and make sure the clips on the top of the poles face towards the outsides of the base (A), then connect the cord from the shoulder support (H) to the cord from the breast support (G).
  • Page 5 pg.5 8. Attach the head (J) as shown, making sure it clicks securely into place. Then connect the cord from the shoulder support (H) to the cord from the head (J). Adjust as desired. See illustration 8. Illustration 8 9. The upper body of the 12 foot skeleton needs to be lifted while in its laying position. More than 2 people are strongly recommended for this step.
  • Page 6 •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. THESE INSTRUCTIONS APPLY TO THE FOLLOWING ITEM NUMBER 229689 Visit WWW.GEMMY.COM for more information. ©2022 GEMMY INDUSTRIES CORP. 117 WRANGLER DRIVE. SUITE 100 COPPELL, TX 75019 U.S.A.
