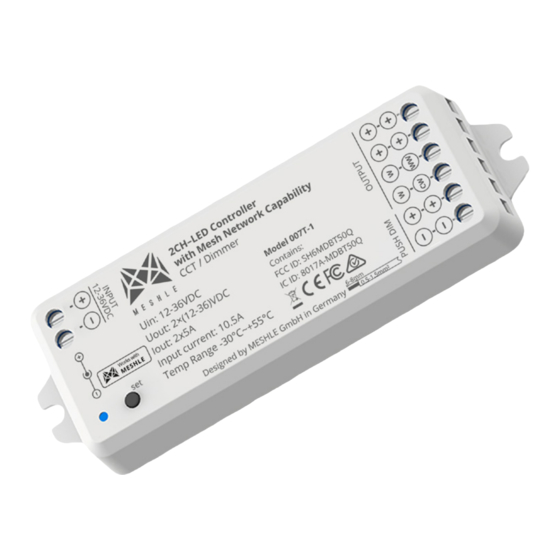

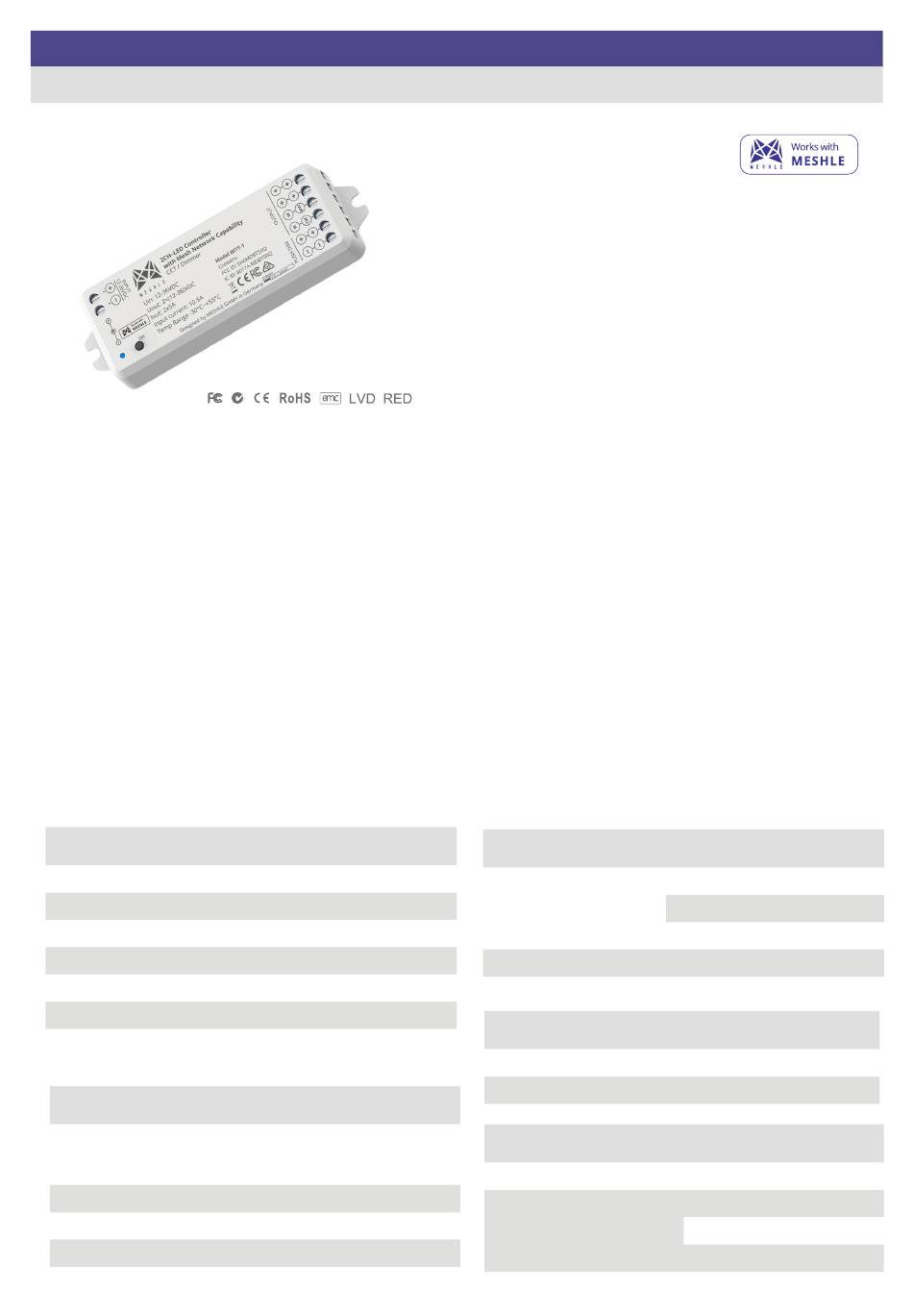

MESHLE flex Duo – 2-Channel Universal LED Driver with Bluetooth Mesh Connectivity
Model 007T-1
Features
•
Designed for single color or color temperature LED strip control.
•
Equipped with a DC power socket input and 2-channel constant voltage output.
•
Allows connection to an external push switch for on/off and 0-100% dimming control.
•
Compatible with MESHLE: Enables wireless connection with other devices in a Bluetooth Mesh Network and control
via the MESHLE App.
•
Supports automation features: Timers (Week/Sunset, Sunrise), If-Else Rules.
•
Adjustable settings include Power Up State and Fade transition duration.
•
Offers group control capability: can be operated individually or as part of a group.
•
When paired with an optional Gateway, enables control via the Internet or voice-activated platforms such as Amazon
Alexa or Google Assistant.
•
Compatible with both Battery-Powered and Battery-Free Switches and Sensors ( see https://meshle.com/ecosystem
for more details).
Technical Parameters
Input & Output
Input voltage
Input current
Output voltage
Output current
Output power
Output type
Dimming data
Input signal
Dimming range
Dimming curve
PWM Frequency
User Manual Ver. 1.0.0
12-36VDC
10.5A
2 x (12-36)VDC
2CH,5A/CH
2 x (60-180)W
Constant voltage
MESHLE App, Push Button, Blue-
tooth Mesh Network, Cloud or
Local Network (Gateway needed)
0 -100%
Logarithmic
2000Hz (default)
MESHLE flex Duo Smart Bluetooth LED Control-
ler is a control module for LED light strips of
various types. The output channels of MESHLE
flex Duo can be reprogrammed flexibly, depending on the type of LED
strips. Thus, CCT or Single Color LED light strips can be connected to the
controller.
Configuration and operation is done via MESHLE app, where you can set
colors, scenes, animations, timers and many other features. No Wi-Fi,
hub or other hardware is required. The controller is ready for use im-
mediately after it has been connected. Each MESHLE flex controller au-
tomatically connects to another MESHLE-enabled device via Bluetooth,
creating a Bluetooth mesh network. In this network, the controllers can
be operated individually or in a group via smartphone.
Safety and EMC
EMC standard (EMC)
Safety standard(LVD)
Radio Equipment(RED)
Certification
Environment
Operation temperature
Case temperature (Max.)
Warranty and Protection
Warranty
Protection
ETSI EN 301 489-1 V2.2.3
ETSI EN 301 489-17 V3.2.4
EN 62368-1:2020+A11:2020
ETSI EN 300 328 V2.2.2
CE,EMC,LVD,RED
Ta: -30 OC ~ +55 OC
Tc: +85°C
5 years
Reverse polarity
Over-heat
Short circuit
