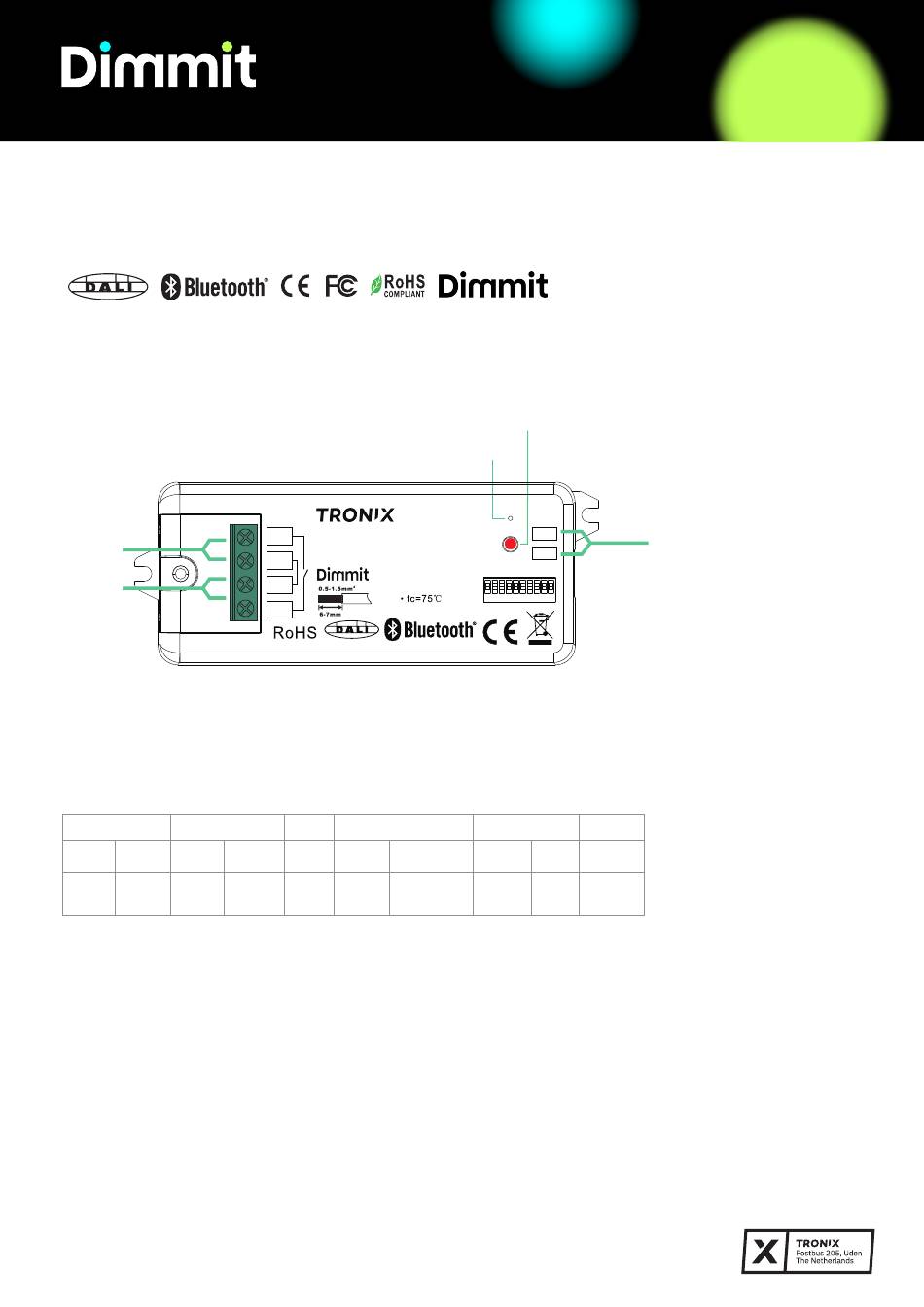

Bluetooth to DALI+0/1-10V 2 in 1 Converter
Article 214-305
Important: Read All Instructions Prior to Installation
Function introduction
110-240V
power input
Relay output,
max. 5A
Dip switches to select DALI or 0/1-10V output, DALI DT6 or DT8 color type, DALI address or
group control mode, DALI address to be controlled, DALI group to be controlled
Product Data
Input
Output, DALI
DALI PS
DALI current
Signal
Power
consumption
current
Bluetooth
110-240VAC
Max. 50mA
Max. 4mA
2.4GHz
Bluetooth to DALI+0/1-10V 2 in 1 converter based on bluetooth mesh network
•
Bluetooth signal input, DALI signal output to DALI line or 0/1-10V signal output, 110-240VAC power input
•
With relay output, max. 5A for traditional incandescent & HV halogen lamps, max 1.6A for LED load
•
Compatible with universal bluetooth gateway
•
DALI signal or 1-10V signal output selectable by DIP switch
•
Built-in DALI bus power supply, no extra DALI bus PS required
•
With max. 50mA DALI bus power current output
•
To supply control current to up to 25 DALI control gears
•
DALI DT6 or DT8 device type selectable by DIP switch under DALI mode
•
Color control according to DALI specifications of Device Type 8,
•
Color type: Tc, XY coordinates, RGBW selectable by DIP switches
•
DALI address control mode or group control mode selectable by DIP switch
•
Enables to select the DALI address (00-63) to be controlled by DIP switches
•
Enables to select the DALI group (0-15) to be controlled by DIP switches
•
Enable to control 1 DALI Group of devices or 1 DALI Address on DALI line
•
• Enable to control all devices on DALI line via broadcast
• Waterproof grade: Ip20
USER MANUAL
LED indicator
Bluetooth
to
DALI+0/1-10V
L
2 in 1 Converter with Relay
Input/Output: 110-240V ~ 50/60Hz
N
Max 5A
Art. 214-305
N
L1
ta=-20 ℃-+50℃
Tronix Lighting | 5406XP 41 | Netherlands
Program key, short press 5 times to reset the device
Output,
Output, relay
0/1-10V
Switching
Current
Max. Current
voltage
Incandescent: 5A
Max. 20mA
110-240VAC
LED: 1.6A
Program key, short press 5 times to reset the device
DALI
0/1-10V
DA/-
Prog.
DA/+
DALI (DA, DA)
DALI Add.
0/1-10V output (+, -)
1 2 3 4 5 6 7 8 9 10
Environment
Others
Operating
Relative
Dimensions
temperature
humidity
-20℃-+50℃
8% to 80%
95x37x20
or
mm
Advertisement
Table of Contents
Summary of Contents for Tronix Dimmit 214-305
- Page 1 1 2 3 4 5 6 7 8 9 10 max. 5A ta=-20 ℃-+50℃ Tronix Lighting | 5406XP 41 | Netherlands Program key, short press 5 times to reset the device Dip switches to select DALI or 0/1-10V output, DALI DT6 or DT8 color type, DALI address or...
- Page 2 USER MANUAL Safety & Warnings • DO NOT set the DIP switches with power applied to the device. • DO NOT install with power applied to device. • DO NOT expose the device to moisture. Operation 1) Select DALI or 0/1-10V Output Using Dial Switch 10 Dial up 1 2 3 4 5 6 7 8 9 10...
- Page 3 USER MANUAL 5) Select the DALI Address to be Controlled Using Dial Switches 1-6 Note: here device type is selected as DIM as an example, please select your correct DALI device type. Dial up 1 2 3 4 5 6 7 8 9 10 Dial down Controlled address 1 2 3 4 5 6 7 8 9 10...
- Page 4 USER MANUAL Step 3: Then LED indicator will stay solid on to indicate the bluetooth to Step 1: Download the smart APP (searching Dimmit” from App Store and DALI+0/1-10V converter is added successfully. Then you can control it Google Play) and setup an account. Then add the bluetooth device. through the APP.
- Page 5 DA/+ Input/Output: 110-240V ~ 50/60Hz DALI Add. Max 5A Art. 214-305 1 2 3 4 5 6 7 8 9 10 ta=-20 ℃-+50 ℃ Tronix Lighting | 5406XP 41 | Netherlands DIM+ LED+ DIM- 0/1-10V Dimmable LED+ Driver LED light...
