Summary of Contents for Aim RC612

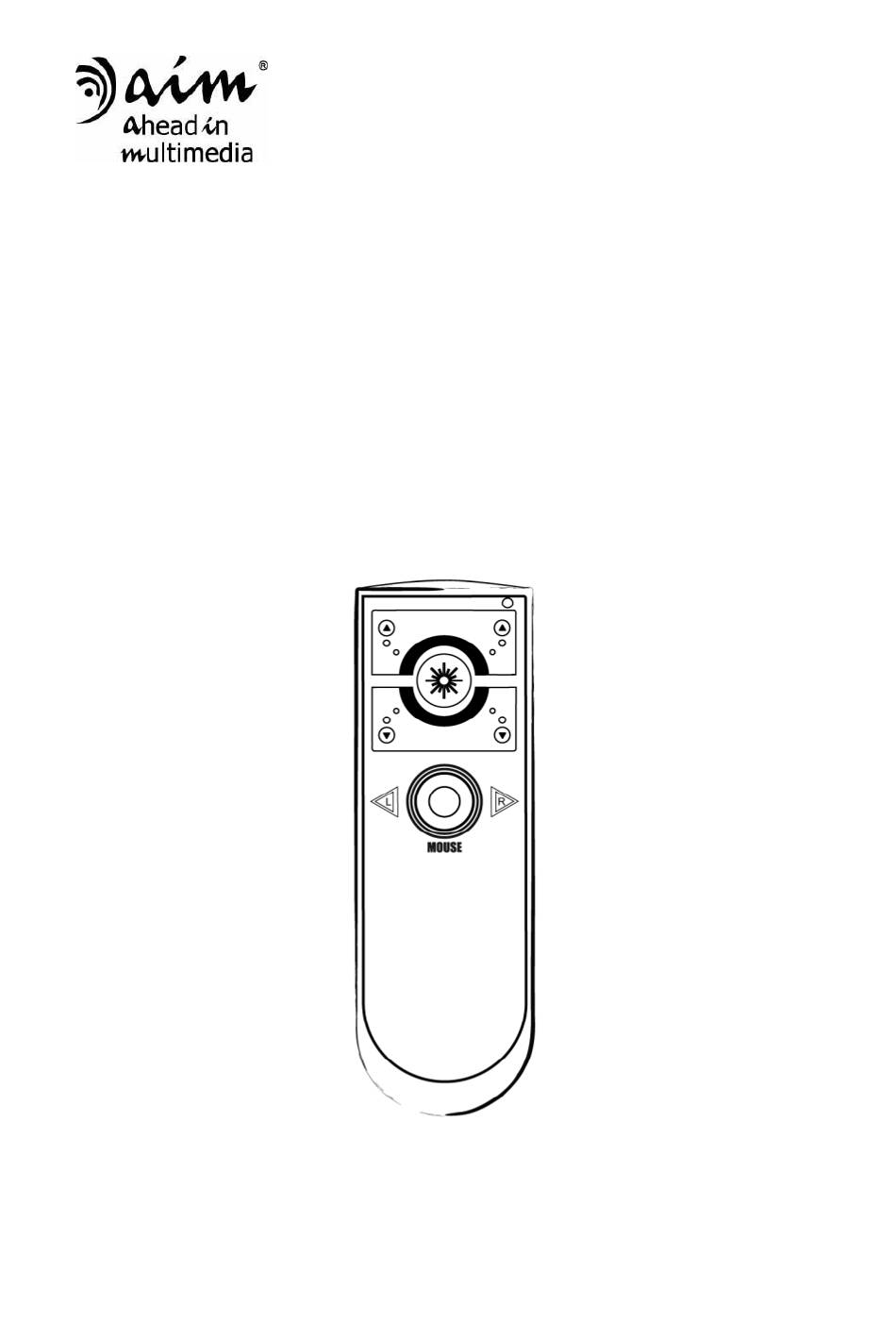

  • Page 1 Presenter User’s Manual RC132/612...
  • Page 2 RF132, Presenter with RF wireless technology !!! Attention!!! A. Do not allow minors to use the laser pointer unsupervised. Laser pointers are not toys. B. Avoid direct eye exposure. C. Never shine the laser pointer at anyone. The laser pointer is designed to illustrate inanimate objects.

  • Page 3: Table Of Contents

    RF132, Presenter with RF wireless technology Table of Content INTRODUCTION ......................3 FEATURES........................4 PACKAGE CONTENTS ..................... 5 SYSTEM REQUIREMENTS ..................5 INSTALLATION AND OPERATION ............... 6 ........6 PEN THE BATTERY COVER AND NSTALL BATTERIES .................... 6 NSTALL ECEIVER 3.

  • Page 4: Introduction

    RF132, Presenter with RF wireless technology Introduction Thank you for purchasing Presenter. Please read this user’s manual carefully before operating the unit, and keep it for future reference. The wireless presenter is the ideal wireless remote controller for large-scale presentations and conference rooms. 2.4GHz of wireless technology lets you concentrate on your presentation.

  • Page 5: Features

    RF132, Presenter with RF wireless technology Features 1. 2.4 GHz RF wireless transmission provide up to 20 meters omni- directional working range. 2. Built-in laser pointer for presentation guidance. 3. Built-in cursor mouse for 360-degree control. 4. Plug and Play. No driver required. 5.

  • Page 6: Package Contents

    RF132, Presenter with RF wireless technology Package Contents  Presenter  USB type RF Dongle receiver  aimMaster EZ Software Microsoft ® Windows ® 2000/ XP/ (for Vista/ 7 /8 and User’s Manual CD-ROM  Two AAA batteries  Quick Guide System Requirements ...

  • Page 7: Installation And Operation

    RF132, Presenter with RF wireless technology Installation and operation 1. Open the battery cover and Install batteries Open the battery cover of presenter and take off the receiver with 45 degrees angle from the receiver dock before you start to use. (Please insert the receiver into the receiver dock of the presenter with 45 degrees angle after the presentation.

  • Page 8: Presenter Button Function

    RF132, Presenter with RF wireless technology following steps to pair the presenter and the receiver: Pairing A. Press and hold both UP and DOWN buttons around 3 seconds until the red indicator on the presenter flashes. Release both buttons. B. Put your presenter close to the receiver within 5 cm (2 inches) and C.

  • Page 9: Indows ® 2000/Xp/ Vista /7

    RF132, Presenter with RF wireless technology Power on/off button Receiver dock Button Function PAGE UP button (suit for left-handed or right-handed user) PAGE DOWN button (suit for left-handed or right-handed user) LASER button (if receiver is put into presenter, the laser power is off and can’t operate) Mouse LEFT button Mouse RIGHT button Mouse STICK (use your finger tip to push...

  • Page 10: Install

    RF132, Presenter with RF wireless technology Click “Next” Click “Next” Click “Install”...
  • Page 11 RF132, Presenter with RF wireless technology Choose “Yes, I want to launch aimMaster EZ now” and click “Finish” to start using aimMaster EZ. Double Click the shortcut icon of aimMaster EZ exe file shown on your desktop to activate aimMaster EZ. The message window will pop up 3 seconds to remind you that the aimMaster EZ is activated.

  • Page 12: Use Aimmaster Ez

    RF132, Presenter with RF wireless technology Microsoft ® Windows ® 2000/XP/ Vista/7 5. Use aimMaster EZ Plug and Present Unplug the receiver and plug into the computer for the presentation. Set File-Link Right click the aimMaster EZ icon on the system tray and select “File Menu”...
  • Page 13 RF132, Presenter with RF wireless technology In a presentation, you can use the mark pen to highlight some important articles or blank the screen to catch the audiences’ attention. aimMaster EZ supports two mark pens, Check Pen and Line Pen. It also provides a blank function.
  • Page 14 RF132, Presenter with RF wireless technology Line Pen Mode Click the RIGHT button once; aimMaster EZ will go from the Check Pen Mode into the Line Pen Mode. The cursor symbol becomes the aimMaster EZ icon on the system tray is changed from into In the Line Pen Mode, press and hold the LEFT button...
  • Page 15 RF132, Presenter with RF wireless technology Clear all Marks To clear all Check/Line Marks, you may either click PAGE DOWN button once, or, press the ESC key of your keyboard. aimMaster EZ is then disabled. When you want to use mark pen again, press and hold RIGHT button for 2 seconds to enable aimMaster EZ and enter the Mark Pen Mode as we described previously.

  • Page 16: Trouble Shooting

    RF132, Presenter with RF wireless technology TROUBLE SHOOTING You can’t use the mark pen when you press and hold the RIGHT button for more than 2 seconds You need to run aimMaster EZ exe file before you can enable the aimMaster EZ.
  • Page 17 RF132, Presenter with RF wireless technology presenter buttons. When you press and hold any button other than LASER for more than 1 second, the red indicator flashes for about 1 second:  The receiver is not plugged into the computer. Plug the receiver into the USB port of your computer.
