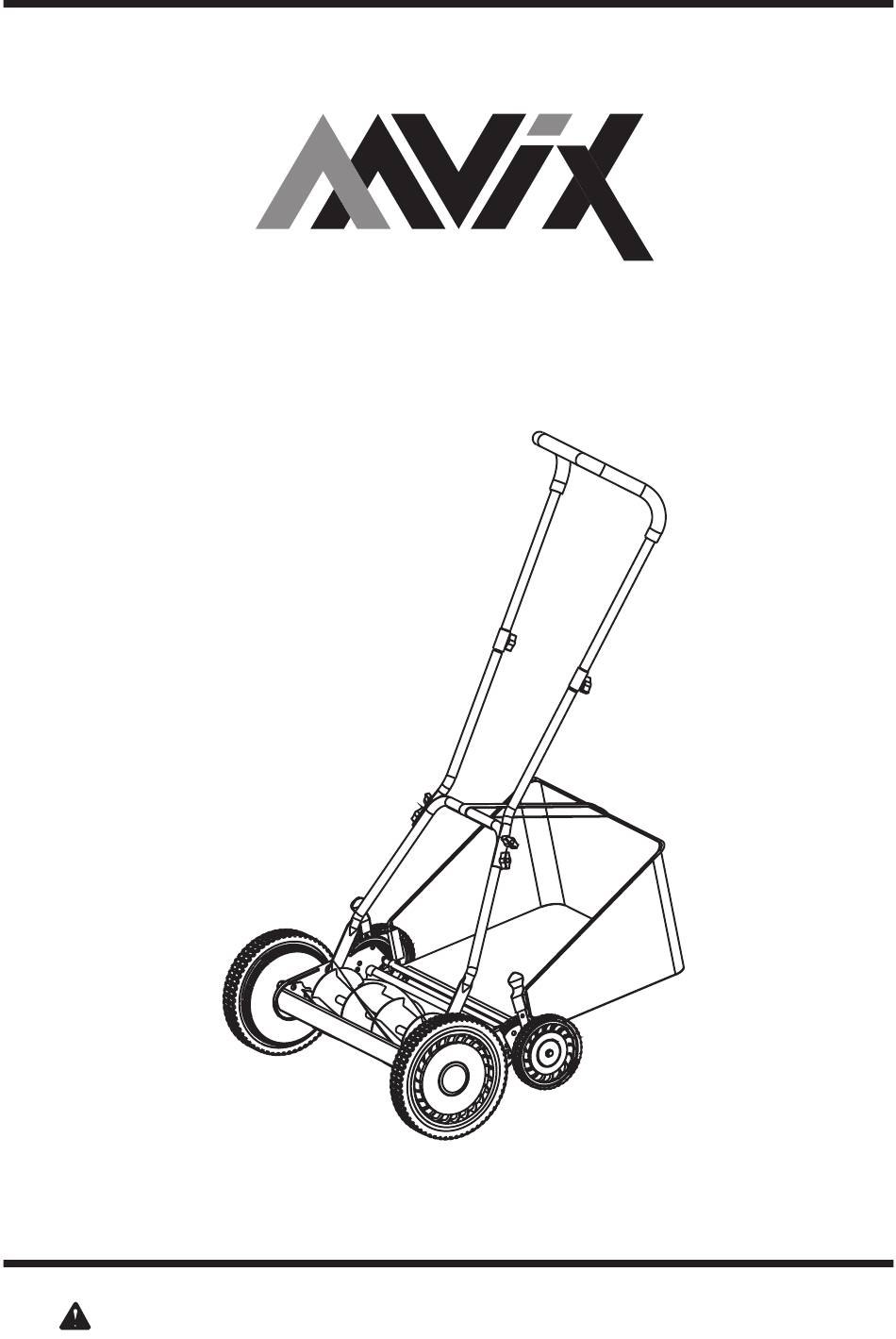

- Page 1 20" REEL MOWER AGT9320 Owner’s Manual TOLL-FREE HELPLINE: 1-866-591-8921 Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Safety Information
SAFETY INFORMATION IMPORTANT SAFETY INSTRUCTIONS I M P O R T A N T READ AND UNDERSTAND ALL INSTRUCTIONS. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. • Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases, or dust. -
Page 3: General Operation
SAFETY INFORMATION SPECIFIC SAFETY RULES FOR REEL MOWER W A R N I N G This symbol points out important safety instructions, which if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate this machine. -
Page 4: Child Safety
PRODUCT SPECIFICATIONS 20" REEL MOWER Model#......................... AGT9320 Cutting path ....................20” (50 cm) Height adjustments ..............1 3/8 - 2 1/2” (3.5-6.4 cm) Number of blades..................5 Helical blades... -
Page 5: Know Your Reel Mower

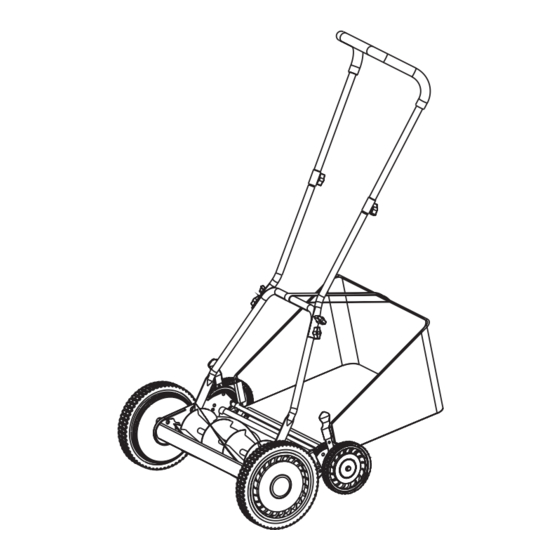

KNOW YOUR REEL MOWER Read this operator's manual and safety rules before operating your reel mower. Compare the illustration in Figure 1 to your reel mower in order to familiarize yourself with the location of various controls and adjustments. Save this manual for future reference. Upper handle Middle handle Lower handle... - Page 6 ASSEMBLY INSTRUCTIONS UNPACKING Before attempting to assemble, empty carton and compare parts with parts list below. • Carefully remove the product and any accessories from the box. • Inspect the parts to make sure no breakage or damage occurred during shipping. •...
- Page 7 ASSEMBLY INSTRUCTIONS W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Do not use any attachments or accessories not recommended by the manufacturer of this product.
- Page 8 ASSEMBLY INSTRUCTIONS ATTACHING THE HANDLE TO THE MOWER BASE (See Figure 5) Align holes (1) at the lower end of each handle arm with posts (2) extending from the mower base side plates. Slide lower ends of handle arms onto posts. Fig.
- Page 9 ASSEMBLY INSTRUCTIONS ATTACH THE REAR BAG (See Figure 6-8) • Take out all components in the packing (Fig. 6). • Place the hooks on the rear bag onto the roller shaft. Secured the bag to the lower handle using the belt supplied. (Fig. 7). •...
- Page 10 OPERATING YOUR REEL MOWER CUTTING HEIGHT ADJUSTMENT (See Figure 9) • The cutting height of the mower adjusts from 1 3/8 - 2 1/2” (3.5-6.4 cm) with 9 positions for adjustment height by moving the height adjustment levers to the required position. •...
-
Page 11: Checking The Adjustment
OPERATING YOUR REEL MOWER MOWER BLADE ADJUSTMENT (See Figure 11) W A R N I N G BLADES ARE EXTREMELY SHARP. TO AVOID INJURY, DO NOT TOUCH BLADES WHEN MAKING ADJUSTMENTS. Blades are factory adjusted. NOTE: • Misalignment can occur, often caused by blades being too loose or too tight. This can cause an uneven cut or difficulty pushing the mower. -
Page 12: Care And Maintenance
CARE AND MAINTENANCE • Minimum care is required to ensure smooth operation of your mower. • To avoid damage to mower or cutting blades, keep area to be mowed free from debris. • For best results, regularly apply lubricant to mower’s cutting surfaces, cutting reel axle shaft and wheels.
