Summary of Contents for Philips 24E1N3300A

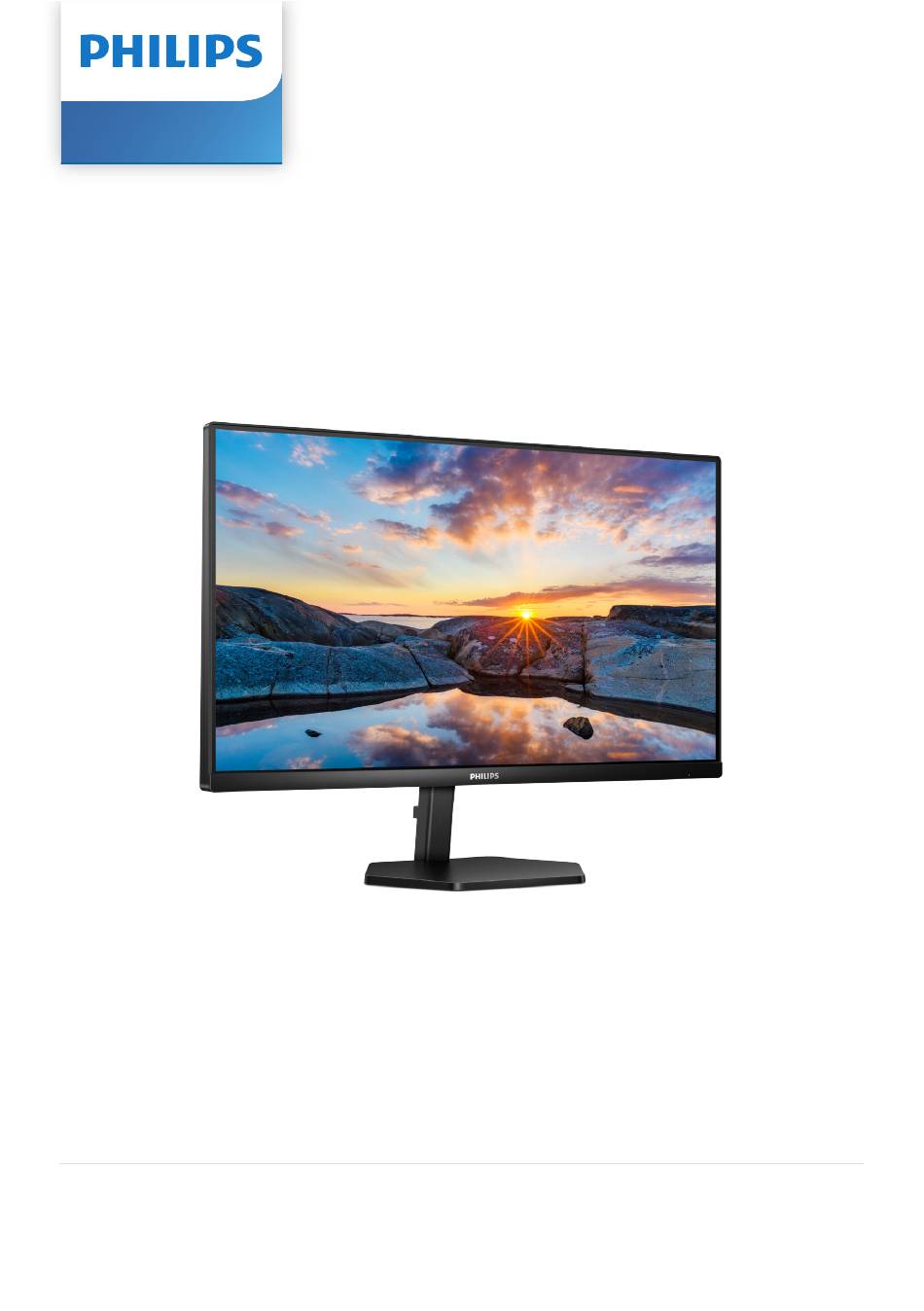

- Page 1 Monitor 3000 Series 24E1N3300A User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
6. Technical Specifications 15 6.1 Resolution & Preset Modes ..18 7 Power Management 19 8. Customer care and warranty 20 8.1 Philips’ Flat Panel Monitors Pixel Defect Policy ........ 20 8.2 Customer Care & Warranty ..23 9. Troubleshooting & FAQs 24 9.1 Troubleshooting ......24... -
Page 3: Important
This electronic user’s guide is intended • When positioning the monitor, make for anyone who uses the Philips monitor. sure the power plug and outlet are Take time to read this user manual easily accessible. before you use your monitor. It contains •... - Page 4 • Do not knock or drop the monitor • Unplug the monitor if you are not during operation or transportation. going to use it for an extensive period of time. • Excessive usage of monitor can cause eye discomfort, it’s better to take •...
-
Page 5: Notational Descriptions
1.2 Notational Descriptions known as “after-imaging” or “ghost imaging”, on your screen. The following subsections describe • “Burn-in”, “after-imaging”, or notational conventions used in this “ghost imaging” is a well-known document. phenomenon in LCD panel technology. In most cases, the “burn- Notes, Cautions and Warnings in”... -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on entails participation in national take-... -
Page 7: Setting Up The Monitor
Package contents Monitor 3000 Series 24E1N3300A Quick start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the stand. (2) Use your fingers to tighten the screw located at the bottom of AC/DC Adapter the base. - Page 8 HDD, for example. The display must be powered ON at all times to be able to use this function. Some select Philips displays may not Power or Charge your device when it USB C enters to “Sleep/Standby” mode (White USB Type-A power LED blinking).
-
Page 9: Operating The Monitor
2.2 Operating the monitor Warning USB 2.4Ghz wireless devices, such Description of the control buttons as, wireless mouse, keyboard, and headphones, maybe have interference by the high-speed signal of USB3.2 devices, which may result in a decreased efficiency of the radio transmission. Should this happen, please try the following methods to help reduce the effects of interference. - Page 10 0~20 On-Screen Display (OSD) is a feature in SmartResponse O , Fast , Faster, Fastest all Philips LCD monitors. It allows an end On, O SmartFrame Size (1, 2, 3, 4, 5, 6, 7) user to adjust screen performance or...
- Page 11 It is recommended to turn off when you are not using the gaming function. • This Philips monitor is certified with AMD FreeSync™ only. The technol- ogy is used to match the refresh rate of the monitor to the graphic cards.
-
Page 12: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 0° 90° 1. Place the monitor face down on a -5° smooth surface. Pay attention not to * Display design may differ from those scratch or damage the screen. -
Page 13: Image Optimization 11
Racing, RTS, Gamer 1, Gamer 2, LowBlue in real time. Whether you're working Mode, EasyRead and Off. with text applications, displaying images or watching a video, Philips SmartImage delivers great optimized monitor performance. -
Page 14: Smartcontrast
LED displays can cause eye automatically optimizes a Monitor's damage and affect vision over time. contrast ratio for maximum visual Developed for wellbeing, Philips clarity and viewing enjoyment, stepping LowBlue Mode setting uses a smart up backlighting for clearer, crisper... -
Page 15: Amd Freesync™ 13
4 AMD FreeSync™ AMD Radeon R7 260 • ■ Processor A-Series Desktop and Mobility APUs AMD A10-7890K • AMD A10-7870K • PC gaming has long been an imperfect AMD A10-7850K • experience because GPUs and monitors update at different rates. Sometimes AMD A10-7800 •... -
Page 16: Power Delivery And Smart
What is it? brightness value of the monitor. Smart Power is an exclusive Philips You may adjust the brightness value technology that provides flexible power manually to increase power delivery delivery options for various devices. - Page 17 6 Technical Specifications Picture/Display Monitor Panel Type IPS Technology Backlight W-LED Panel Size 23.8" W (60.5 cm) Aspect Ratio 16:9 Pixel Pitch 0.2745 (H) mm x 0.2745 (V) mm Contrast Ratio(typ.) 1000:1 Optimum Resolution 1920 x 1080 @ 60 Hz Viewing Angle 178°...
-
Page 18: Power 14
Stand Tilt -5 / +20 degree Power AC Input Voltage AC Input Voltage AC Input Voltage Consumption at 100VAC , at 115VAC , at 230VAC, 50Hz 60Hz 60Hz Normal Operation 21.7 W (typ.) 21.6 W (typ.) 21.7 W (typ.) Sleep (Standby mode) 0.5 W 0.5 W 0.5 W... - Page 19 Packaging 100% recyclable Specific Substances 100% PVC BFR free housing Cabinet Color Black Finish Texture Note 1. This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet.
-
Page 20: Resolution & Preset Modes
For best output performance, please always ensure that your graphic card Recommended Resolution is capable of achieving the maximum 1920 x 1080 @ 60 Hz resolution and refresh rate of this Philips display. H. freq Resolution V. freq (Hz) (kHz) 31.47... -
Page 21: Power Management 19
7 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 22: Customer Care And Warranty 20
Other combinations of Pixel Defect Policy lit and dark sub pixels appear as single pixels of other colors. Philips strives to deliver the highest quality products. We use some of the Types of Pixel Defects industry's most advanced manufacturing... - Page 23 Black Dot Defects the warranty period, a TFT Monitor Black dot defects appear as pixels or sub panel in a Philips flat panel monitor pixels that are always dark or 'off'. That must have pixel or sub pixel defects is, a dark dot is a sub-pixel that stands...
- Page 24 BRIGHT DOT DEFECTS ACCEPTABLE LEVEL 1 lit subpixel 2 adjacent lit subpixels 3 adjacent lit subpixels (one white pixel) Distance between two bright dot defects* >15mm Total bright dot defects of all types BLACK DOT DEFECTS ACCEPTABLE LEVEL 1 dark subpixel 5 or fewer 2 adjacent dark subpixels 2 or fewer...
-
Page 25: Customer Care & Warranty
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. Philips Customer Care Center number listed below. -
Page 26: Troubleshooting & Faqs 24
• Contact with Philips customer service • First, ensure that the power button representative immediately. on the rear of the monitor is in the... -
Page 27: General Faqs
Uninterrupted display of still or Service contact information listed static images over an extended in Important information manual period may cause "burn-in", also and contact Philips customer service known as "after-imaging" or "ghost representative. imaging", on your screen. "Burn-in", * Functionality different according to "after-imaging", or "ghost imaging"... - Page 28 Shut down your computer, monitor, make sure that there is disconnect your old monitor and no pressure or force applied to reconnect your Philips LCD monitor. the panel surface side. This may • Turn on your monitor and then turn affect your warranty conditions.
- Page 29 PC, workstation or Mac? repaired. The damage mentioned above is not covered under your warranty. Ans.: Yes. All Philips LCD monitors are fully compatible with standard Q12: Why is my Display not showing PCs, Macs and workstations.
- Page 30 Ans.: Important information manual can be download on the Philips website support page.
- Page 31 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
