DECOMATIC Fitin R115 Installation Operation Care

Assembly of the roller blind

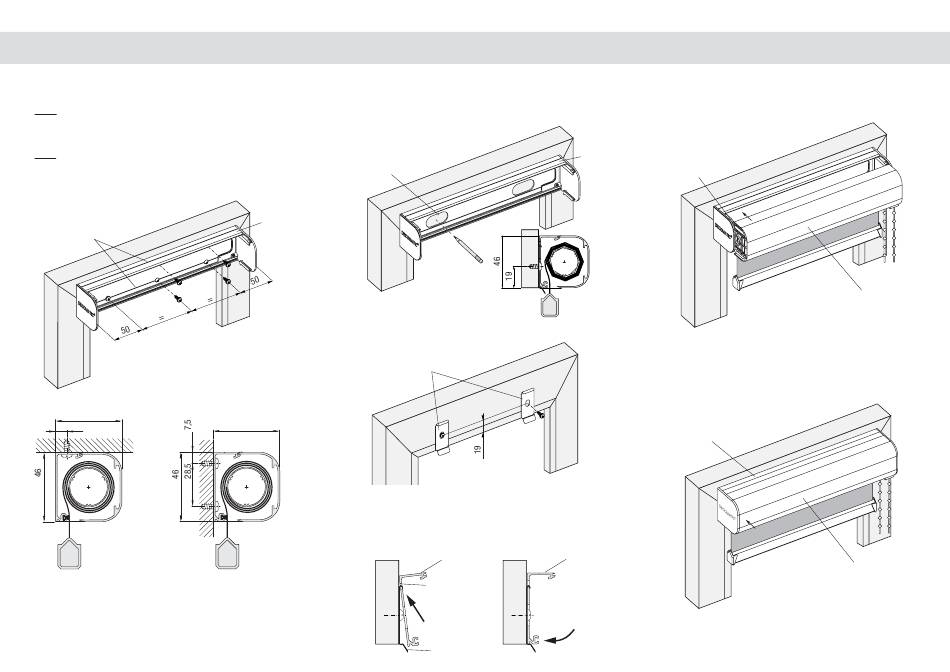

1a. Assembly of the base profile (without fastening clips)
a. Determine the number of the fastening holes.
Note: Hole distance 50 mm from the end of the profile,
space the further holes evenly.
b. Drill the base profile.
Note: The markings on the profile indicate the positions of
the drilled holes.
c. Fasten the base profile with the screws supplied.
Markings on
the profile
44
7,5
Assembly of the roller blind
1b. Assembly of the base profile (with fastening clips)
a. Position the base profile on the window and determine the
positions of the fastening clips by marking the bottom slot.
Bottom slot
Base profile
b. Fasten the fastening clips with the screws supplied.
Fastening clip
44
c. Clip the base profile into the fastening clips.
(Position the top slot of the base profile on the fastening clip and
clip in the base profile by giving it a slight turn.)
Set in position
Base
profile
Clip in
Base profile
Base profile
Top slot
Fastening clip
Assembly of the roller blind
2. Assembly of the cover profile
a. Position the cover profile on the guiding groove.
Guiding groove
b. Push the cover profile onto the base profile (snaps home at the
end).
Base profile
Cover profile
Cover profile
