Romstal WT-11 Manual

This surface-mounted radio thermostat has been developed to be able to switch electric and conventional heating
systems on and off using a set temperature and time.

Functions

Large display can be clearly read with the background lighting.
Easy to fit thermostat and receiver.
Six buttons make it easy to use.
4 periods of each day programmable(5+1+1)
The display shows the set temperature as well as the measured temperature, time.
Temperature display in degrees Celsius.

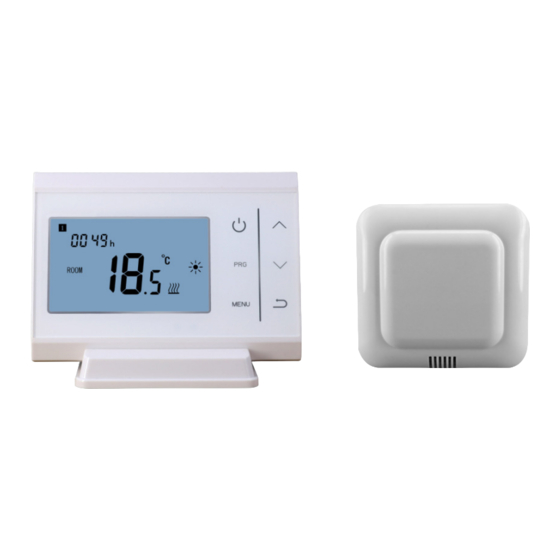

The thermostat is supplied with a wall-fixing frame, base and a very compact receiver (surface-mounted).

Technical Data

Thermostat Operating Voltage:
Backup Storage:
Receiver Current Load:
Frequency:
Channel selection:
Switching options:
Receiver switch contacts:
Temperature settings:
Accuracy:
Thermostat dimensions:
Receiver dimensions:
Color:
IP protection rating:
Certification:
Wireless Room Thermostat
2 x AAA 1.5 V, alkaline batteries.
EEPROM
220V/10A
868 MHz.
By programming the thermostat and the receiver.
5+1+1 day, 4 periods each day.
NO and NC.
5° C ~ 30° C, 0.5° C increments.
+/- 0.5° C (+/- 1° F).
Surface mounted, 135mm x 88 mm x 22mm.
Surface mounted, 86mm x 86 mm x 18mm.
White
20.
CE.
WT-11
