SKU #1008 376 336
Model #S10CNPY/850/BZ/HD
USE AND CARE GUIDE

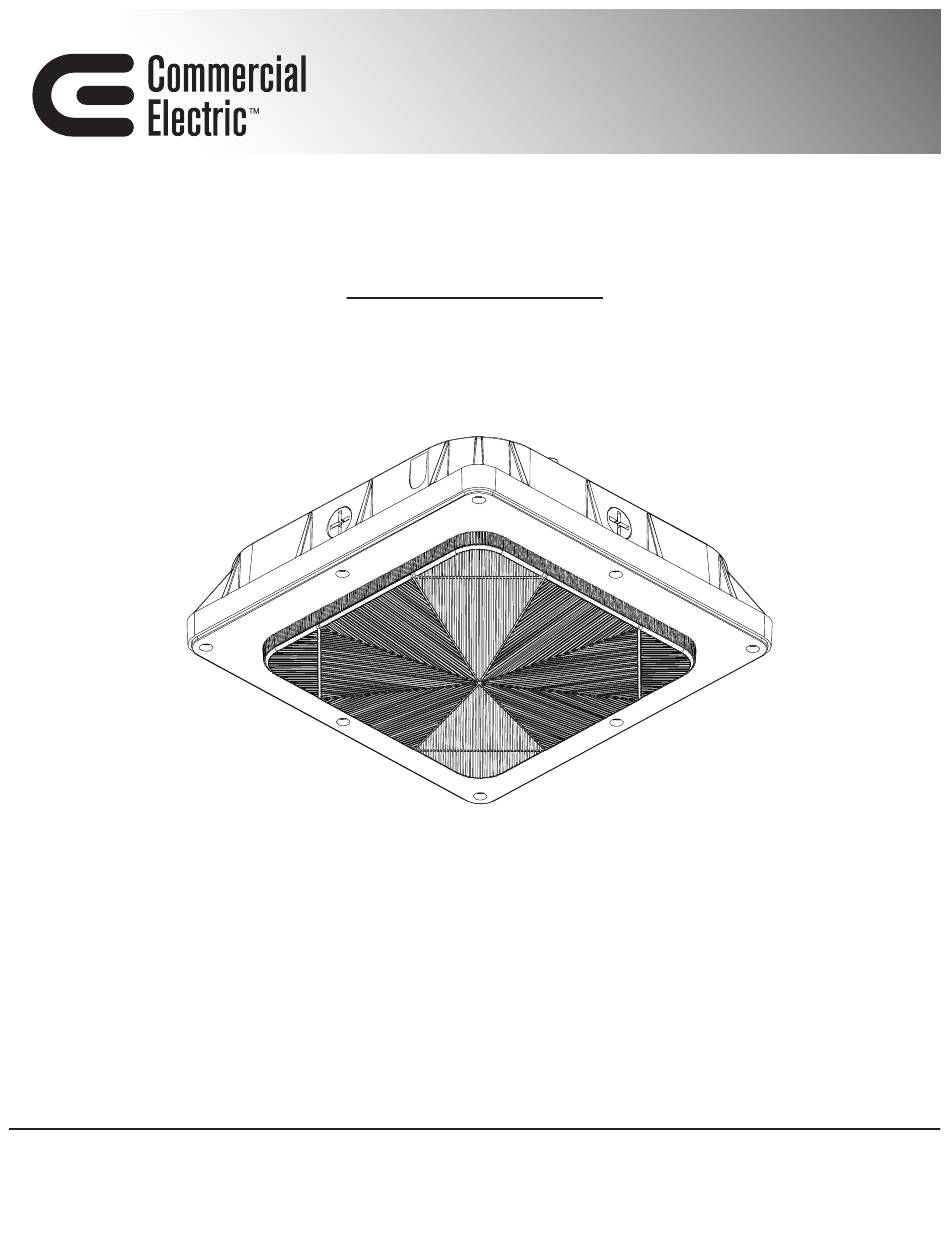

LED OUTDOOR COMMERCIAL CANOPY
Questions, problems, missing parts? Before returning to the store,
call Commercial Electric Customer Service
8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED Outdoor Commercial Canopy.
We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products
available for your home improvement needs. Thank you for choosing Commercial Electric!
Advertisement
Table of Contents
Summary of Contents for Commercial Electric S10CNPY/850/BZ/HD
- Page 1 THANK YOU We appreciate the trust and confidence you have placed in Commercial Electric through the purchase of this LED Outdoor Commercial Canopy. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products...
- Page 2 S10CNPY/850/BZ/HD the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver.
- Page 3 Pre-Installation NOTE: Hardware not shown to actual size. TOOLS REQUIRED Phillips screwdriver Drill Drill bit PACKAGE CONTENTS Part Description Quantity Outdoor Commercial Canopy Mounting Bracket Wire Nuts Plastic Anchors #10 2 in. Wood Screws J-Box Mounting Screws HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 4 Junction Mount Installation Turning Off the Power Hanging the Canopy □ Turn the power OFF at the switch and □ Hang the Canopy Fixture (AA) on fusebox or the circuit breaker. the Mounting Plate (BB) and finish wiring. See wiring diagram A below.
- Page 5 Surface Mount Installation Mounting the Canopy Turning Off the Power □ Turn the power OFF at the switch and □ Add caulking on the three holes of the gasket where fusebox or the circuit breaker. the wires were passing through. Hang the canopy (AA) fixture on the mounting plate (BB) and lock the canopy (AA) towards the mounting plate (BB) hooks.
- Page 6 Questions, problems, missing parts? Before returning to the store, call Commercial Electric Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
