Summary of Contents for M2SYNTH VC Panner Mixer 137

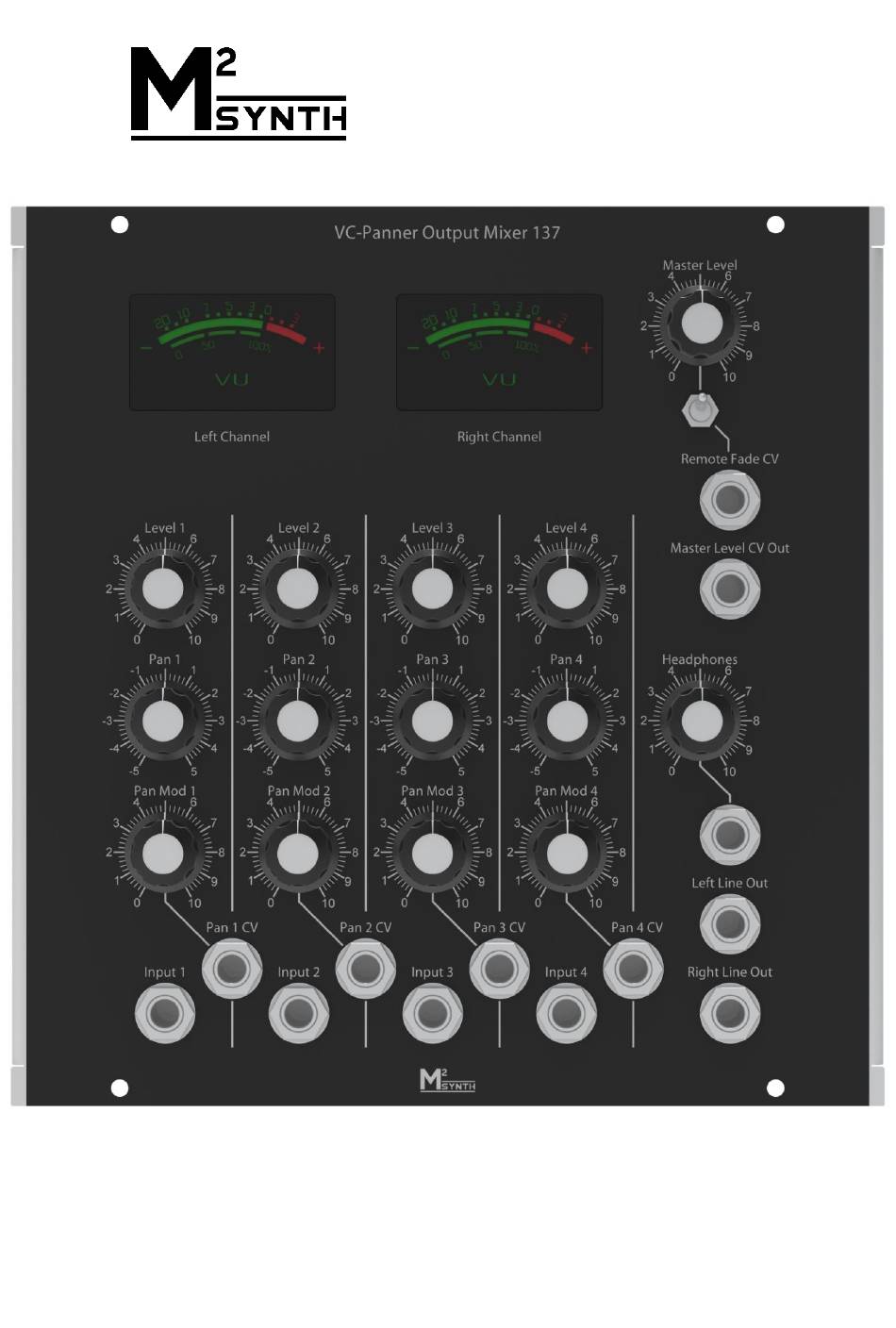

- Page 1 VC Panner Mixer 137 Kit Assembly Instructions VC Panner Mixer 137 V1b...
- Page 2 A100k Pots Long Shaft 7216-726 Pack of 6 A100k Pots Short Shaft 7216-756 Pack of 6 KM20B Knobs 7212-114 Pack of 14 MU Knobs 7219-114 Pack of 14 General Assembly Guidance Booklet S-7216-001-d Circuit Schematic S-7216-001-d 3 Sheets VC Panner Mixer 137 V1b...
- Page 3 We suggest attaching the adhesive pads to the PCB first and then bringing the VU meters down into position. The VU meter LEDs polarity is not identified on earlier revisions of the PCB so this photo shows their orientation by looking at their internal construction. VC Panner Mixer 137 V1b...
- Page 4 Supply current: J1 +30mA / -30mA, J2 +36mA / -30mA Input signal level +/-5V 0-10V control voltages Main PCB dimensions 175.26 x 151.424mm Need tech support, post questions on our forum hosted by modwiggler.com VC Panner Mixer 137 V1b...
