Summary of Contents for Mebay GSCloud DT1000
- Page 1 ® DT1000 GSCloud Monitoring Communication Module User Manual DT1000 GSCloud Monitoring Communication Module User Manual...
- Page 2 ® DT1000 GSCloud Monitoring Communication Module User Manual Software Version Version Date Note V1.0 2020-09-1 Original release. Chongqing Mebay Technology Co.,Ltd Add: No6-2,Building 4, Gangan Rd, Jiangbei District, Chongqing. Tel：+86-23-6869 3061 Fax：+86-23-6765 8207 Web：http://www.mebay.cn http://www.cqmb.cn E_mail：sales@mebay.cn...
- Page 3 ® DT1000 GSCloud Monitoring Communication Module User Manual Symbol Description Symbol Description Remind operators to operate correctly, otherwise it may cause the equipment not to work correctly. Note It is indicated that potential hazards can damage equipment without proper precautions. Be care It is indicated if appropriate preventive measures are not taken, potentially dangerous situations may result in death, serious...
- Page 4 ® DT1000 GSCloud Monitoring Communication Module User Manual Warning 1. The installation of this equipment must be carried out by professionals. 2. When installing and operating the controller, please read the entire instruction manual first. 3. Any maintenance and commissioning of the equipment must be familiar with all the equipment Be Care 1.
- Page 5 1. All rights reserved. No part of this duplication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or others) without the written permission of the copyright holder. 2. MEBAY Technology reserves the rights to change the contents of this document without prior notice.
- Page 6 ® DT1000 GSCloud Monitoring Communication Module User Manual Summary DT1000 is the data acquisition and communication module of GSCloud ® generator set cloud control system developed by our company, which is WIFI/ET version. Its main function is to connect the generator set controller to the interconnection network, to realize the computer PC terminal and mobile phone APP remote real-time monitoring generator set, to realize the remote control unit, remote data monitoring, remote fault diagnosis, unit position real-time positioning,...
- Page 7 ® DT1000 GSCloud Monitoring Communication Module User Manual ETHERNET RJ45 10/100Mbps self-adaption network interface Switch value input 1 Available if connecting with Battery - Switch value input 2 Available if connecting with Battery - -25-65℃ Working condition -40-85℃ Storage condition Overall dimension 106.5mm*74mm*31mm Weight...
- Page 8 ® DT1000 GSCloud Monitoring Communication Module User Manual Installation instruction 35mm guideway installation: Screw (M4) installation:...

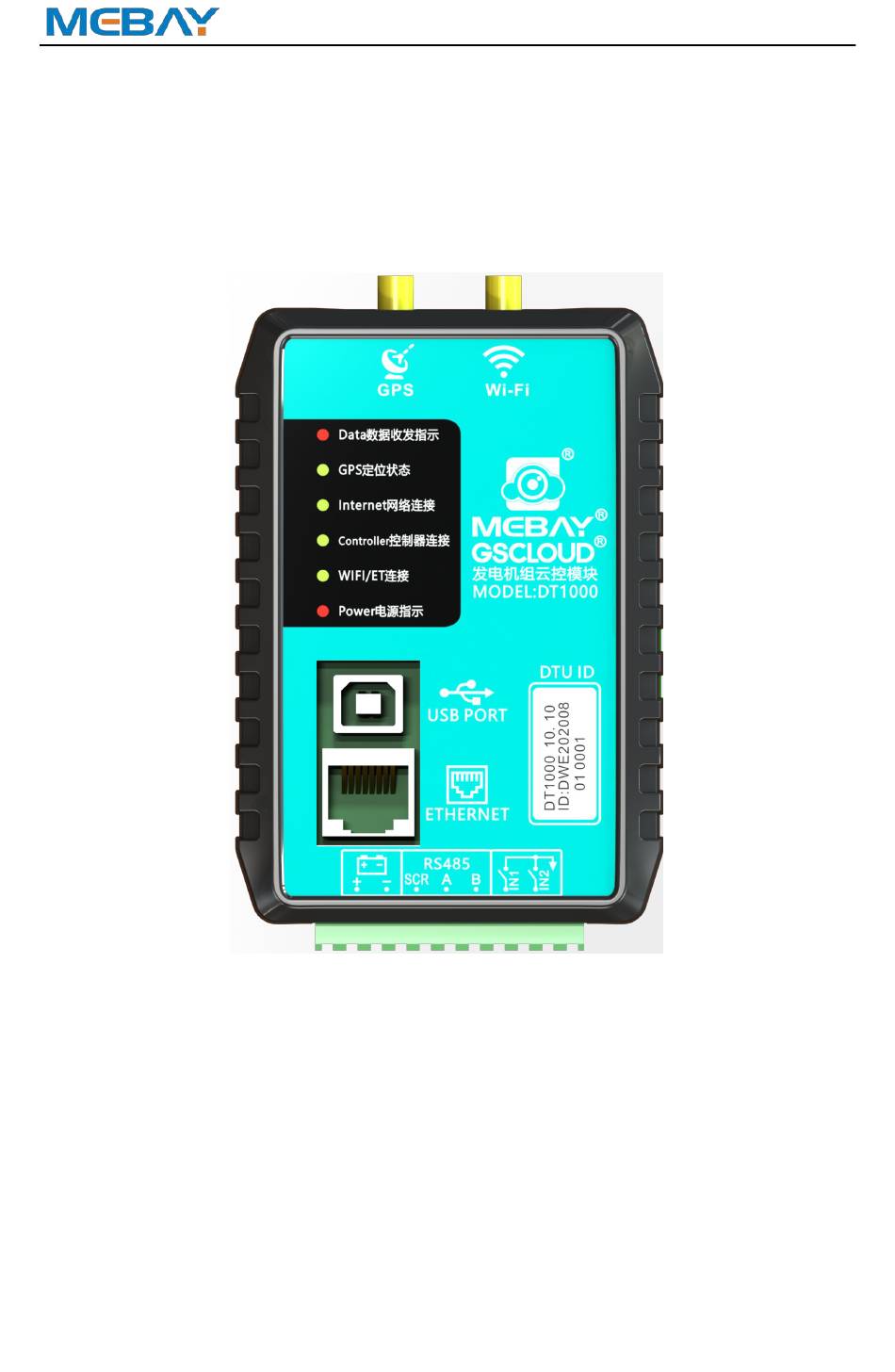

- Page 9 ® DT1000 GSCloud Monitoring Communication Module User Manual Panel and display Instruction USB-B Ethernet Panel instruction Indicator name Main function DTU sends data in red for LED lights and green for LED lights when Data receiving data. The GPS module successfully obtains the positioning information and lights it up.
- Page 10 ® DT1000 GSCloud Monitoring Communication Module User Manual RS485-B 0.5mm Aux. Input 1 Ground connected is active (B-). 0.5mm Aux. Input 2 Ground connected is active (B-). 0.5mm USB Device Type B USB port Ethernet RJ45 RJ45 interface network cable Operation ...
- Page 11 ® DT1000 GSCloud Monitoring Communication Module User Manual WIFI port ：Connect the WIFI IPX antenna to the Antenna port (50Ω/SMA female socket); Support 802.11b/g/n standard. ETHERNET RJ45: Connect the network cable to the RJ45 network interface. GPS port：When using GPS positioning function, GPS antenna is connected to DTU module, antenna port: 50 Ω...
- Page 12 ® DT1000 GSCloud Monitoring Communication Module User Manual Typical Wiring Diagram DT1000 IN1 IN2 Extend Module RS485 Parameter list. 1. GPS Parameter Range (default) Notes GPS functional 0:manual input; 0-1(1) enable 1:GPS module acquisition position Set Longitude -180°-180° (0.00000) Set latitude -90°-90°...
- Page 13 DC4xDR series, DC5xDR DSE6120 series, DC6xDR series and DC7xDR HGM6120 series DC8XDR, DC9XDR generator HGM6110 controller produced by MEBAY. DC18D It also supports MEC20 Thomson series DC8/9XD series and other types of controllers. 6. Extended module setting Parameter...
- Page 14 ® DT1000 GSCloud Monitoring Communication Module User Manual temperature, and disable this alarm when set to the minimum value. When the ambient temperature is lower Alarm value of too than this setting value, upload the alarm low ambient -30-50(4) ℃ information of the environment temperature temperature is too low, set to the maximum value to...
