KNX/EIB BUS
Sensor Product Manual
4-in-1 sensor (illumination infrared mobile temperature and humidity)
Manual-Ver2.1
Model：SNR0404

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SNR0404 and is the answer not in the manual?

Questions and answers

Summary of Contents for SEAWIN Electricals SNR0404

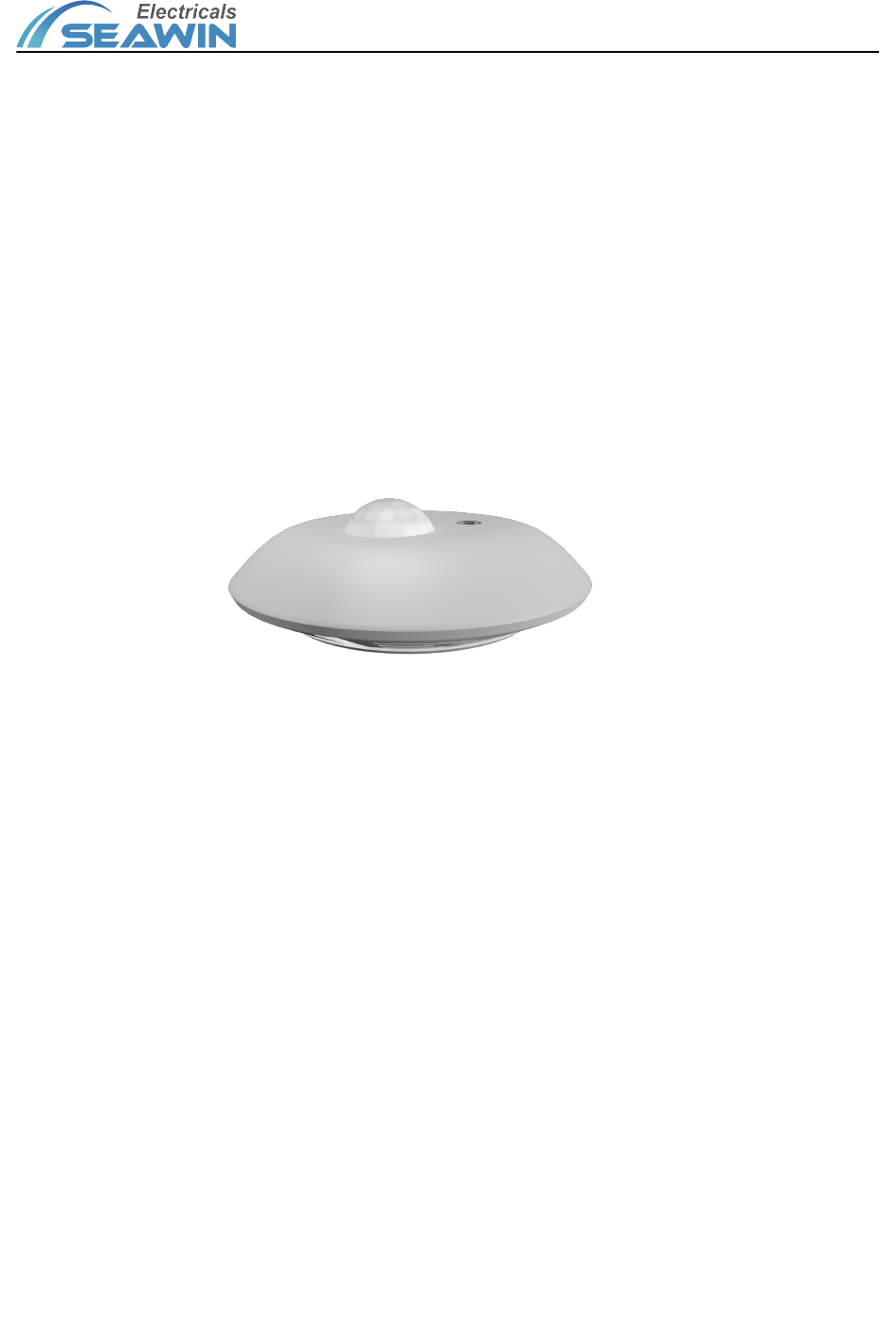

  • Page 1 KNX/EIB BUS Sensor Product Manual 4-in-1 sensor (illumination infrared mobile temperature and humidity) Manual-Ver2.1 Model：SNR0404...

  • Page 2: Table Of Contents

    KNX/EIB BUS Sensor Product Manual Content 1.Summary ......................................1 2. Product and Feature Overview .............................. 1 3.Specification ....................................1 4. Dimensional Drawings, Wiring Diagrams and Sensing Schematics ........错误!未定义书签。 5. Parameter setting and communication object description ..................2 5.1 Overview of App Features ............................2 5.2 Function parameter setting ............................

  • Page 3: Summary

    KNX/EIB BUS Sensor Product Manual Summary This manual provides the user with detailed technical information on the 4-in-1 sensor, including installation and programming details, and explains how to use the 4-in-1 sensor based on practical examples, which are in-ceiling mounted. There are many applications for the four-in-one sensor, which can be used in applications related to brightness, humidity, temperature, and infrared movement requirements;...

  • Page 4: Parameter Setting And Communication Object Description

    KNX/EIB BUS Sensor Product Manual Relative humidity max 90% 4. Dimensions, wiring diagrams and induction diagrams Dimension Wiring Induction schematic H: range size 2.5m~3m, recommended value: 2.7m D1: Range: 4m~5m, high sensitivity range D2: Range: 5m~7m, maximum sensing range 5. Parameter setting and communication object description 5.1 Overview of App Features Illumination function This function is mainly used for lighting, such as outdoor lighting.
  • Page 5 KNX/EIB BUS Sensor Product Manual automatically sense the current illuminance to achieve automatic When it detects that the brightness in the house is the set limit value, the constant illuminance control function can be completed through the connected dimmer Mobile function The movement function mainly implements the action when the sensor senses that someone is moving, and ends the action when no person is sensed for a period of time.

  • Page 6: Function Parameter Setting

    KNX/EIB BUS Sensor Product Manual 5.2 Function parameter setting The following takes ETS5 as an example to set parameters in ETS5. 5.2.1 General Open the parameter setting interface of the illuminance infrared motion sensor in ETS5, as shown in Figure 5.2.1. The "General"...
  • Page 7 KNX/EIB BUS Sensor Product Manual Figure 5.2.2 Specification Description Calibration This parameter is only used for the calibration of the brightness value when the brightness value is obtained from the inside, the options are: with correction value, via object. When with correction value is selected, the parameter correction value (lux) appears, and the range that can be filled is -200~200.
  • Page 8 KNX/EIB BUS Sensor Product Manual Figure 5.2.3 Specification Description Blocking function Block function, options: "Enabled", "Disabled". When "Enabled" is selected, the parameter "blocking value" will appear, options: "blocking=1, unblocking=0", "blocking=0, unblocking=1", blocking value after voltage recovery, options: "blocking", "unblocking", "as before voltage failure". Threshold value（lux）...

  • Page 9: Motion Detector

    KNX/EIB BUS Sensor Product Manual output "cyclic transmission" is selected, the parameter "cyclic time for output" appears, the options are: "1seconds", "2seconds"... “120minutes” 5.2.3 Motion detector “Motion detector” The parameter setting interface is shown in Figure 5.2.4 Figure 5.2.4 Specification Description System stability time：40s This parameter indicates that the device startup time is 40s...
  • Page 10 KNX/EIB BUS Sensor Product Manual Figure 5.2.5 Specification Description Device works as Device function mode, options: "a single device", "as master device". When "as master device" is selected, the parameter "input value as master" appears, and the options are "on" and "off". Function for pausing Pause operation function, options: "enable", "disable".
  • Page 11 KNX/EIB BUS Sensor Product Manual time in seconds Overwrite Override duration by object, optional: "yes", "no". follow-up time via object Motion This parameter is used to set whether to recalculate the duration when the motion sensing trigger is re-triggered. The options are: “recalculate follow-up time when trigger”,“not during recalculate follow-up time when trigger”...

  • Page 12: Temperature Detector

    KNX/EIB BUS Sensor Product Manual Specification Description Output value as slave Output value as slave device (options: "on", "off") Dead time after This parameter is used to perform no operation after a certain period of time after the triggering（s） slave sensor is triggered (can be filled with "0-255") 5.2.4 Temperature detector Temperature detector”...
  • Page 13 KNX/EIB BUS Sensor Product Manual Figure 5.2.8 Specification Description Blocking function Block function, options: "Enabled", "Disabled". When "Enabled" is selected, the parameter "blocking value" will appear, options: "blocking=1, unblocking=0", "blocking=0, unblocking=1", blocking value after voltage recovery, options: "blocking", "unblocking", "as before voltage failure". Threshold value（lux）...

  • Page 14: Humidity Detector

    KNX/EIB BUS Sensor Product Manual Transmission mode Output transmission mode, options: "one-time transmission", "cyclic transmission". output When "cyclic transmission" is selected, the parameter "cyclic time for output" appears, the options are: "1seconds", "2seconds"..."120minutes". 5.2.5 Humidity detector humidity detector” The parameter setting interface is shown in Figure 5.2.9 Figure 5.2.9 Specification Description...
  • Page 15 KNX/EIB BUS Sensor Product Manual Figure 5.2.10 Specification Description Blocking function Block function, options: "Enabled", "Disabled". When "Enabled" is selected, the parameter "blocking value" will appear, options: "blocking=1, unblocking=0", "blocking=0, unblocking=1", blocking value after voltage recovery, options: "blocking", "unblocking", "as before voltage failure". Threshold value（lux）...

  • Page 16: Device Status Feedback

    KNX/EIB BUS Sensor Product Manual 5.2.6 Device status feedback This parameter is used for the status feedback of the device, the options are: "Enabled", "Disabled"; when "Enabled" is selected, the parameter "cycle time for feedback" appears, the options are: "1 seconds", "2 seconds"... "120 minutes". Communication object description The communication object is the medium through which the device communicates with other devices on the bus, that is, only the communication object can perform bus communication.

  • Page 17: Mobile Sensing Function Communication Object

    KNX/EIB BUS Sensor Product Manual is selected as "Yes", and a 2-byte command can be sent through this communication object to perform the illumination threshold of the corresponding channel. rewrite. 4,10 External brightness value A/B Value in lux 2bytes C, R, W, T （input）...
  • Page 18 KNX/EIB BUS Sensor Product Manual sensor on the channel Motion sensor trigger lock lock/unlock 1 bit C, R, W, T This communication object is enabled when "Enable" is selected in the parameter "function for locking internal trigger". Sending "0"/"1" commands through this communication object can block or unblock the internal trigger function of motion sensing.

  • Page 19: Communication Object Of Temperature Function

    KNX/EIB BUS Sensor Product Manual Motion，slave output On/Off 1 bit C, R, W, T This communication object is enabled when "slave mode" is selected in the parameter "device work as", and outputs "0"/"1" to the host device through this communication object. 6.3 Communication object of temperature function Temperature value (output) 2-byte value...

  • Page 20: Humidity Function Communication Object

    KNX/EIB BUS Sensor Product Manual 6.4 Humidity function communication object Humidity value (output) 2-byte value 2 bytes C, R, W, T This communication object is enabled when "Humidity control A" in the parameter of "Humidity detector" selects "Enabled", the communication object is enabled when "yes" is selected in the parameter "send brightness value", this communication object can Directly indicate the current ambient humidity value.

  • Page 21: Safe Use And Maintenance

    KNX/EIB BUS Sensor Product Manual Device status 1-byte value 1byte C, R, W, T This communication object is enabled when "enabled" is selected in the parameter "device status feedback", and this communication object can directly indicate the current status of the device. 7.
