1 Overview
The Cypress Envirosystems Wireless Pneumatic Thermostat (WPT) retrofits an
existing pneumatic thermostat to provide Direct Digital Control (DDC) like zone control
functionality at a fraction of the time and cost without disturbing occupants.
The WPT enables remote monitoring of zone temperature, branch pressure, remote
control of setpoints, and programmable setback or setup of the pneumatic HVAC
systems. It also enables integration with utility Demand Response programs.
The WPT can be integrated with an existing Building Management System via
BACnet/IP. As a result, the WPT helps a building owner and tenants save energy by
implementing indoor temperature policies, improve comfort, and reduce the
maintenance cost of the legacy pneumatic HVAC systems.
1.1
Components
The WPT Server (Green Box) and Gateway (Blue Box) includes the following
components:
Server:
•
Green Box Server (GBC)
•
Wall mounting bracket
•
Power supply with wall mounting bracket (requires 120VAC outlet)
Gateway:
•
Blue Box Gateway
•
Power supply (requires 120VAC outlet)
•
900 MHz antenna
•
Ethernet cable (to connect to Server)
1.2
Prerequisites for Installation
The WPT Green Box Server and Blue Box Gateway, requires a 120VAC outlet for
power. Additionally, the WPT Server can communicate to a Building Automation
System (BAS) using BACnet/IP. This communication requires an ethernet connection
between the BAS and WPT Server, ideally with a dedicated static IP for the WPT
Server.

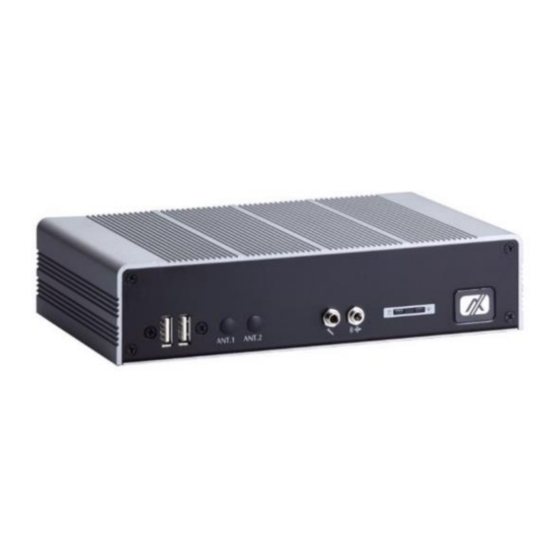

Figure 1: Server (Green Box) and Gateway (Blue Box)
WPT Gateway and Server
Quick Start Guide
Document No. 910-00029-01, Rev 02
Page 1 of 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Cypress Envirosystems WPT
- Page 1 It also enables integration with utility Demand Response programs. The WPT can be integrated with an existing Building Management System via BACnet/IP. As a result, the WPT helps a building owner and tenants save energy by implementing indoor temperature policies, improve comfort, and reduce the maintenance cost of the legacy pneumatic HVAC systems.
- Page 2 WPT Gateway and Server Quick Start Guide Document No. 910-00029-01, Rev 02 Additionally, a setup file (csv format) with all the WPTs will need to be edited. This setup file will be used to configure both the LoRa gateway and the server. Additional details are given in Section 2.2.
- Page 3 Setting up the Server and Gateway with the list of installed WPTs Mounting and Initial power-up The WPT LoRa Gateway and Server can be wall-mounted using the included wall- mounting tabs. Once mounted to the wall, the two devices must be connected with ethernet, power and the antenna.
- Page 4 LoRa Server (LoRa COM Device Importer). 1. For each WPT, add an entry into the csv setup file. This setup file can be edited in any text editor. A sample version of this file is located on the server (c:\WPT\Cypress_WPT_Info_OTAA.csv).
- Page 5 Quick Start Guide Document No. 910-00029-01, Rev 02 Figure 4: Sample setup file contents 2. From the WPT server, launch “LoRa_COM_DeviceImporter.exe” by double- clciking the shortcut at the Desktop. Figure 5: LoRa COM Device Importer 3. Click on “Select Device Info File to View”.
- Page 6 Quick Start Guide Document No. 910-00029-01, Rev 02 Figure 6: Select the WPT setup file 5. Click “Add to Gateway”. The display will update with the number of new devices to be added along with the message “Saving completed!” when it is finished.
- Page 7 WPT Gateway and Server Quick Start Guide Document No. 910-00029-01, Rev 02 Figure 7: Successful setup of Gateway and Server (GBC) The LoRa server and gateway are now setup. The system is ready for WPT installation. Page 7 of 8...
- Page 8 WPT Gateway and Server Quick Start Guide Document No. 910-00029-01, Rev 02 5883 Rue Ferrari San Jose, CA 95138, USA info@cypressenvirosystems.com support@cypressenvirosystems.com Phone: +1 (408) 943-2800 Page 8 of 8...
