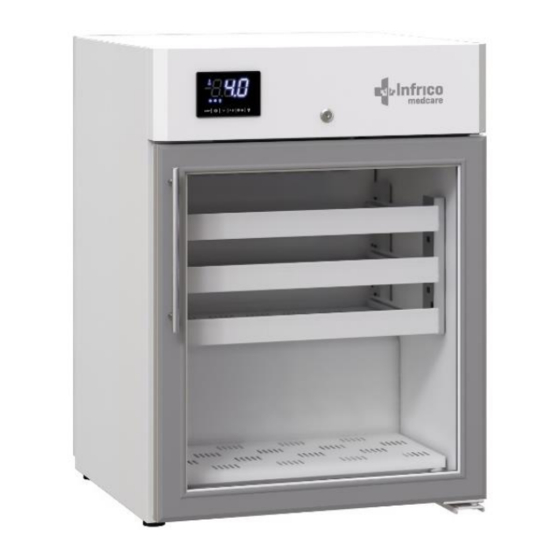

- Page 1 Cabinets Pharma Care Series User Manual and Warranty...
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ............................1 Intended use ............................2 SAFETY INSTRUCTIONS ..........................3 2.1 Symbols ................................3 LABELLING ..............................4 Technical label ............................4 RECEIPT AND INSPECTION ..........................5 INSTALLATION .............................. 5 Location ..............................5 Environmental operating conditions....................... 6 Environmental conditions for transportation and storage..............6 Unpacking .............................. -
Page 4: Introduction
This product has been manufactured under strict quality controls and meets all the requirements established by Infrico. Each unit has been tested and its quality is ensured before being shipped. This equipment has been manufactured with recyclable materials, by means of an environmentally friendly production process. -
Page 5: Intended Use
Please read this manual carefully before installing your new device to become familiar with all of its advantages. OBLIGATION! This device must be used only for the purpose described in this manual. Intended use Our equipment is designed for the storage and preservation of pharmaceutical products at a temperature range of 2 ºC to 8 ºC. -
Page 6: Safety Instructions
2. SAFETY INSTRUCTIONS In this manual and on the labels of this product, the terms Warning and Caution convey the following meaning: • Warning: A potentially hazardous situation which, if not avoided, could result in serious injury or death. • Caution: A potentially hazardous situation which, if not avoided, may result in minor or moderate injury or damage to equipment. -
Page 7: Labelling
PROHIBITION BATTERY GROUNDING 3. LABELLING In our equipment, labels are attached to the inside of the products. Their exact location is the top inner left side. 3.1 Technical label... -
Page 8: Receipt And Inspection
RECEIPT AND INSPECTION • All Infrico products are factory tested to assess their quality and performance and are shipped free of defects. • When you receive your device, it should be carefully examined for any damage that may have incurred during transportation. -
Page 9: Environmental Operating Conditions
WARNING: Infrico does not recommend knocking the unit forward, sideways or backward. However, if this occurs, you must ensure that the unit remains in an upright position for at least 24 hours before connecting it, so that the compressor oil returns to the compressor. -
Page 10: Battery
WARNING!: If the hose or the peg are altered in any way, they may constitute a serious hazard. Any alteration of these components shall void the warranty. WARNING: Devices connected to an extension cord are not covered by Infrico's warranty. WARNING: The power cable can only be replaced by an authorized technical support service provider. -
Page 11: Levelling
WARNING!: Disconnect the battery switch after unplugging the equipment or in case of power failure The warranty does not cover battery replacement due to discharge due to this circumstance. WARNING!: For battery replacement see Section 9.2. Levelling It is very important that the device is perfectly levelled for proper operation, so that it drains properly, the doors are aligned, and the unit is not subjected to undue stress. -
Page 12: Rubber Gasket
Optionally, the units can be shipped with non-adjustable wheels for all models. In this case, you must ensure that the floor where the unit will be located is levelled. The front wheel brakes must be locked for stable operation. Rubber gasket To verify that the door is sealed, follow the steps below: Opening the door. - Page 13 Use water with a neutral detergent and dry properly. CAUTION! Do not use a brush, acid, diluent, laundry soap, washing powder or boiling water to clean the device. These may damage the painted surface, as well as the stainless steel surface, or the plastic and rubber components.
-
Page 14: Drawers (Optional In Per07S, Per07G, Per15S, Per15G, Per36S And Per36G)
DRAWERS (OPTIONAL in PER07S, PER07G, PER15S, PER15G, PER36S and PER36G) Removing the Drawers To remove the drawers, complete the following steps: Pull the drawer towards you until the slide rails are fully extended. 2. Press on the back of the side clips to unlock the drawer lock. 3. -
Page 16: Digital Control
DIGITAL CONTROL Front panel The display screen The following icons appear on the screen: FLASHING compressor ON compressor OFF - Compressor protection activated - Setpoint setting Evaporator fan ON Evaporator fan OFF Fan shutdown activated Interior light ON Interior light OFF Interior light activated via digital input... -
Page 17: Unlocking The Keyboard
Auxiliary function 1 Auxiliary function 1 - Auxiliary function 1 via digital input AUX 1 - Auxiliary function 1 via digital input Auxiliary function 2 Auxiliary function 2 - Auxiliary function 2 via digital input AUX 2 - Auxiliary function 2 - delay activated Defrost or pre- - Defrost delay activated dripping activated... -
Page 18: Turning The Equipment On And Off
Press the SET key for 4 seconds: the screen will show the message 'PA'. Press the SET key. Press the up and down keys to enter the password (by default '-19'). Press the Set Key (or do not press for 15 s). The screen will display the message 'SP'. - Page 19 Second compressor check i5 and i6 automatic thermal switch alarm End defrost time alarm manual - Press a key - check d2, d3 and d11 Full SD card alarm manual Free up space in the SD memory or replace the card.
-
Page 20: Temperature Monitoring
TEMPERATURE MONITORING Set Point Control Your unit has been factory set and tested to maintain a chamber temperature of -18°C. For most laboratory applications, you will not need to change the temperature set point. The chamber set point value is calculated according to the cut-off service parameters and a differential. To adjust the set point: 1.- Access the service parameters as shown in section 7.6. -
Page 21: Maintenance, Cleaning, And Care
MAINTENANCE, CLEANING, AND CARE Cleaning Procedure Periodic cleaning of the device To clean the device, follow the instructions below: • Disconnect the equipment from the mains and remove all products stored in it. • Open all doors and allow time for the interior to reach room temperature. Remove all interior accessories and clean them with soap and lukewarm water. -
Page 22: Battery Replacement
• Disconnect the device from the mains. • Remove the back grille from the unit. • On some models, it will be necessary to remove the screws that affix the condensing unit to the skirting board and remove it in order to clean the condenser. -
Page 23: Spare Parts And Technical Support
Spare Parts and Technical Support OBLIGATION!: Make sure the device is disconnected from the mains before carrying out any maintenance or repair work. If there is no recommended technical support service provider in your area, please contact us for a list of technical support service providers. -
Page 24: Troubleshooting
10 TROUBLESHOOTING Many operational issues derive from causes that can be easily eliminated without the need to contact the Technical Support Service. The following list covers several types of issues and how to solve them. ISSUE CAUSE 1. The plug is not connected to the power outlet. The device does not work 2. - Page 25 1. Overloaded unit. 2. Air or non-condensable gases in the system. 3. Condenser dirty. 4. Defective condenser fan. High Condensation Pressure 5. Device located in a too hot area. 6. Obstruction in expansion valve or filter. 7. Discharge valve partially closed. 8.
-
Page 26: Useful Life Of The Equipment
The symbol and the recycling systems described below apply to countries within the European Union and do not apply to countries in other areas of the world. Your Infrico product was designed and manufactured with high quality materials and components that can be recycled and/or reused. -
Page 27: Temperature Chart Recorder (Optional)
12 TEMPERATURE CHART RECORDER (OPTIONAL) All pharmaceutical refrigerators are designed to accommodate a circular chart recorder. The location of the recorder is in the control panel of each equipment in a specific housing for this. Set up: 1) Open the door with the key 2) Raise the boom to 90º... -
Page 28: Warranty
If, exceptionally, the distributor is unable to carry out a repair, the technical support service may authorise the pickup of a machine to be repaired at Infrico S.L.'s premises to then be returned to the client. If the repair is not performed within the warranty period, the client shall be charged for the costs of such repair and transport. -
Page 29: Warranty Certificate
13.1 Warranty certificate User Name: _______________________________________________________ Address: _____________________________________ Phone:________________________ Code City: ________________________________________________ Distributor:_______________________________________________________ Date of Purchase : ____________________________________________________ Model: _________________________ Serial No.: _________________________ Compressor No: __________________________ Signature Seller Signature Purchaser User Name: _______________________________________________________ Address: _____________________________________ Phone:________________________ Code City: ________________________________________________ Distributor:_______________________________________________________ Date of Purchase : ____________________________________________________ Model: _________________________ Serial No.: _________________________ Compressor No: __________________________... - Page 30 Infrico SL. Ctra. De Aguilar a A-318 por Moriles km 15,5 - A-3132 14900 Lucena (Córdoba) Spain T: 00 34 957 59 51 14 F: 00 34 957 59 11 83 info@infricomedcare.com www.infricomedcare.com...
