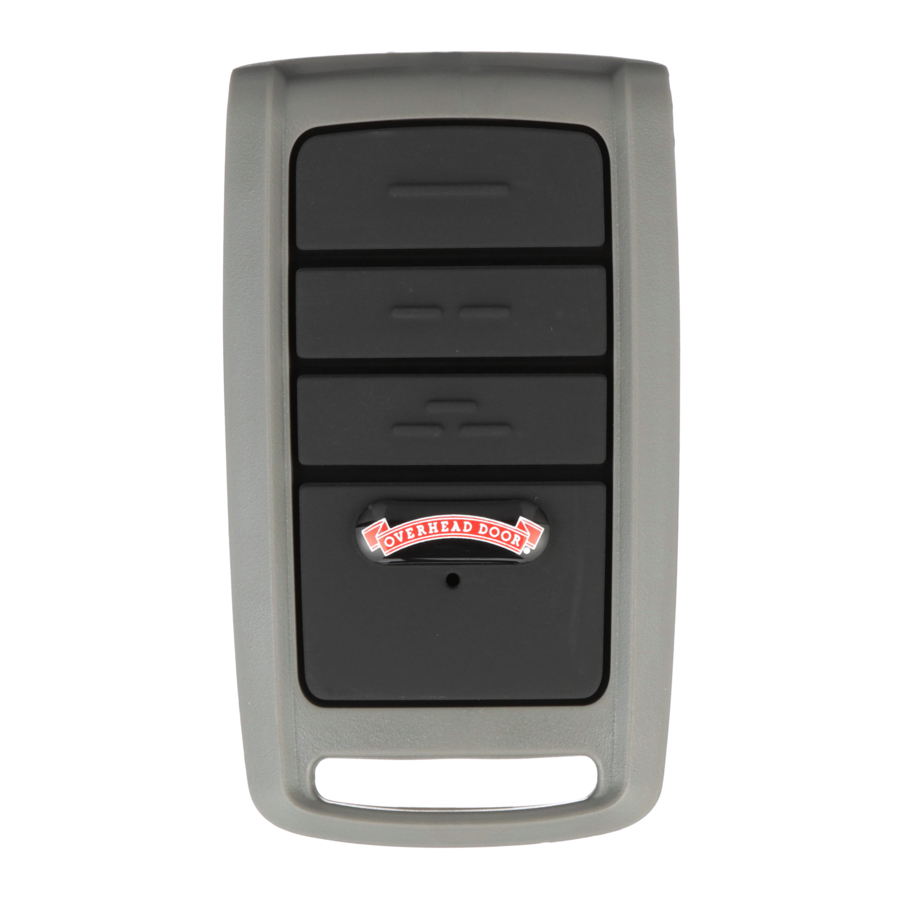

Overhead door 03T - 3 Button Remote Operating Manual

INTRODUCTION

This remote is preset for use with the CodeDodger® 2 Access Security System. The remote сап be configured for use with the CodeDodger® 1 Access Security System. See "Programming to CodeDodger® 1 Overhead Door garage door openers" for instructions оп switching from CodeDodger® 2 to CodeDodger® 1.



Moving Door can cause serious injury or death.

  • Wall Console must be mounted in sight of door, at least 5 feet above floor and clear of moving door parts.
  • Keep people clear of opening while door is moving.
  • Do NOT allow children to play with the Remote or door opener.

If safety reverse does not work properly:

  • Close door then disconnect opener using the manual release handle.
  • Do NOT use Remote or door opener.
  • Refer to Door and Door Opener Owner's Manuals before attempting any repairs.


shock hazard
Electrical Shock can cause serious injury or death.

  • Power cord must be unplugged before attaching any wires.
  • Be sure wire ends do not touch each other or other terminals.

If you have questions or if you need a manual, contact the distributor or manufacturer of the opener.

PROGRAM THE OPENER

  1. PRESS and HOLD 5 seconds
    SEE ВОТН Blue LEDs come
  2. RELEASE ,
    SEEround
    Blue LED
    come
    ON
    PROGRAM THE OPENER - Step 1
  3. PRESS and RELEASE
    SEE long Purple LED
    flashing
    PROGRAM THE OPENER - Step 2
  4. PRESS remote and RELEASE
    (the button you want to program.)
    PROGRAM THE OPENER - Step 3
    SEE long Purple LED come steady ON
  5. PRESS and RELEAS remote button again
    PROGRAM THE OPENER - Step 4
    SEE both LEDs flash Blue and go OFF
  6. PRESS and RELEASE remote button а third time
    Programming is complete. This remote button сап now be used to operate door opener.
    Repeat as necessary for other remotes or buttons оп the same remote.

REMOTE OPERATION

  • Point Remote at the garage door and press the button. Door will move.
  • Press the Remote Button again and the door will stop.
  • Press the Remote Button again and the door will move the opposite way. The door automatically stops at the end of the open or close cycle.

LOST OR STOLEN REMOTE

ALL Remote Codes will be erased from Opener (powerhead) memory.

These instructions are for openers with the type keypad shown below.

  1. Press and hold until both lights come ON bluе. Release button.
    LOST OR STOLEN REMOTE - Step 1
  2. Lights go out and Round BLUE light comes ON.
    LOST OR STOLEN REMOTE - Step 2
  3. Press again and see long purple LED flashing.
  4. Press both and simultaneo-usly on+the powerhead and hold for 5 seconds.
    LOST OR STOLEN REMOTE - Step 3
    Test remote operation. Remote should not activate door opener.
    LOST OR STOLEN REMOTE - Step 4
  5. Reprogram the Opener with the remaining Remote(s) (Repeat PROGRAM THE OPENER Section for each remote).

Follow these instructions to erase remote codes for ALL other Overhead Door openers.

  1. Press and HOLD the Learn Code button on the powerhead for 10 seconds or until Radio Signal LED indicator goes out.
  2. Reprogram the Opener with the remaining Remotes following the programming instructions for that powerhead.
  3. Reprogram the Opener with any Wireless Keypad and other access device using the instructions accompanying those devices.

BATTERY REPLACEMENT

Replace remote battery with а CR 2032 coin cell battery.

  1. Open the remote case using а washer or coin that fits into the slot at the top of the remote.
  2. Replace battery. Match battery polarity with symbols inside battery housing.
  3. Align components and snap case closed.
    BATTERY REPLACEMENT

FEATURES

Other models of Overhead Door garage door openers, remotes, and wireless keypads use CodeDodger® 1 signals to communicate. Remotes provided with this unit will transmit either CodeDodger® 1 or CodeDodger® 2 signals.

If you have... Use this CodeDodger® programming
One or more CodeDodger® 2 openers Use with a maximum 3 different openers CodeDodger® 2
Mixture of openers manufactured between 1997 and 2010 (CodeDodger® 1) and new CodeDodger® 2 openers Use CodeDodger® 2 and/or 1
One or more openers manufactured between 1997 and 2010 (CodeDodger® 1) Use CodeDodger® 1

NOTE: А maximum of 3 different openers сап be programmed to а 3 button remote.

FEATURES

Programming to CodeDodger® 1 Overhead Door garage door openers
The default CodeDodger® 2 setting must be changed to CodeDodger® 1.
(Follow these same steps to change CodeDodger® 1 back to CodeDodger® 2.)

The LED color displayed оп the remote indicates the CodeDodger® mode.
Red
= CodeDodger® 1 / Green = CodeDodger® 2

  1. Select а button оп the remote that has NOT been programmed to the new powerhead.
  2. Press and hold that button for 10 seconds.
    Both Red and Green LEDs come ON and stay ON.
    Programming - Step 1
  3. Press the same button twice to toggle CodeDodger® selection from CodeDodger® 2 to CodeDodger® 1.
    Programming - Step 2
  4. Press the same button again to confirm toggle. The CodeDodger® selection for this button is set to CodeDodger® 1.
    Programming - Step 3
  5. Take the remote to the earlier Overhead Door garage door opener and follow that opener's instructions to program а new remote.
    Repeat for other Overhead Door garage remote(s) as necessary.

For additional information or help contact Customer Service: Call 1-800-929-DOOR
or write:
Overhead Door Corporation 22790 Lake Park Blvd.
Alliance, Ohio
44601 U.S.A.
