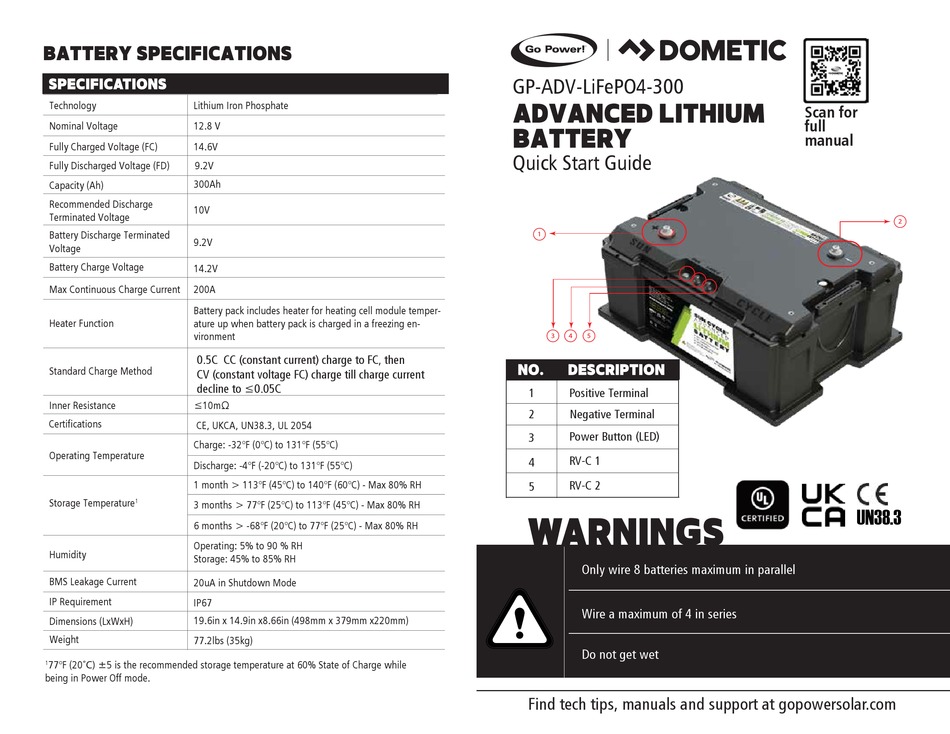

Go Power DOMETIC GP-ADV-LiFePO4-300 Quick Start Manual

BATTERY SPECIFICATIONS
SPECIFICATIONS
Technology Lithium Iron Phosphate
Nominal Voltage 12.8 V
Fully Charged Voltage (FC) 14.6V
Fully Discharged Voltage (FD) 9.2V
300Ah
Capacity (Ah)
Recommended Discharge
10V
Terminated Voltage
Battery Discharge Terminated
9.2V
Voltage
Battery Charge Voltage
14.2V
Max Continuous Charge Current 200A
Battery pack includes heater for heating cell module temper-
Heater Function ature up when battery pack is charged in a freezing en-
vironment
0.5C CC (constant current) charge to FC, then
Standard Charge Method
CV (constant voltage FC) charge till charge current
decline to ≤0.05C
Inner Resistance ≤10mΩ
Certifications
CE, UKCA, UN38.3, UL 2054
Charge: -32°F (0°C) to 131°F (55°C)
Operating Temperature
Discharge: -4°F (-20°C) to 131°F (55°C)
1 month > 113°F (45°C) to 140°F (60°C) - Max 80% RH
Storage Temperature
1
3 months > 77°F (25°C) to 113°F (45°C) - Max 80% RH
6 months > -68°F (20°C) to 77°F (25°C) - Max 80% RH
Operating: 5% to 90 % RH
Humidity
Storage: 45% to 85% RH
BMS Leakage Current
20uA in Shutdown Mode
IP Requirement
IP67
Dimensions (LxWxH) 19.6in x 14.9in x8.66in (498mm x 379mm x220mm)
Weight
77.2lbs (35kg)
77°F (20˚C) ±5 is the recommended storage temperature at 60% State of Charge while
1
being in Power Off mode.
GP-ADV-LiFePO4-300
ADVANCED LITHIUM
BATTERY
Quick Start Guide
1
3 4 5
No. Descrip�on
NO. DESCRIPTION
1 Positive Terminal
2 Negative Terminal
Power Button (LED)
3
RV-C 1
4
RV-C 2
5
WARNINGS
Only wire 8 batteries maximum in parallel
Wire a maximum of 4 in series
Do not get wet
Find tech tips, manuals and support at gopowersolar.com
Scan for
full
manual
2
UN38.3
