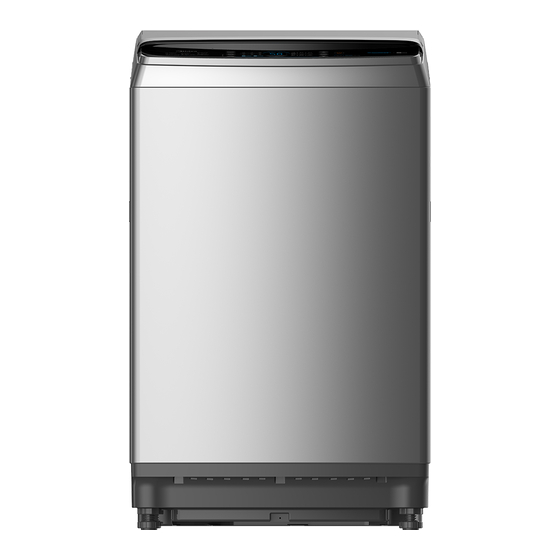

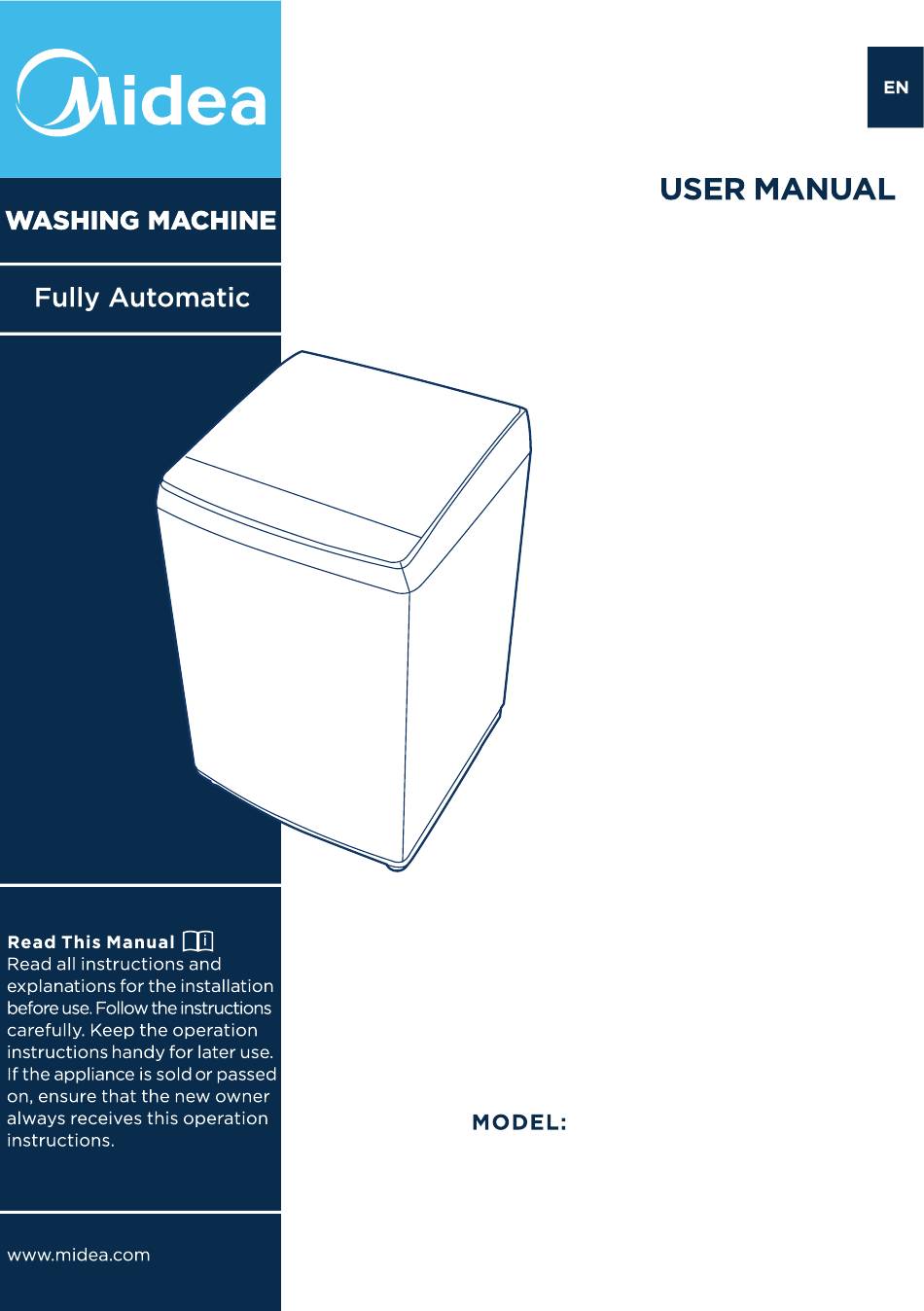

- Page 1 MA200W130 Series...
-
Page 2: Table Of Contents
CONTENTS SAFETY INSTRUCTIONS Safety instructions ............ . INSTALLATION Product description ..........Installation area ............Unpacking the washing machine ....... Installation of drain hose ..........Levelling the washing machine ........Instructions for detergents and softeners.... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS Safety Instructions For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric shock, or to prevent property damage, personal injury or loss of life. • This appliance is not intended for use by persons(including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of... - Page 4 SAFETY INSTRUCTIONS Model Washing Capacity Standard Water Pressure 6.5kg MA200W130 Series 0.03MPa~0.8MPa Explanation of the symbols: Warning! This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it’s avoided.
- Page 5 SAFETY INSTRUCTIONS Warning! The electric shock! • This appliance is for indoor use only. • Do not put washing machine at humid place. • Hands shall not be inserted into running spin-dry tub . • If the spin-dry tub does not stop within 15 seconds after opening the cover , please stop using the machine and have it repaired.
- Page 6 SAFETY INSTRUCTIONS Risk to children! • EN countries: the appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
- Page 7 SAFETY INSTRUCTIONS Caution Installing the product! • This washing machine is for indoor use only. • It isn't intended to be built-in using. • The openings must not be obstructed by a carpet. • Washing machine shall not be installed in bath room or very wet rooms as well as in the rooms with explosive or caustic gases.
- Page 8 SAFETY INSTRUCTIONS • Please do not close the door with excessive forces. • It is forbidden to wash carpets. Operating the appliance! • Before washing the clothes at first time, the product shall be operated in one round of the whole procedures without the clothes inside.
-
Page 9: Installation
INSTALLATION Product description Top lid Drain hose Water inlet valve Control panel Softener, Detergent inlet Frame Cabinet Power case and plug Handle Adjustable foot knob Note! • The product line chart is for reference only, please refer to real product as standard. -
Page 10: Installation Area
INSTALLATION Installation area Warning! • Stability is important to prevent the product from wandering! • Make sure that the product should not stand on the power cord. W> 20mm Before installing the machine, the location characterized follows shall be selected: 1.Rigid, dry, and level surface 2.Avoid direct sunlight 3.Sufficient ventilation... -
Page 11: Installation Of Drain Hose
INSTALLATION Installation of drain hose Warning! Warning! • Do not kink or protract the drain hose. • Position drain hose properly ,otherwise damage might result of water leakage. • If drain hose is too long, do not force it into washing machine as it will cause abnormal noises. -
Page 12: Instructions For Detergents And Softeners
INSTALLATION Instructions for detergents and softeners take out Detergent inlet Softener inlet washing powder inlet Warning! • Please put in washing powder reasonably according to the amount of clothes and the degree of soiling. • If excessive washing powder will produce a lot of foam overflow, there will be washing powder residue when using the rinsing function. -
Page 13: Selection Of Tap
INSTALLATION Selection of tap Please select appropriate tap. Ordinary faucet Screw tap Special washing machine tap Connection of inlet hose, tap and washing machine 1:Connection between ordinary tap and inlet hose. Wall clamp nut 1.Loosen clamp nut to 2.Loosen four bolts 3.Set connecting base 4.Tighten clamp nut on tap and tighten... -
Page 14: Operations
OPERATIONS Preparation before washing Caution! • Before washing, please make sure it’s installed properly. • Before washing it at first time, the washing machine shall be operated in one round of the whole procedures without clothes in as follows. Open tap Plug in Load the door and... -
Page 15: Washing Matters Needing Attention
OPERATIONS Washing matters needing attention • The working condition of the washer should be(0-40)℃.If used under 0℃,the inlet valve and draining system may be damaged. If the machine is placed under condition of 0℃or less, then it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose are not frozen before use. -
Page 16: Control Pane
OPERATIONS Control panel Note! • The chart is for reference only, Please refer to real product as standard. Start/Pause On/Off Press the button to start or pause the Product is switched on or off. washing cycle. Program Option Available according to the laundry type. This allows you to select an additional function and will light when selected. - Page 17 OPERATIONS Option Only for washers having these function Water level Select water level according to clothing categories, degree of soiling and washing habits of customers. Soak/Wash /Rinse /Spin Soak time, Washing time, rinsing times, spinning time and other settings can be selectable. Function Press the button to regulate the Hygiene and Turbo.
-
Page 18: Personalized Setting Of Washing Program
OPERATIONS Personalized setting of washing program Customers can select washing program according to actual demand. Program Program Start Temp. Operations of washing process Wash only Program Option Option Choose the wash flash Set the time Rinse flash Set the tim Program Delay”... - Page 19 OPERATIONS +Rinse+ Soak+Wash Spin Program Option Option Choose the wash flash Set the time Rinse flash Set the times Program Option Option Start Spin flash Set the time Soak flash Set the time Note: There is no soaking function for quick washing and Spin programs .
-
Page 20: Washing Program Table
OPERATIONS Washing program table Program are available according to the laundry type. Only for washers having these function Program Standard fabric washing program, suitable to wash ramie cotton fabric. Normal Wash for once, rinsing for twice, the spin time is a little long. Suitable to wash light stained clothes and clothes in summer. -
Page 21: Maintenance
MAINTENANCE Cleaning and care Warning! • Before your maintenance starts, please unplug the machine and close the tap. Cleaning the cabinet Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use the wet cloth to wipe it off immediately. -
Page 22: Cleaning Drain Pump Filter
MAINTENANCE Cleaning drain pump filter Only for washers having these function Warning! • Be careful of the hot water! • Allow detergent solution to cool down. • Unplug the machine to avoid electrical shock before washing. • Drain pump filter can filter the yarns and small foreign matters from the washing. -
Page 23: Troubleshooting
MAINTENANCE Trouble shooting The start of the appliance does not work or it stops during operation. First try to find a solution to the problem, If not, contact the service centre. Inspection Items Description If the power is off or the fuse is burned out. If the power supply voltage is too low. -
Page 24: Technical Information
MAINTENANCE Technical information Standard Water Pressure 0.03MPa~0.8MPa Power Washing Dimension Including drain hose Rated Model Capacity Weight Supply (W*D*Hmm) (W*D*Hmm) Power 220-240V~, 13.0kg 580x596x965 39kg MA200W130 Series 605x620x965 480W 50Hz 10 24 10 23... - Page 25 16138000A44794...
