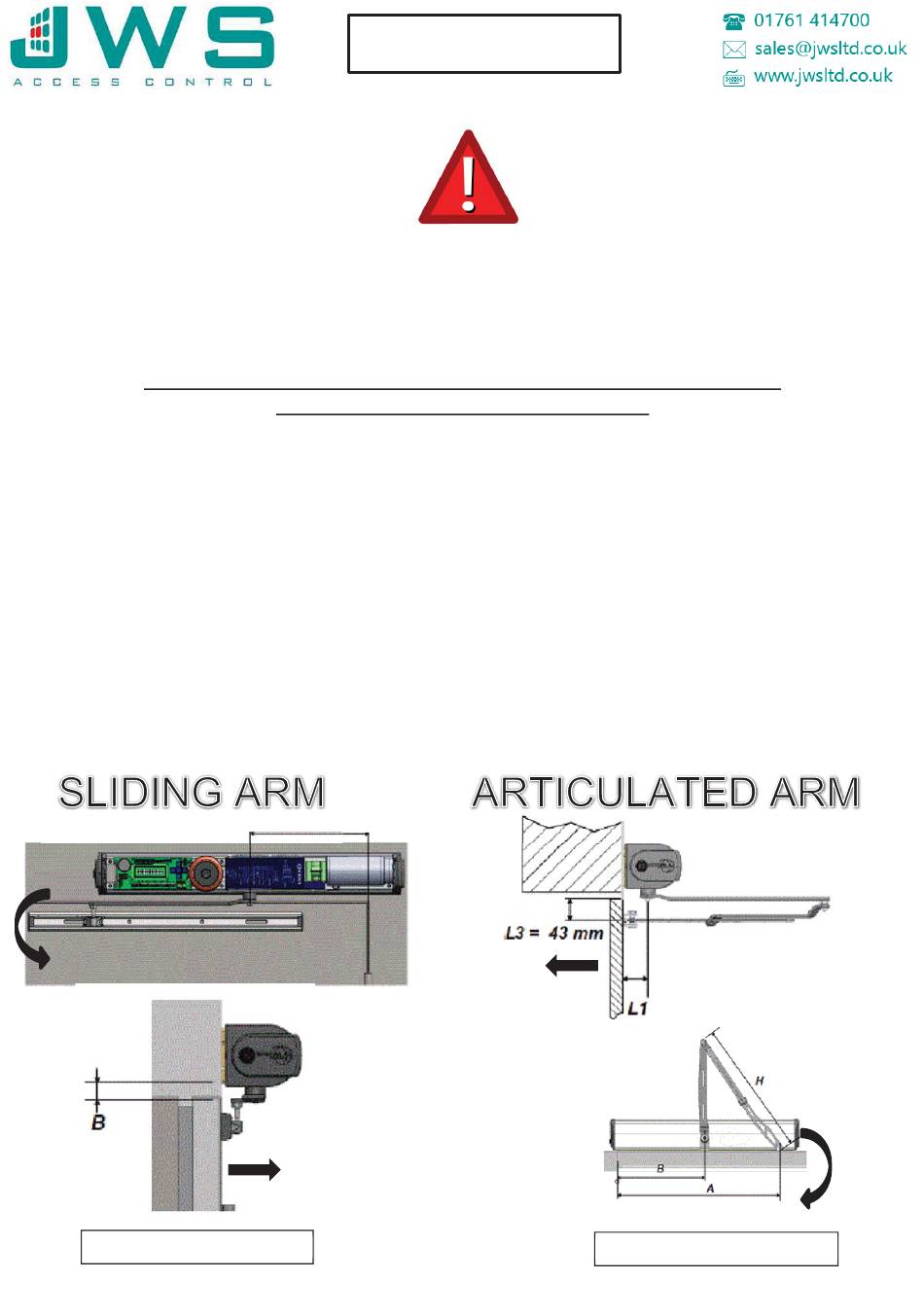

DWSR102U
* IMPORTANT – PLEASE READ BEFORE INSTALLATION! *
Before attempting to fit the DWSR102U, it is important to ensure the following
information matches that of the door you wish to automate.
JWS are always happy to check information/pictures of the door you wish to
automate to check suitability of the operator.
THE DOOR MUST BE LESS THAN 1.5m WIDE, UNDER 200kg, have at least
100mm above the door for mounting and have
NO
closing system fitted in the
frame, door or jamb. If Inward Opening, the Door Face must be flush to the
header (not recessed). If Outward Opening, the reveal depth must be less than
300mm. If Outward opening, the depth of the door
MUST
be below 95mm
(40mm without extender).
ENSURE YOU FIT THE CORRECT ARM FOR THE
DOOR YOU ARE AUTOMATING.
PLEASE SEE PAGE 10/11 OF THE MANUAL FOR ORIENTATION OF THE
OPERATOR TO ENSURE THE SPRING IS INSTALLED CORRECTLY.
FOR INWARD OPENING
FOR OUTWARD OPENING

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DWSR102U and is the answer not in the manual?

Questions and answers

Summary of Contents for JWS DWSR102U

  • Page 1 DWSR102U * IMPORTANT – PLEASE READ BEFORE INSTALLATION! * Before attempting to fit the DWSR102U, it is important to ensure the following information matches that of the door you wish to automate. JWS are always happy to check information/pictures of the door you wish to automate to check suitability of the operator.
  • Page 2 QUICK START GUIDE FOR CDVI DWSR102U Initial Phase: - MAKE SURE ALL EXISTNG CLOSING MECHANISMS HAVE BEEN REMOVED AND REPLACED WITH DUMMY UNITS IF NECESSARY. - Once the Digiway SR has been installed make sure the door can be opened and closed with completely free movement.
